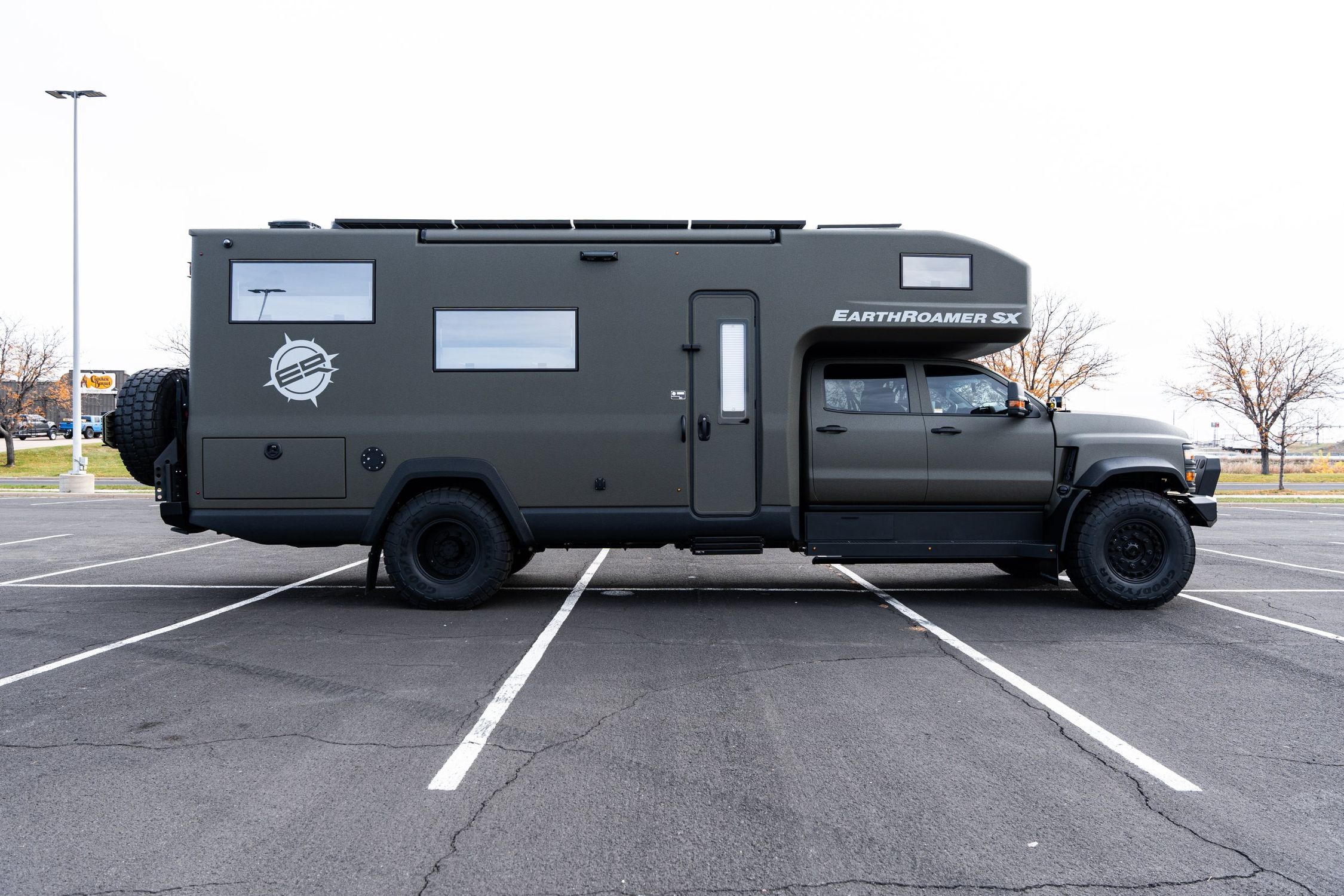

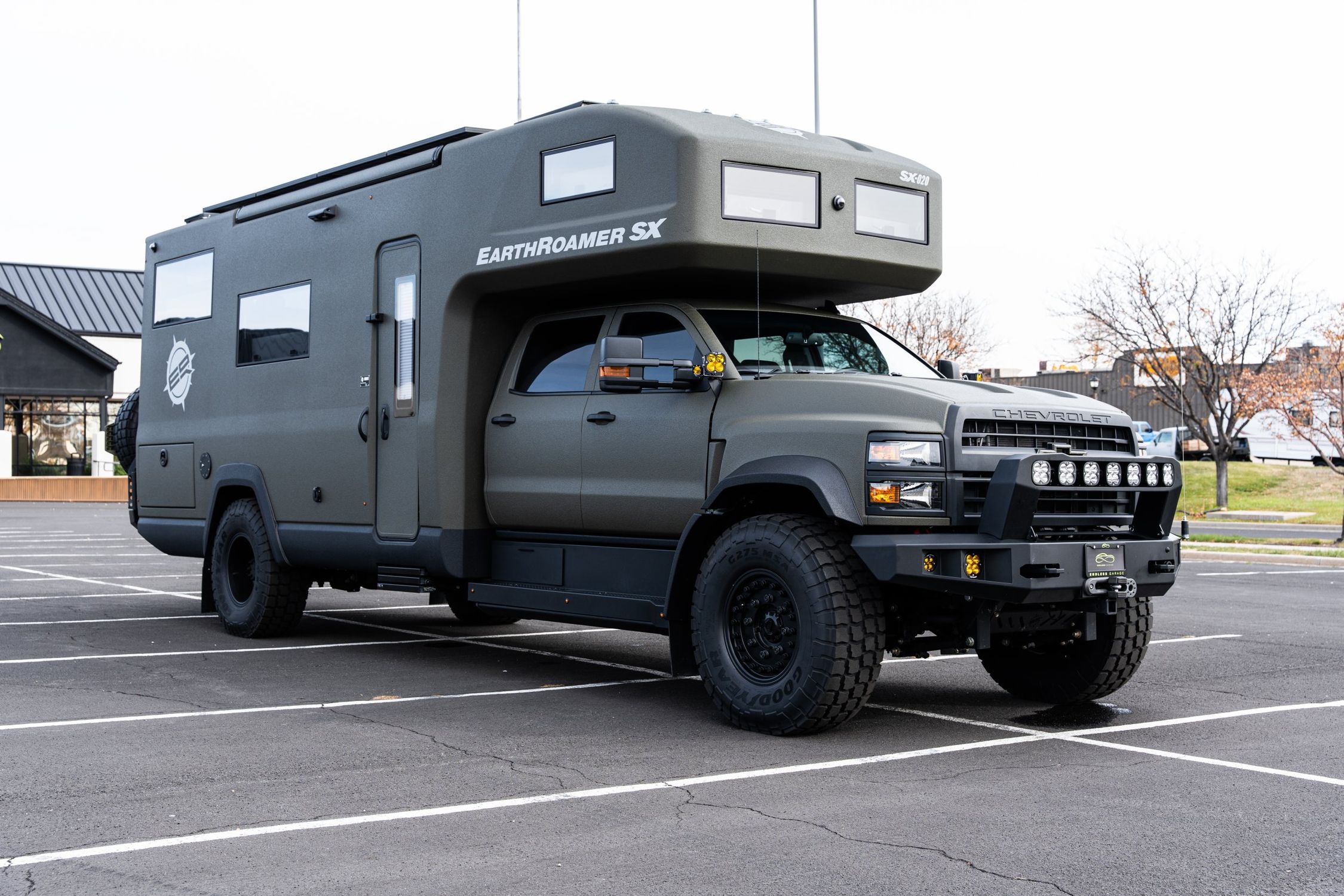

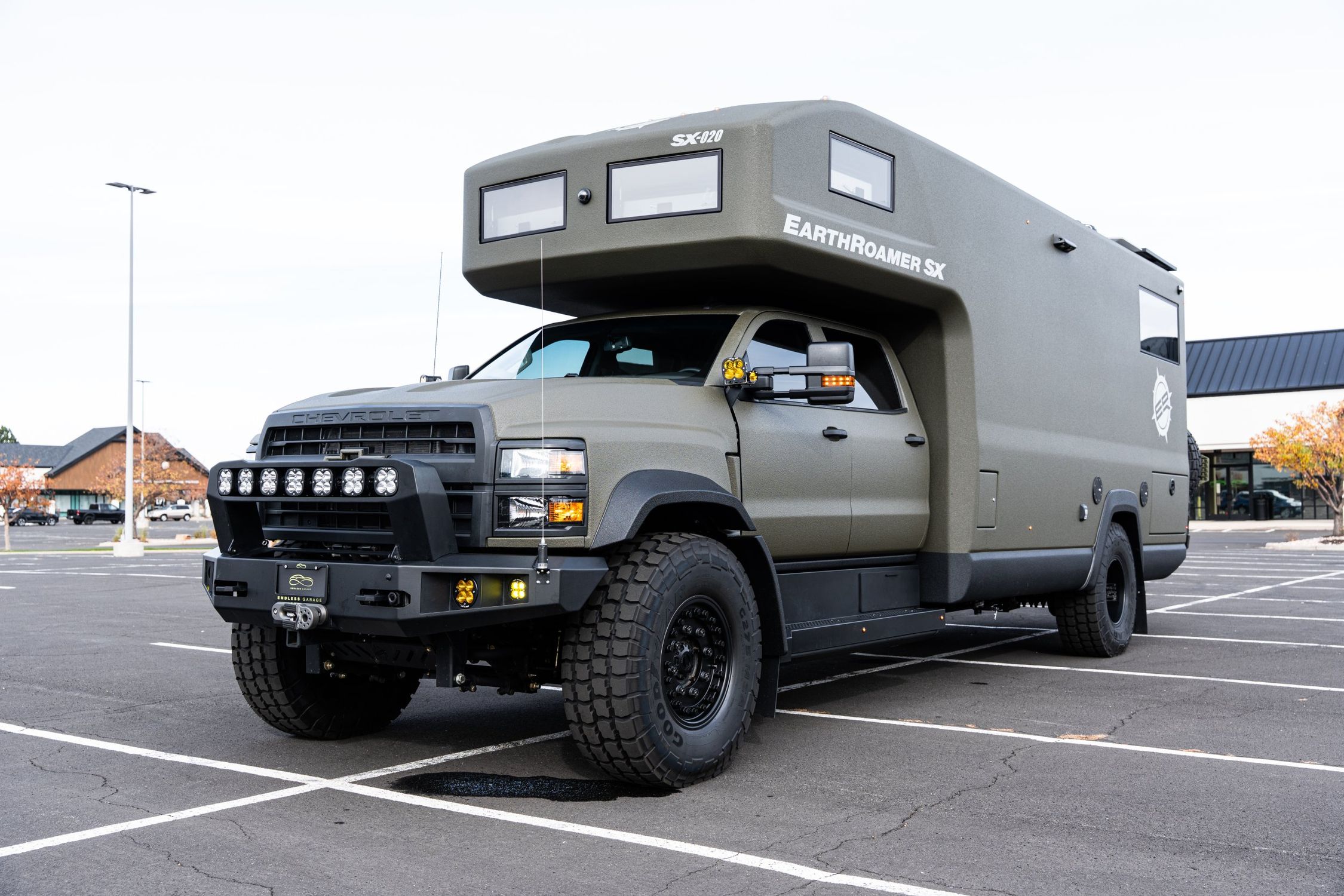

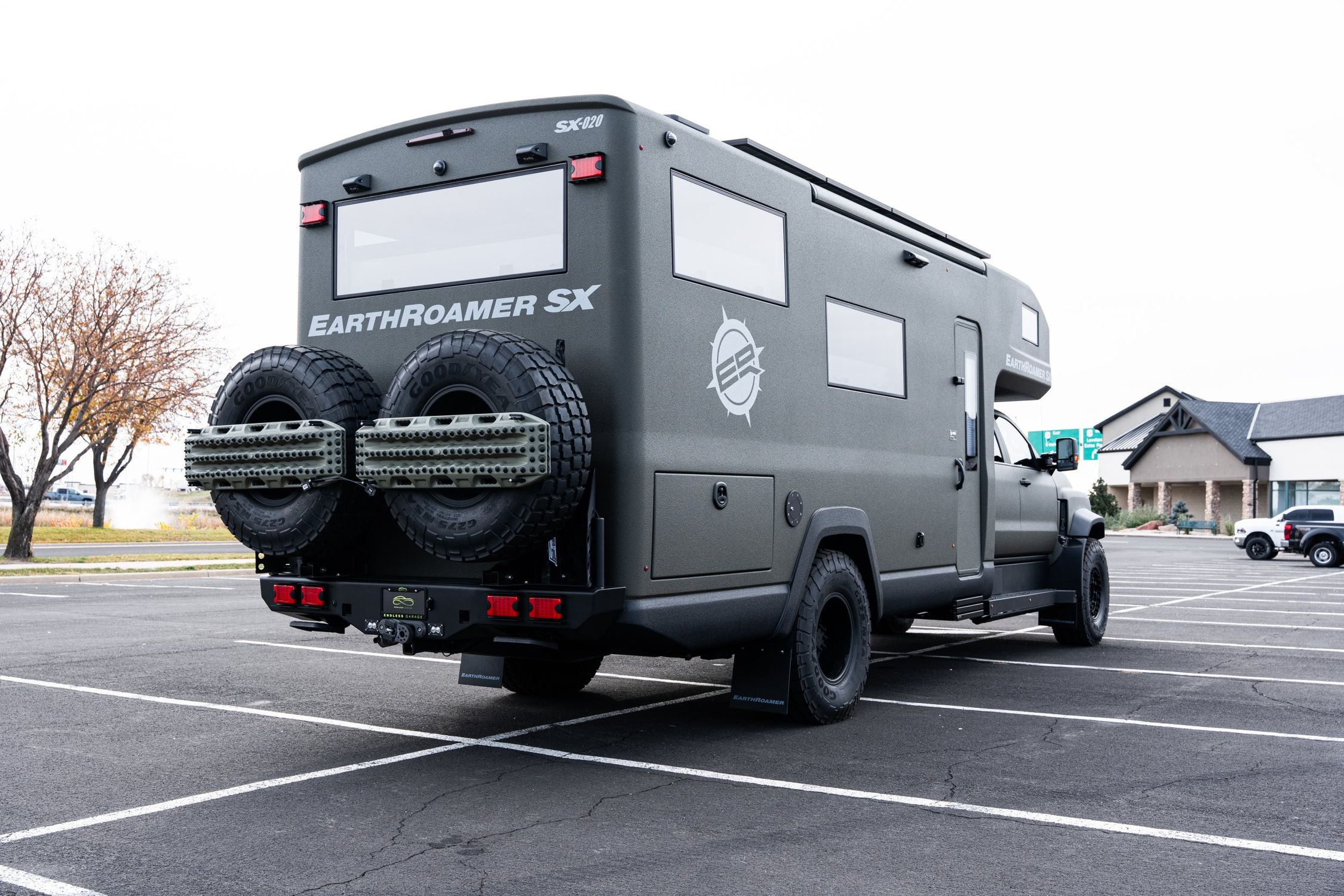

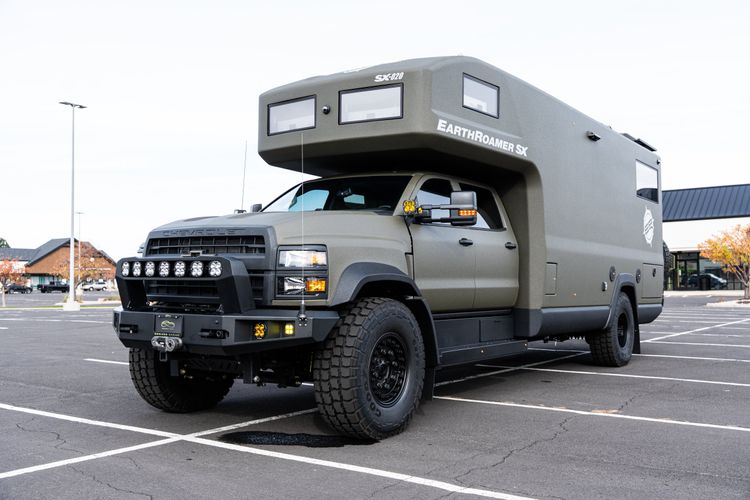

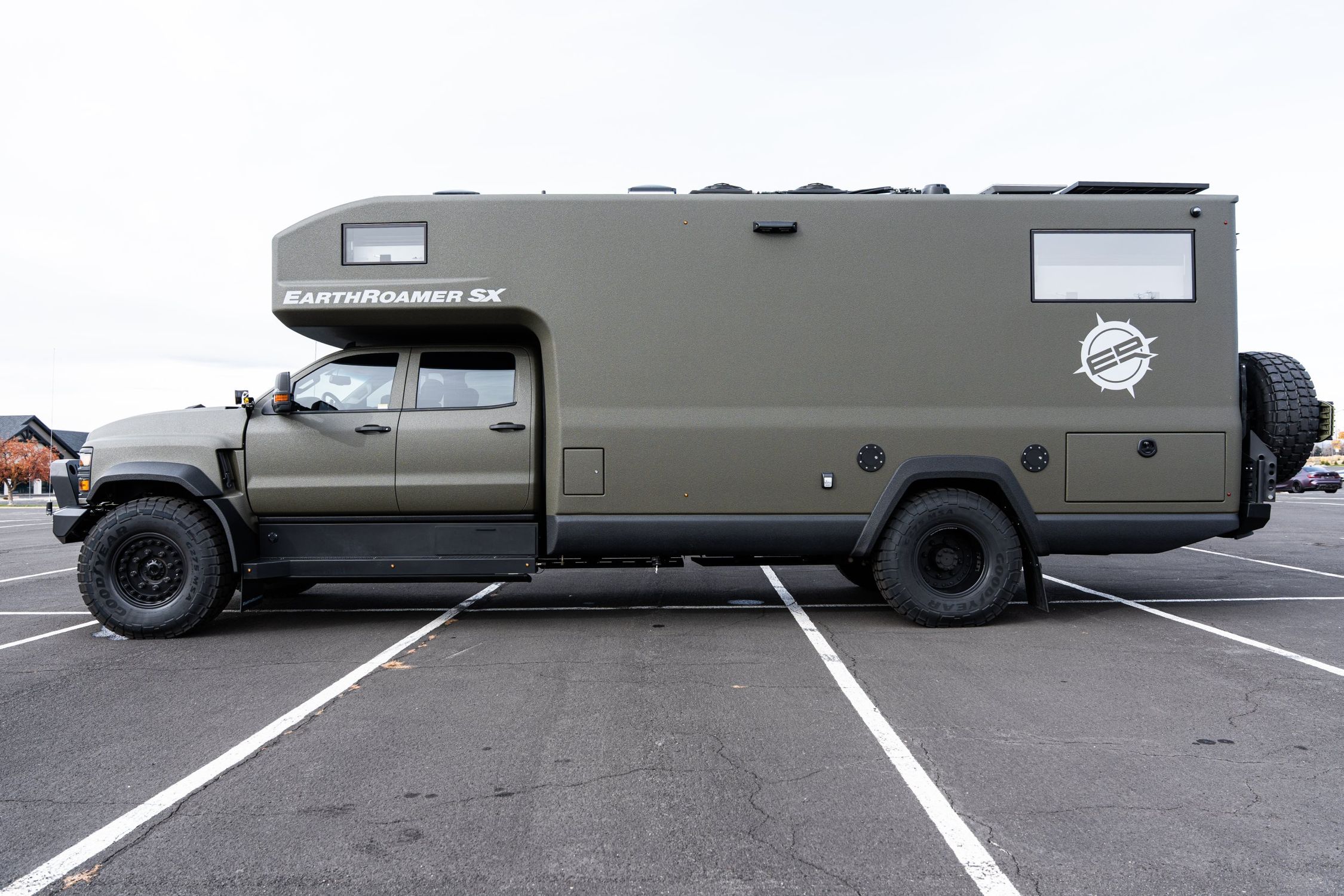

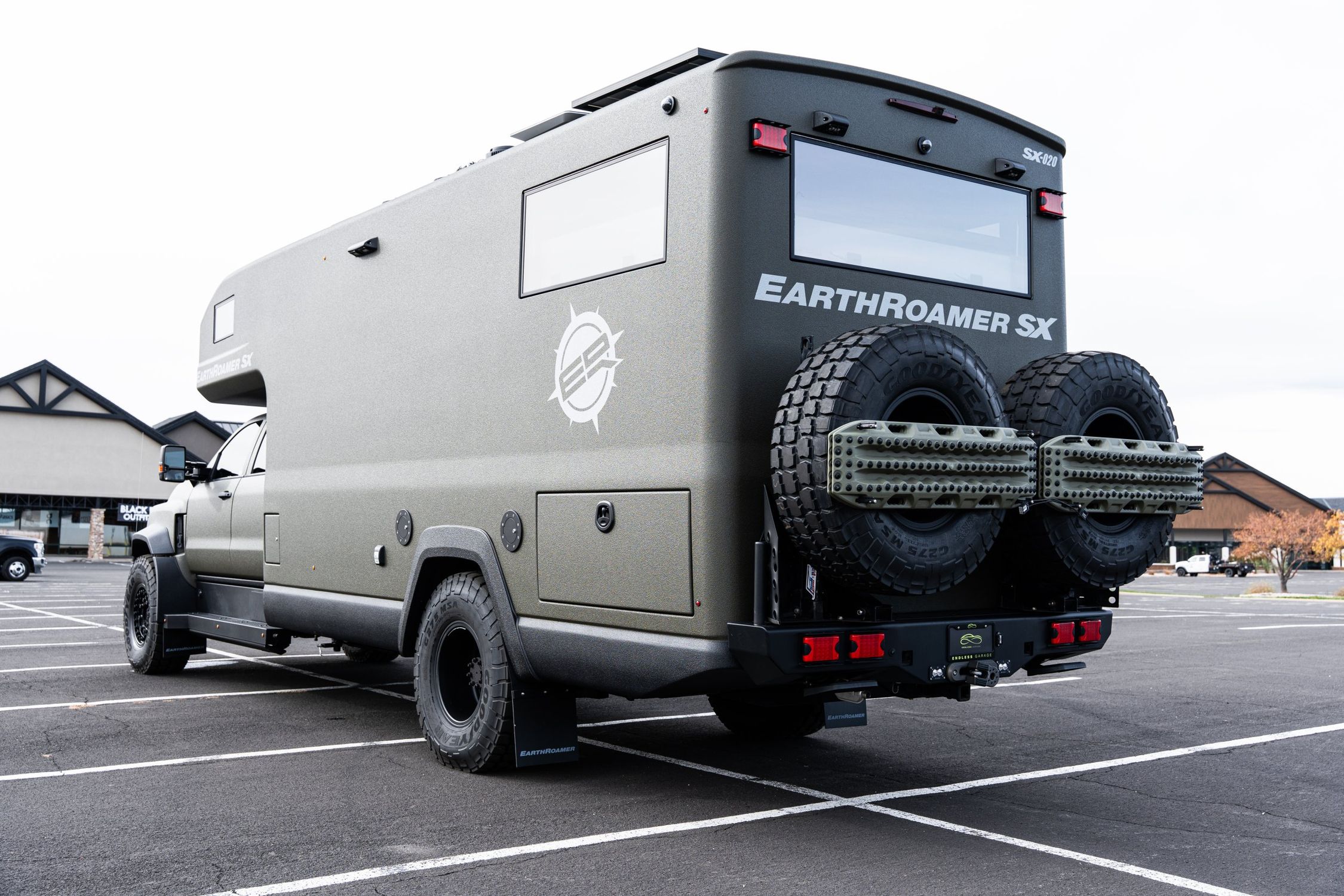

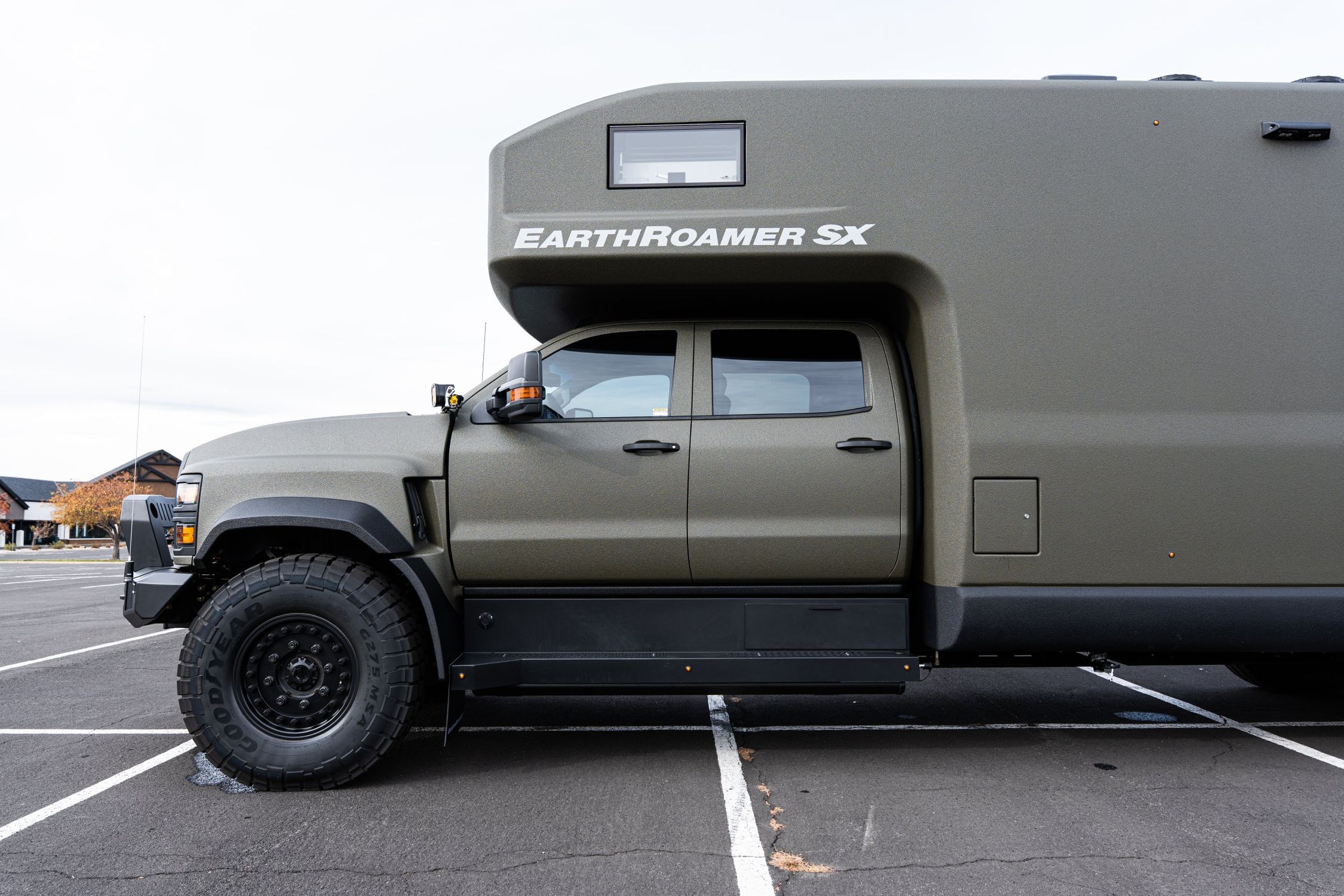

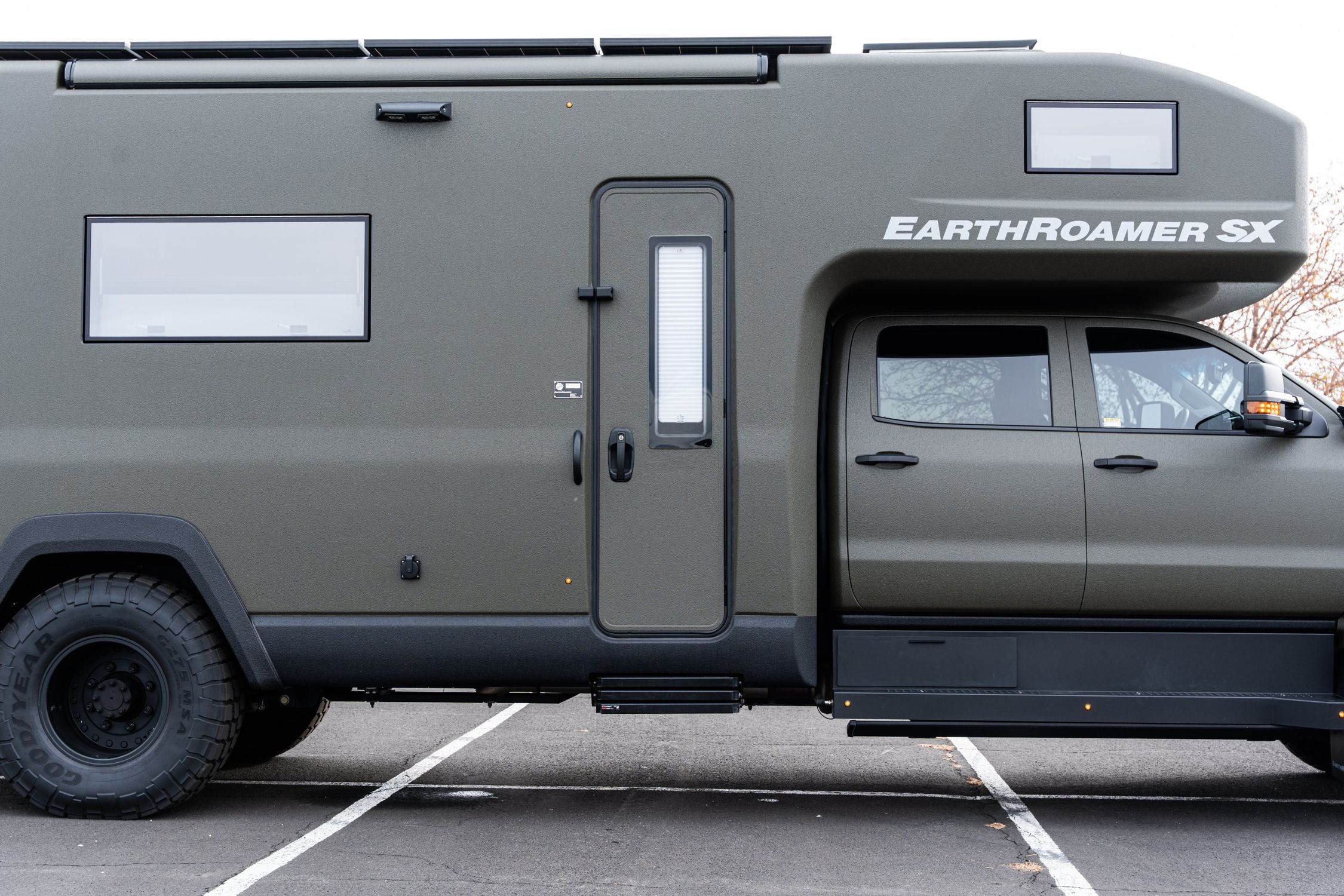

Earth Roamer SX-20

• Chevrolet Silverado 6500HD w/ Duramax 6.6L Turbo-diesel V8 and Allison 6-speed transmission

• EarthRoamer Designed rear pivot camper mounting system

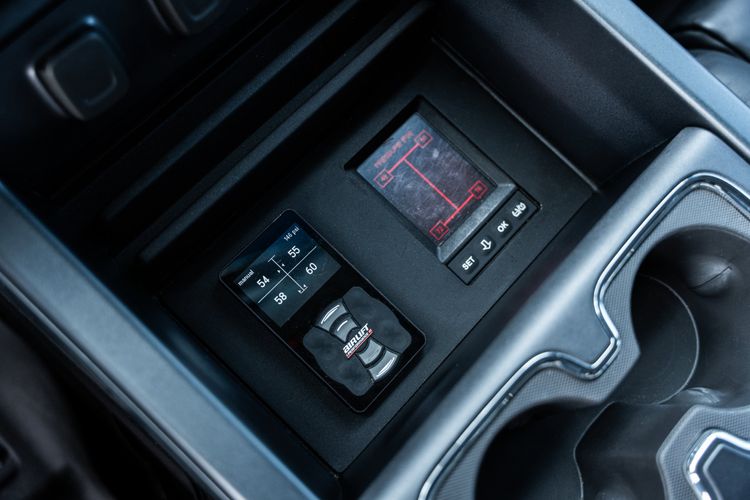

• Air-ride suspension

• Heavy duty front and rear stabilizer bars

• Heavy duty remote reservoir shocks

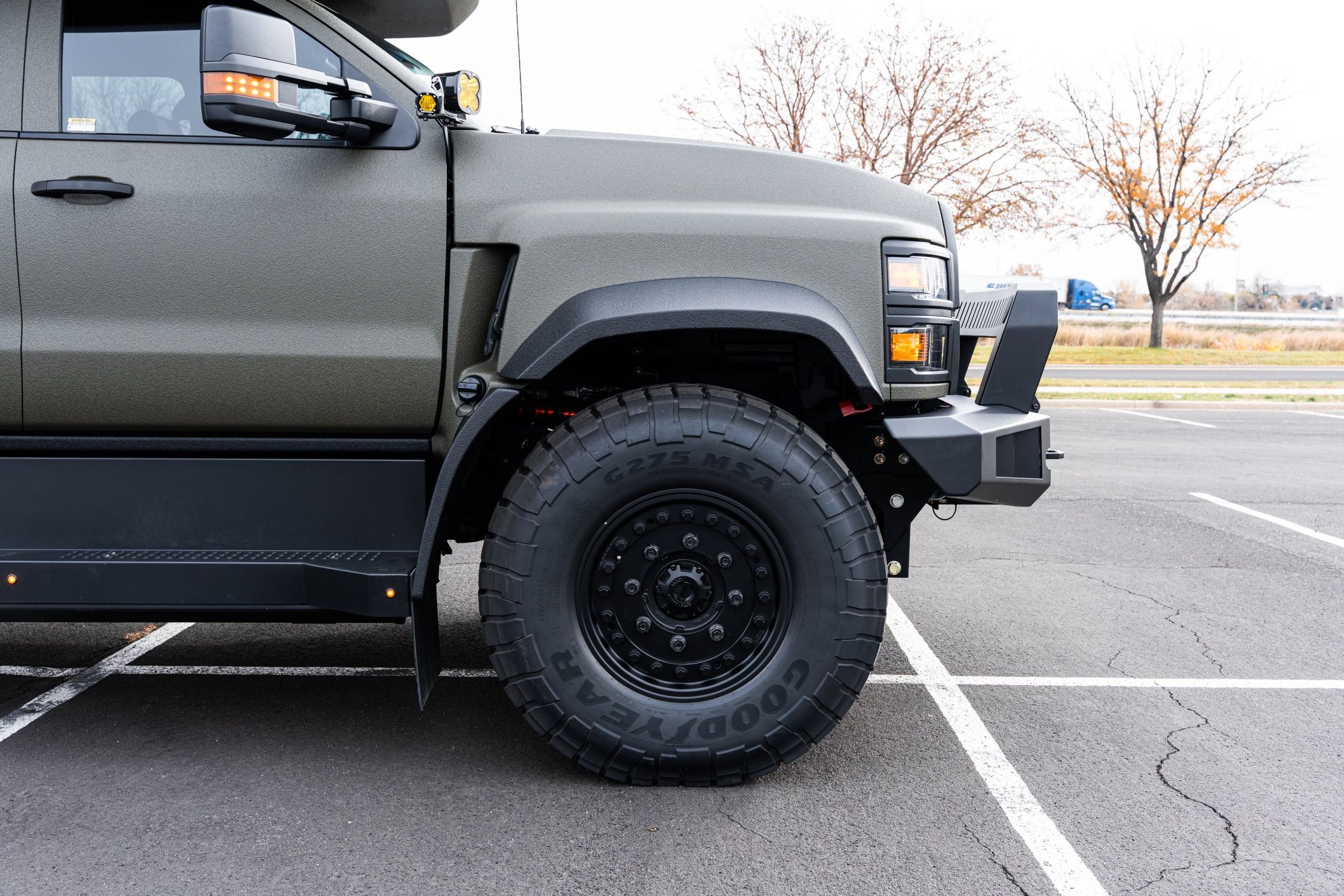

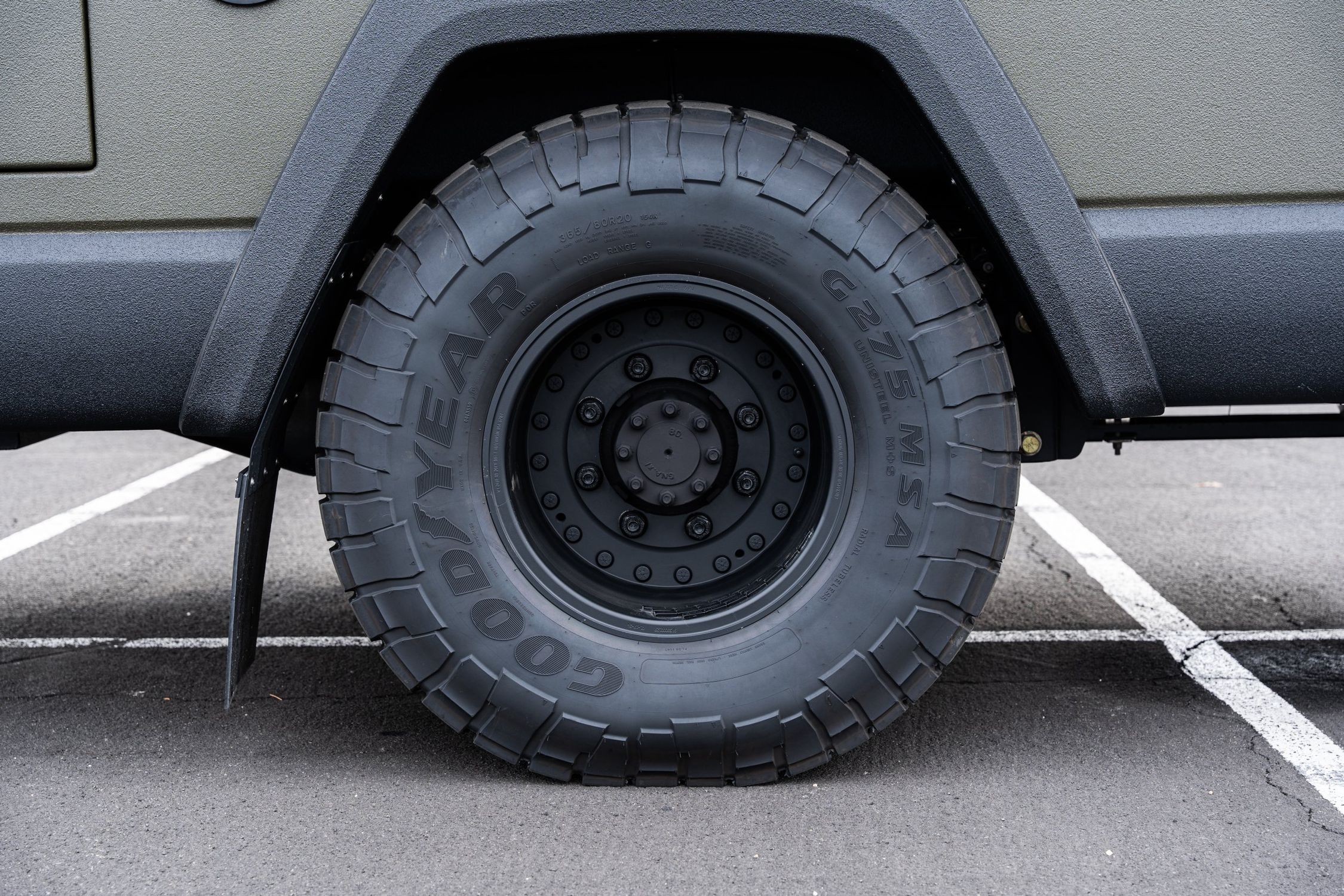

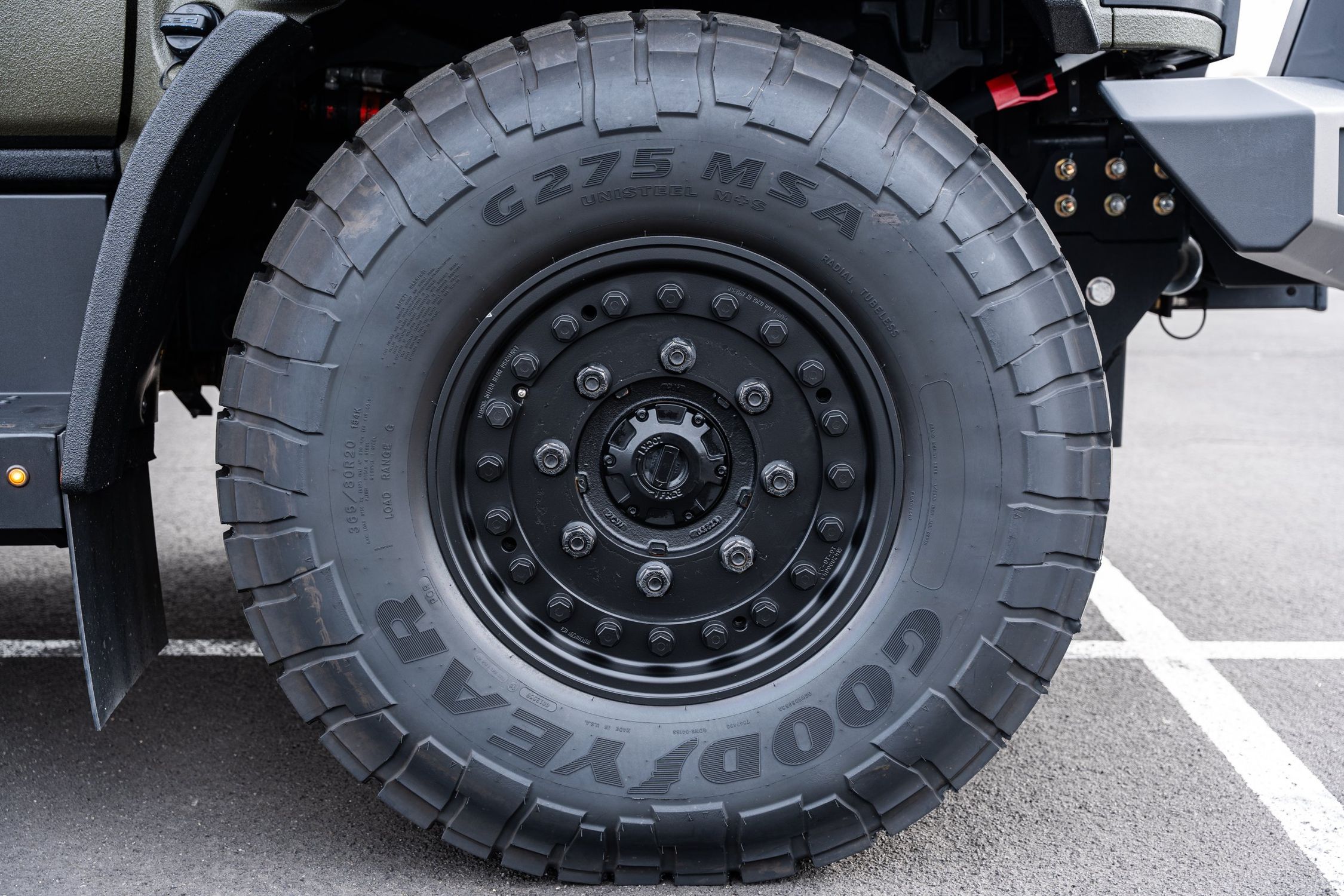

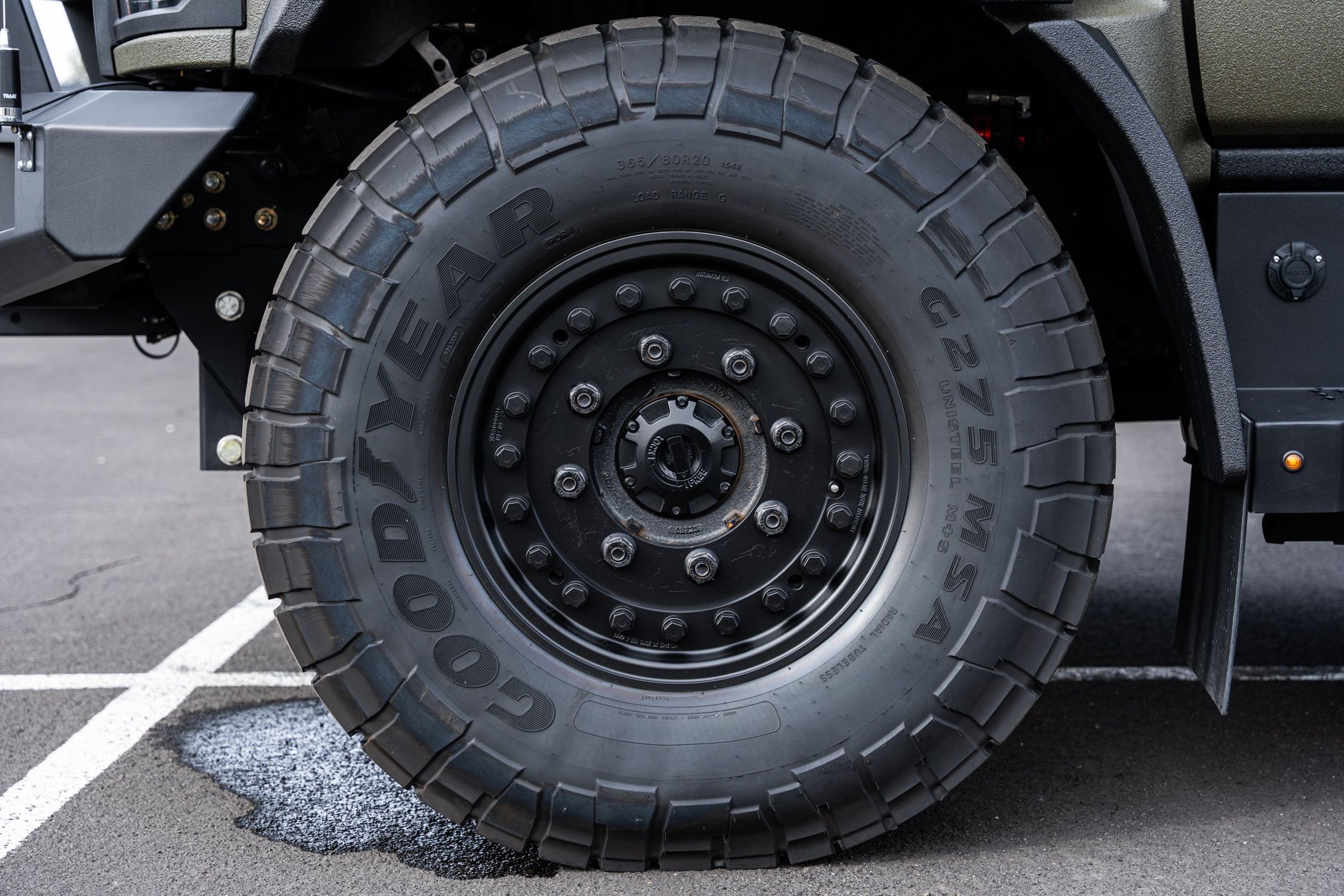

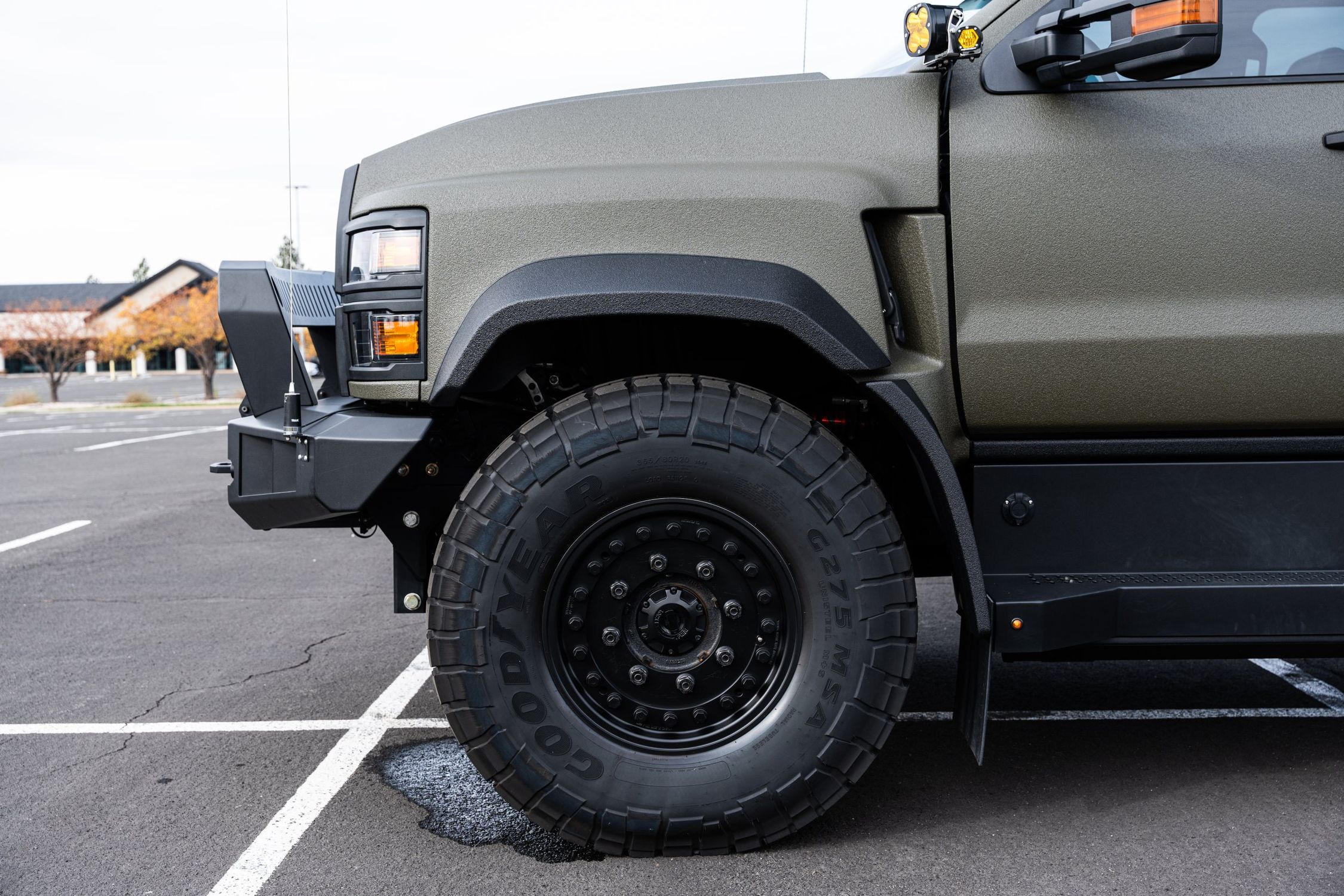

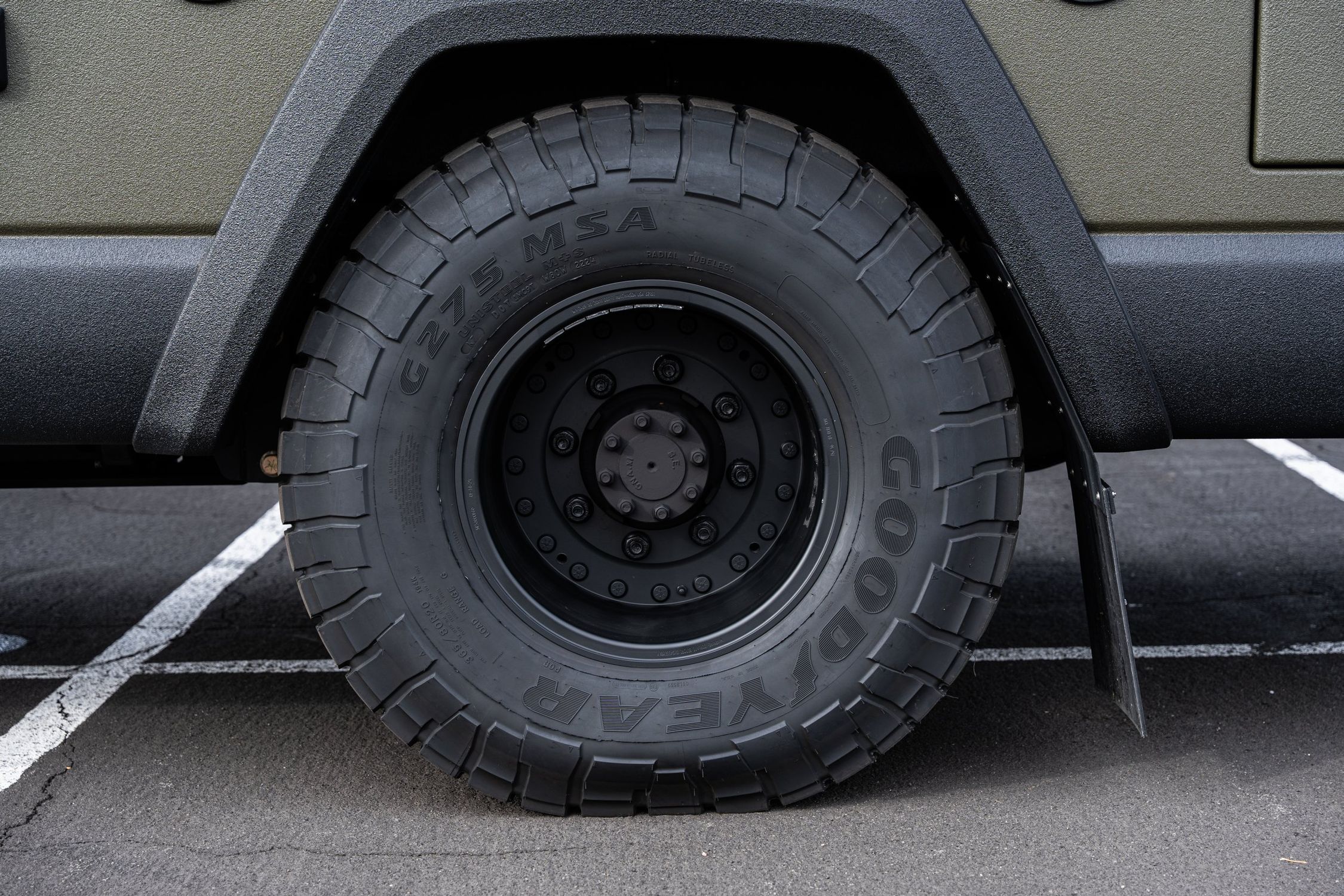

• Good Year 43” tires on military grade bead-lock rims

• OnStar capabilities

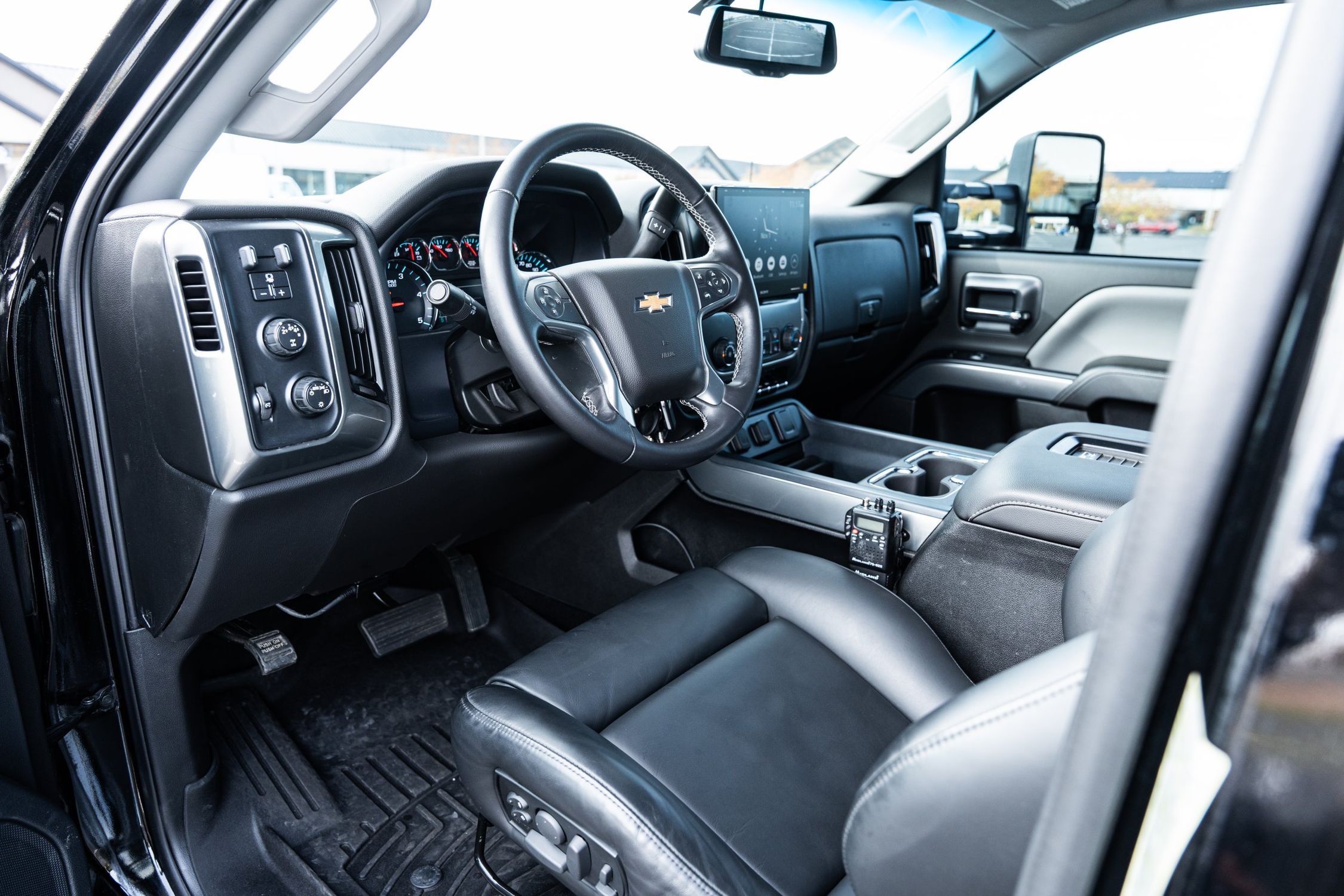

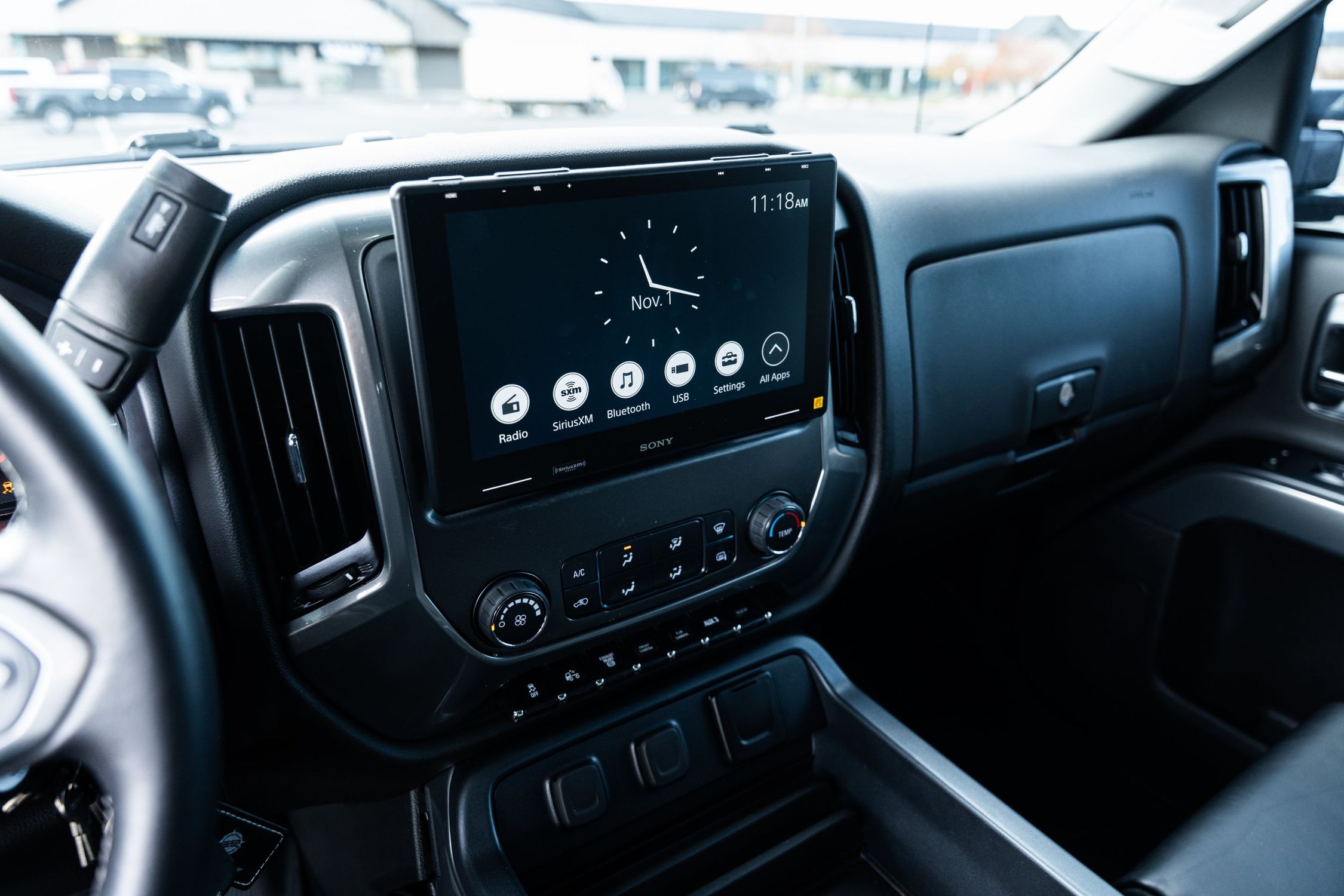

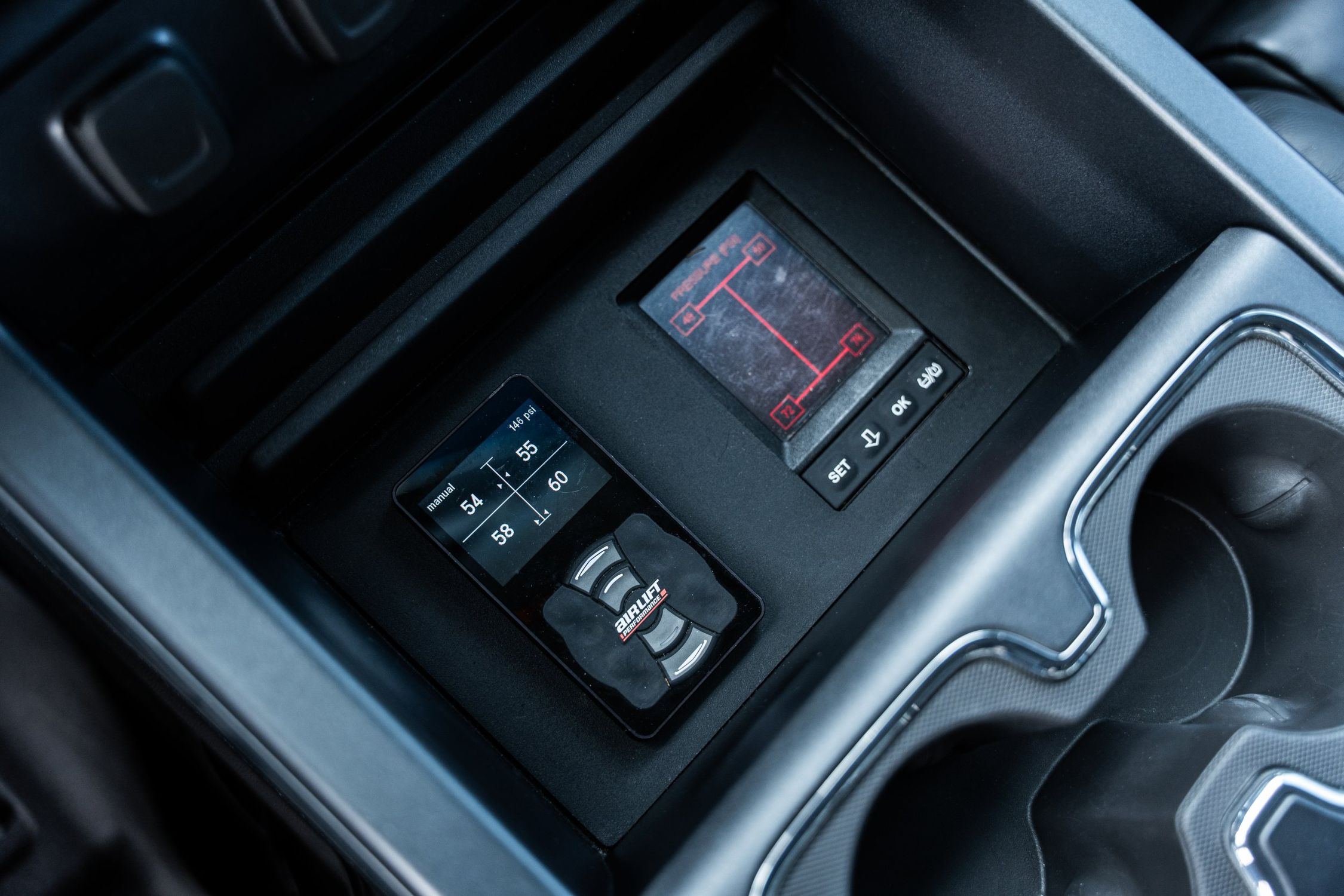

• 12.1” Chassis Display and Control Screen

• 2WD Low capability with manual front lockers

• 2” tow hitch (capacity dependent on options)

• 2” receivers at rear bumper

• Fast tire inflation/deflation kit

• Heavy duty aluminum front bumper and steel rear bumper

• Manual rear bumper steps

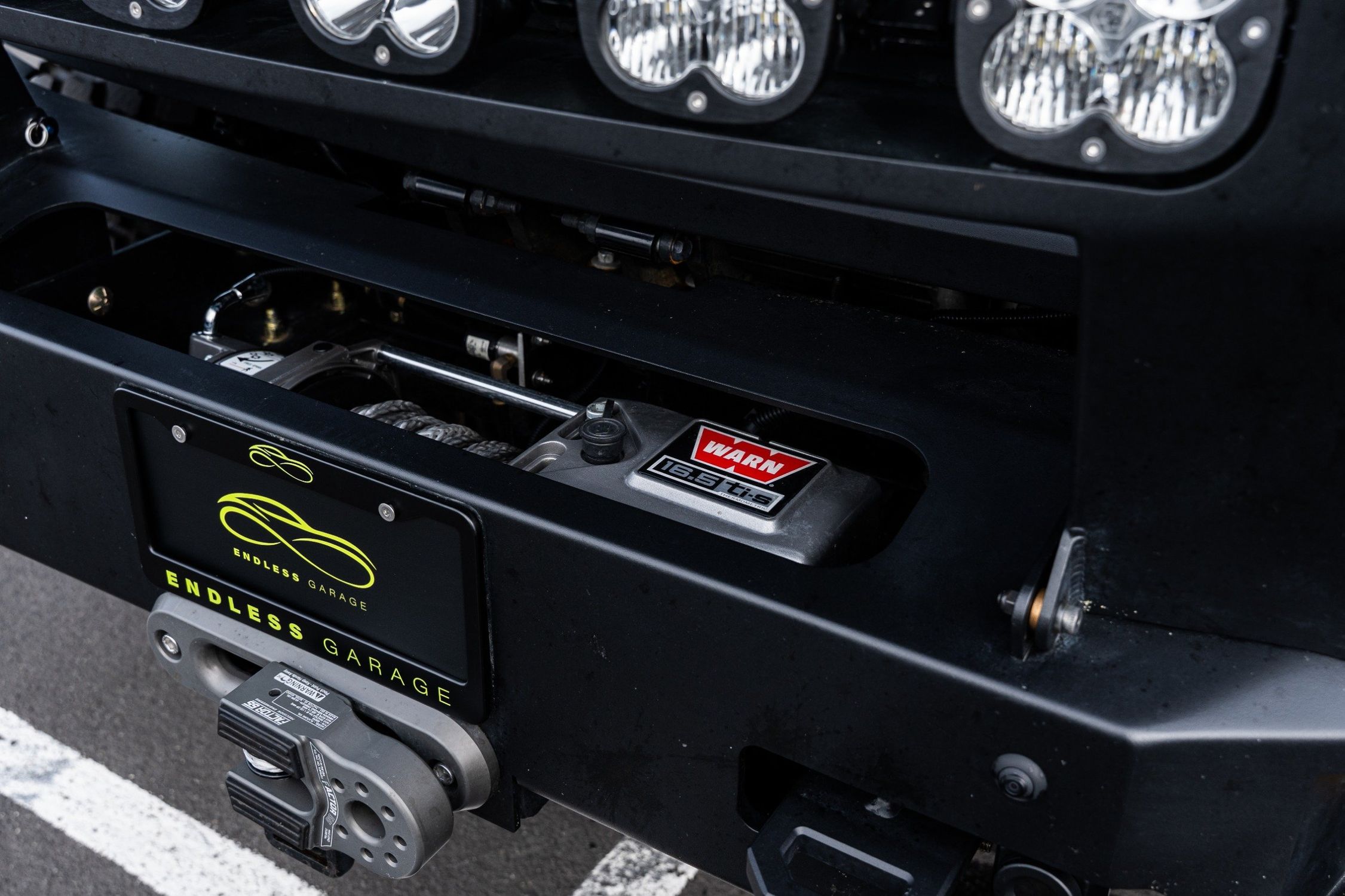

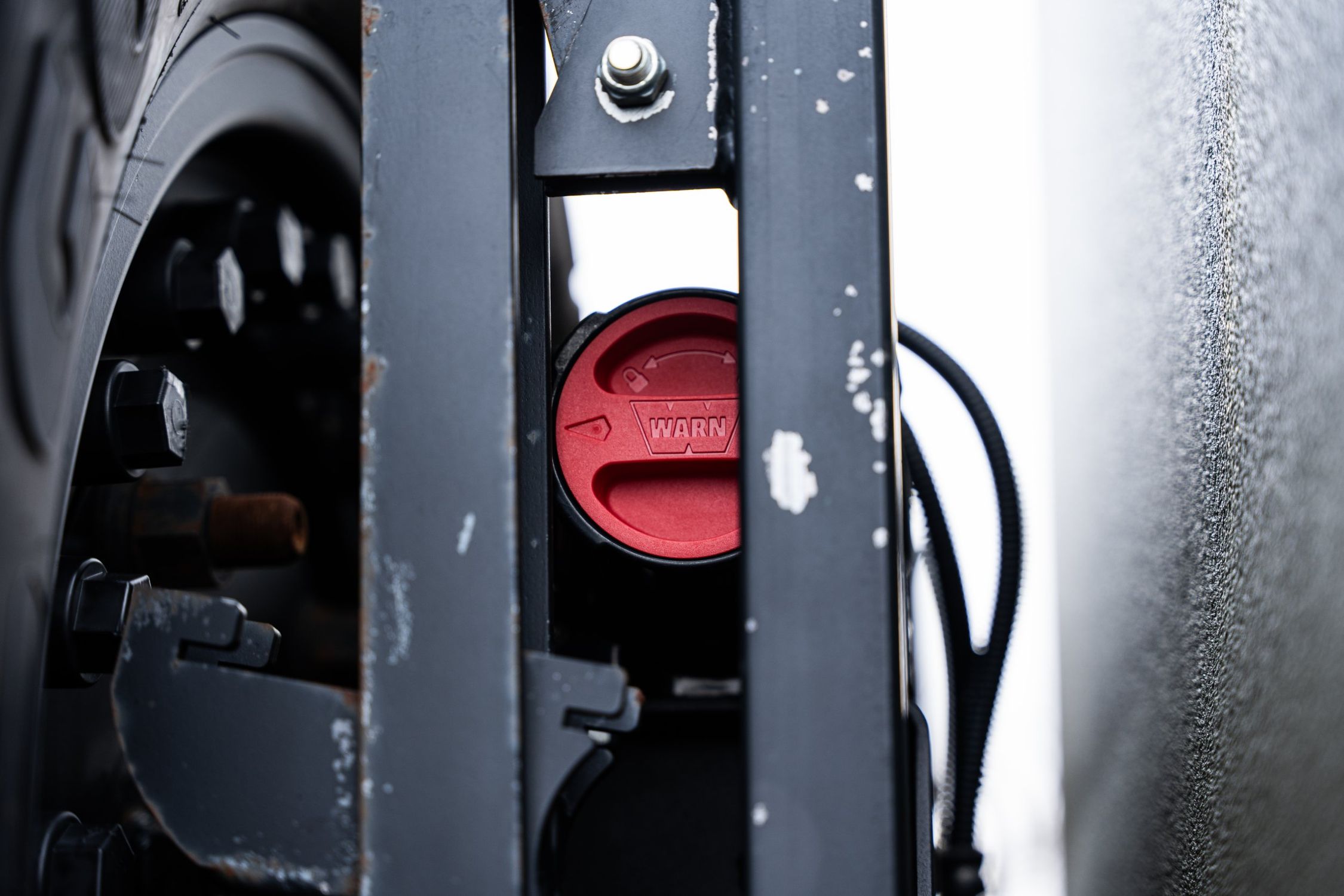

• Front 16,500 pound Warn winch with synthetic rope and wireless winch controller

• 100-gallon fuel tank system (60 gallons front fill, 40 gallons rear fill)

• High output, continuous duty air compressor, air tank, water separator, air horn and 4 air chucks

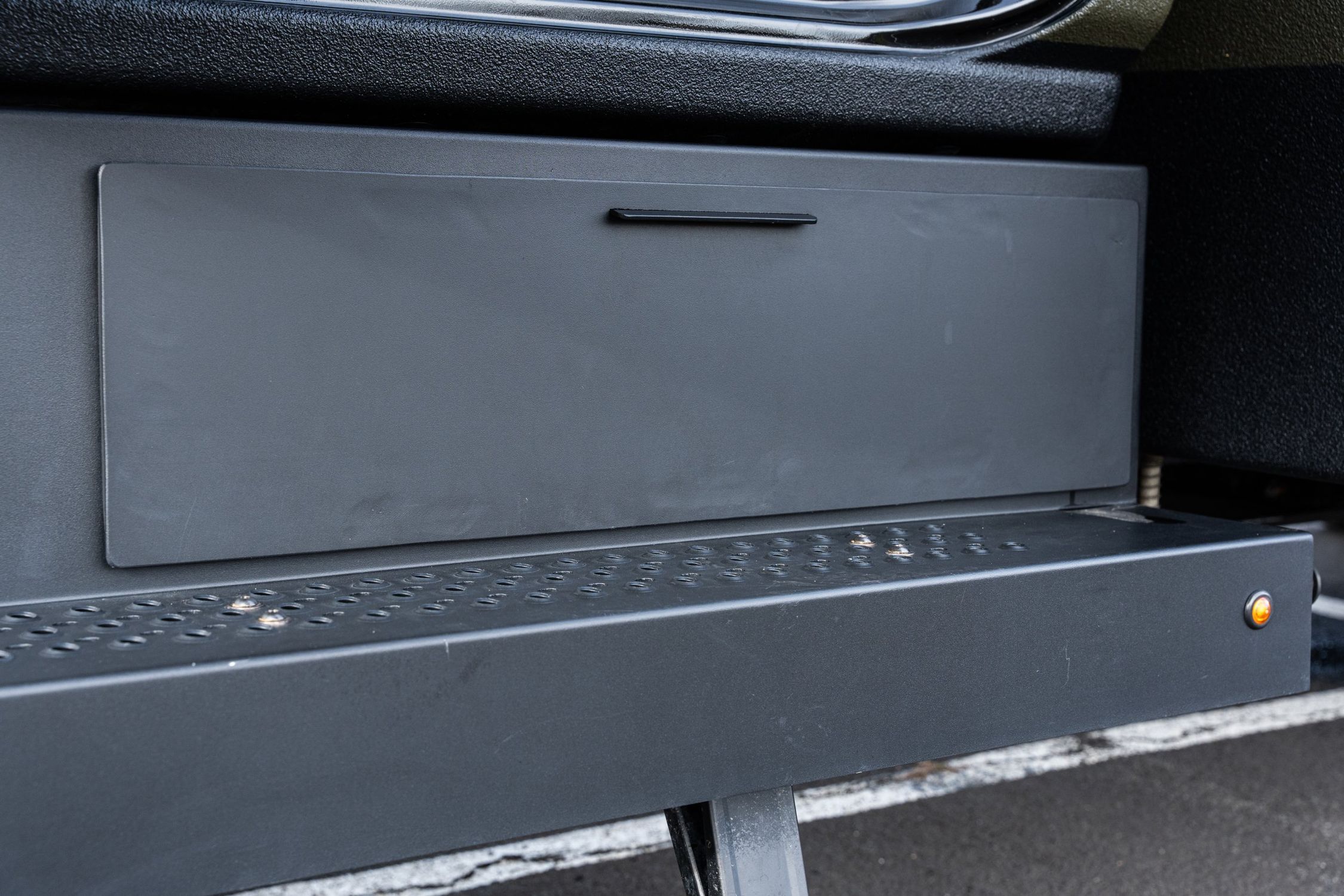

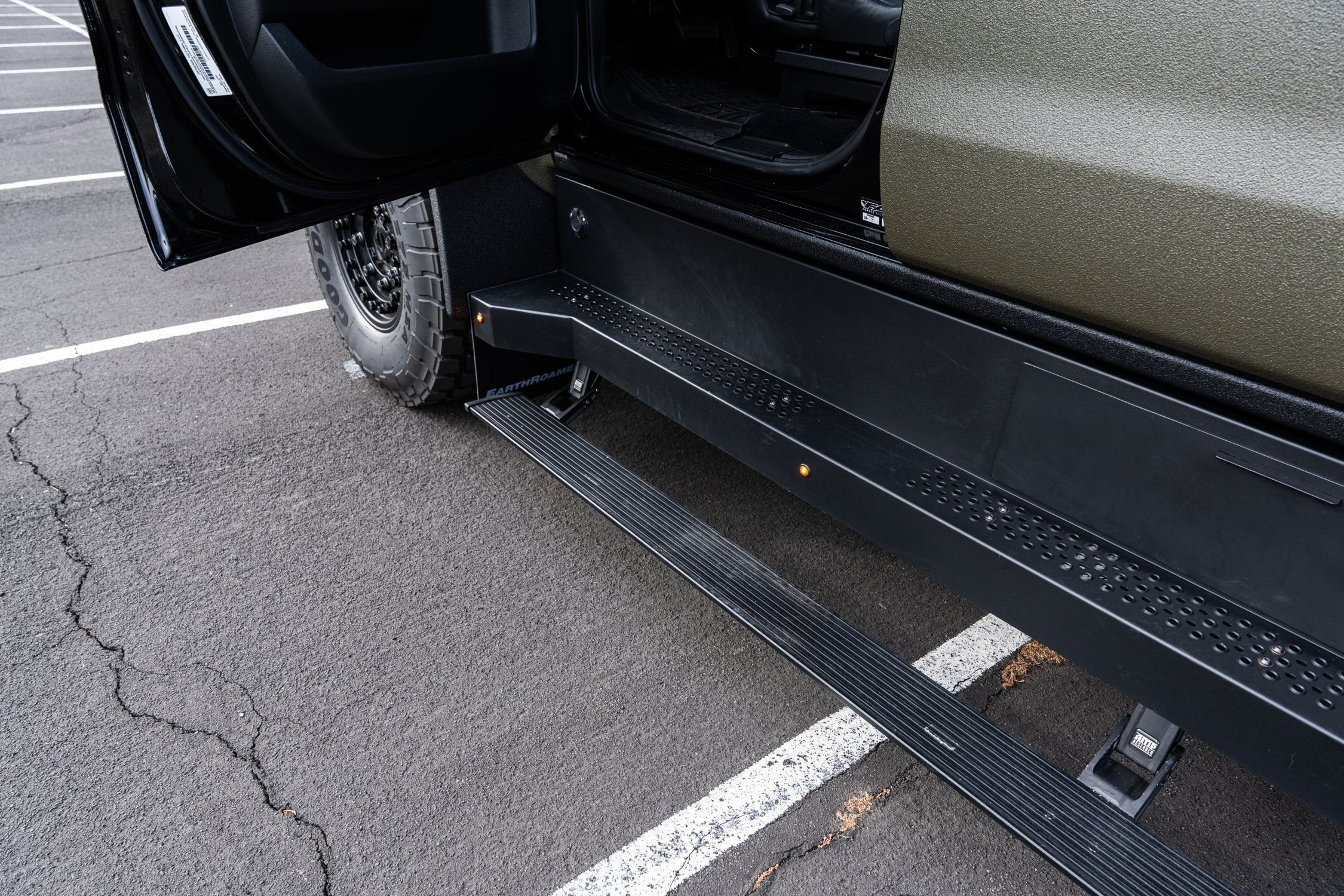

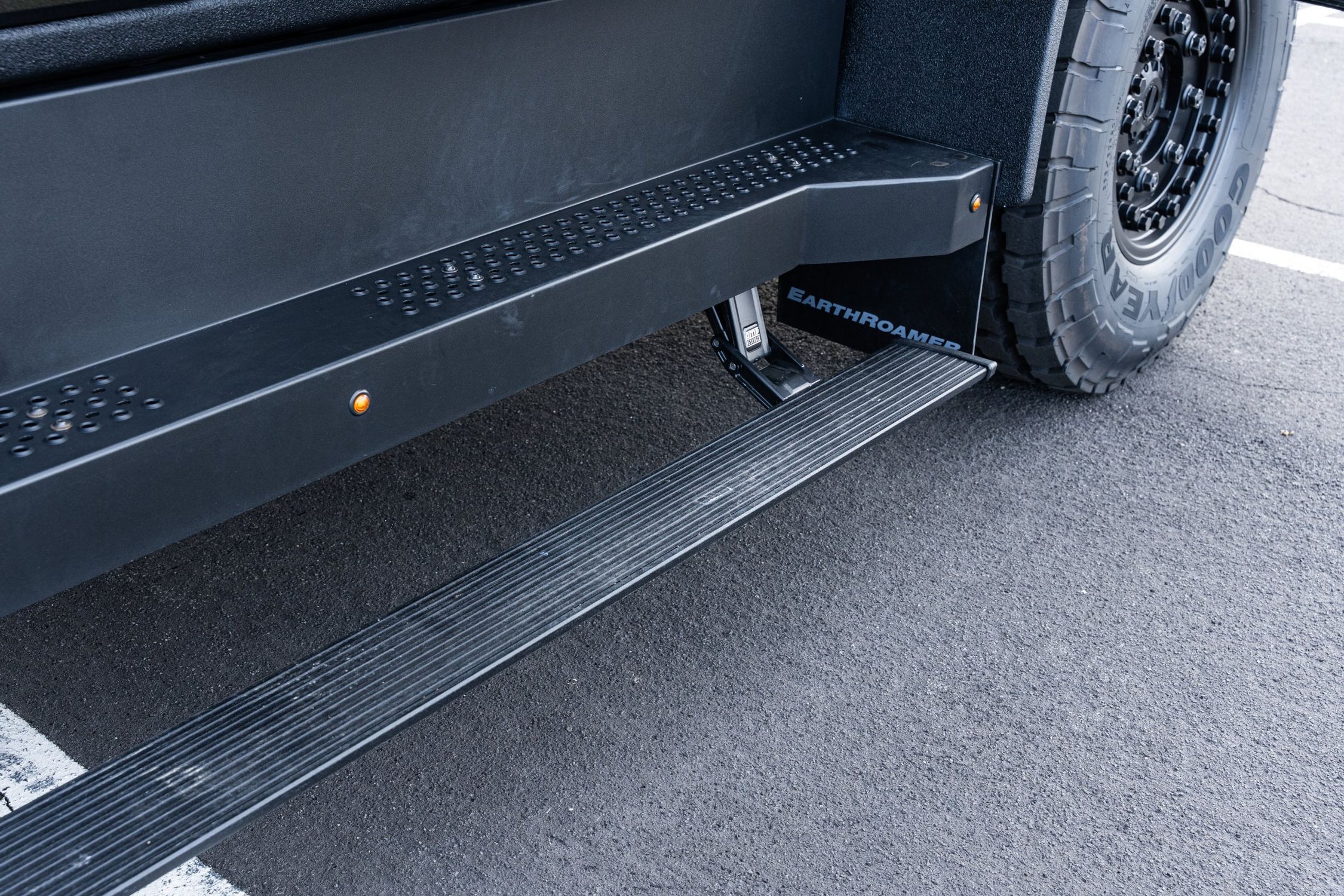

• Power running boards

• EarthRoamer designed composite fender flares

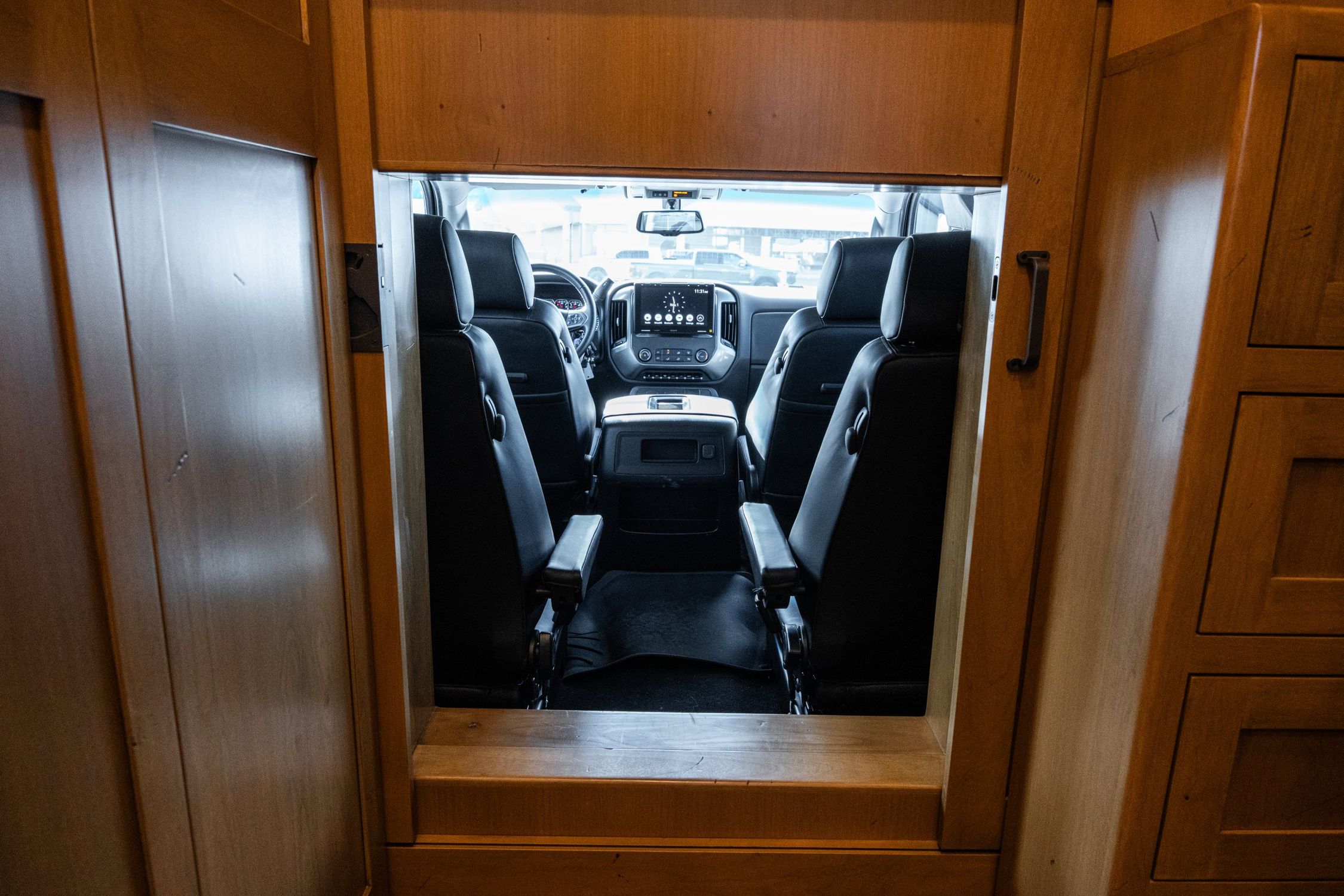

• Expansive, lockable pass-thru between cab and camper

• Tire temperature and pressure monitoring system

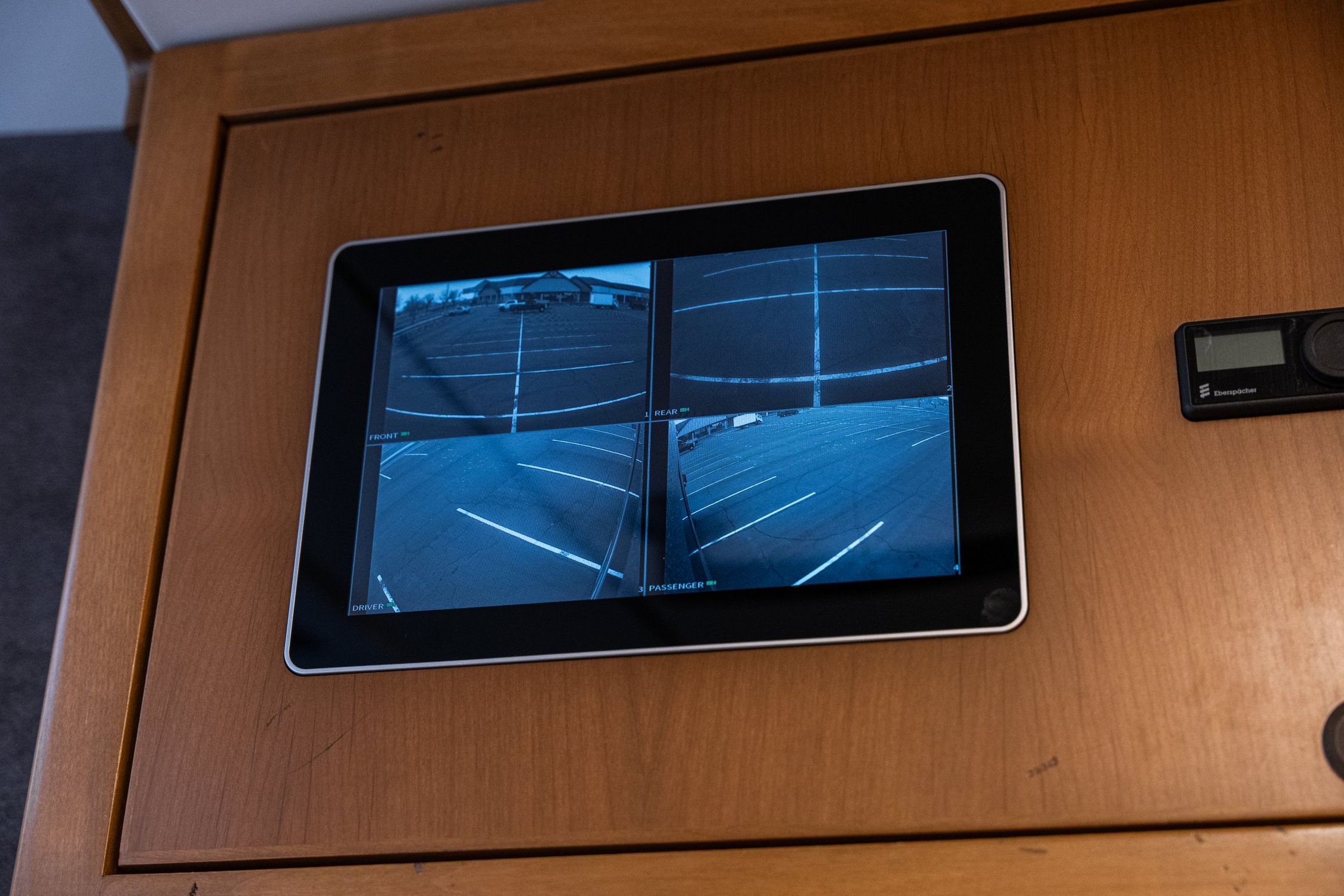

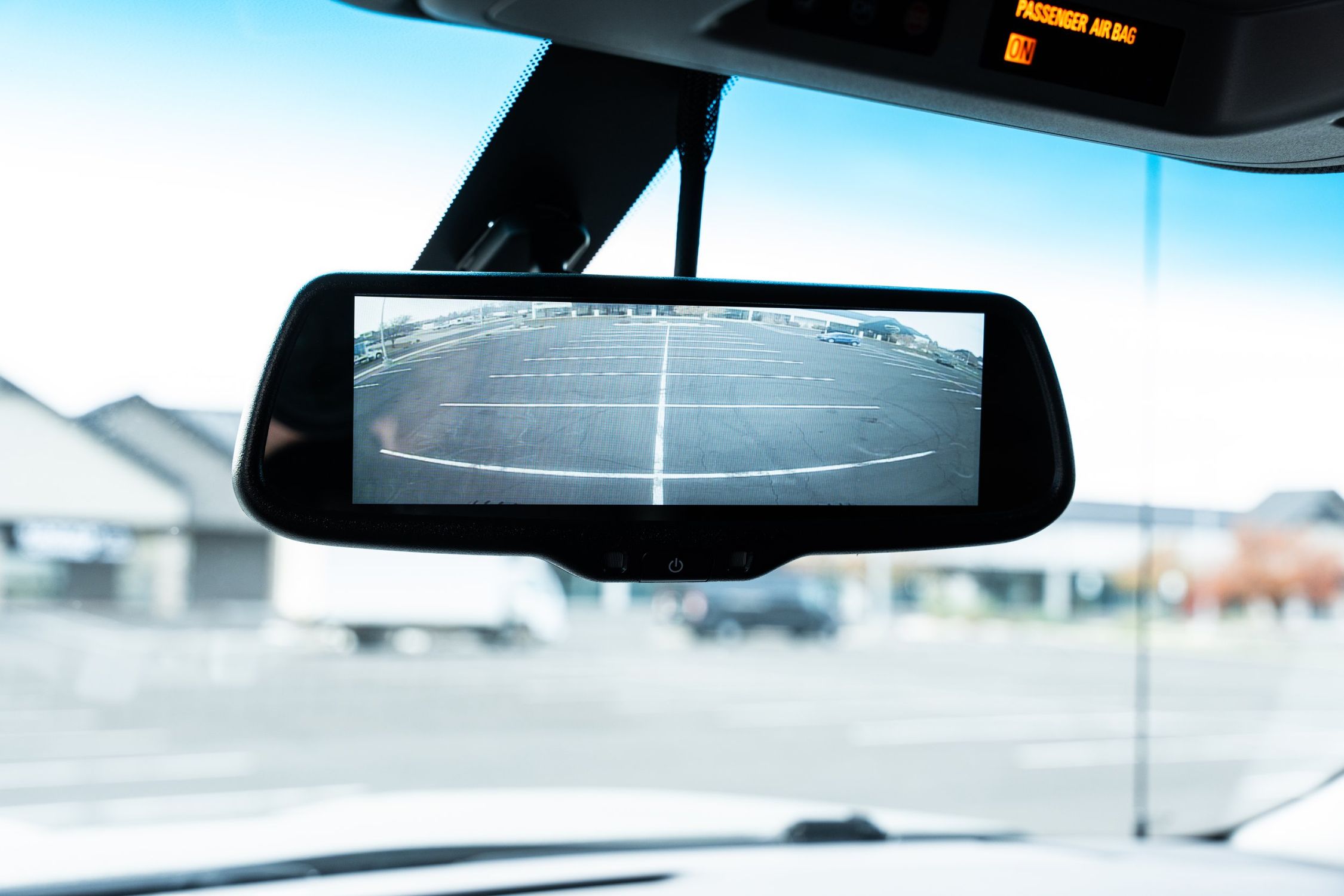

• Back up/rear view screen

• 7-pin trailer connection

Exterior

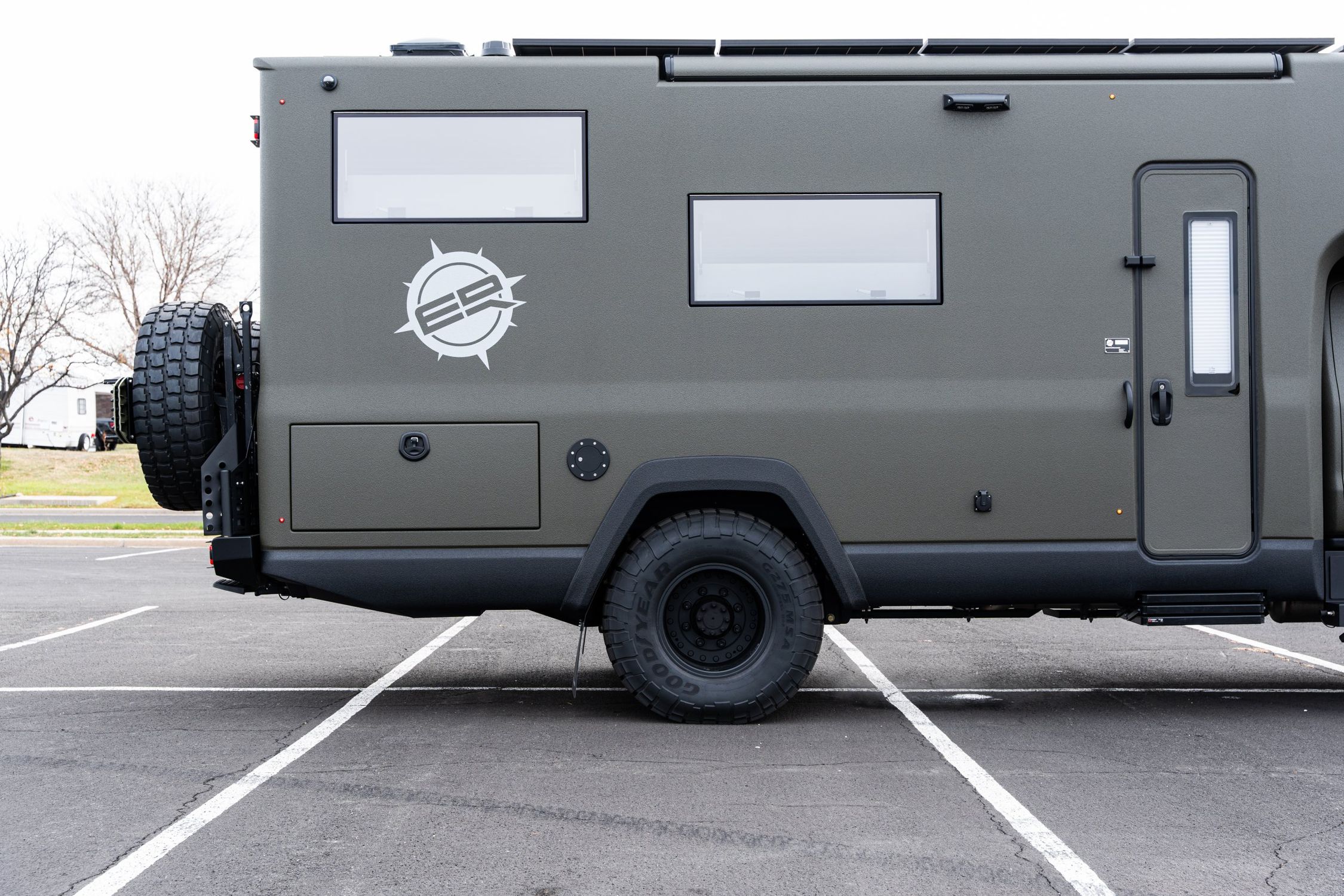

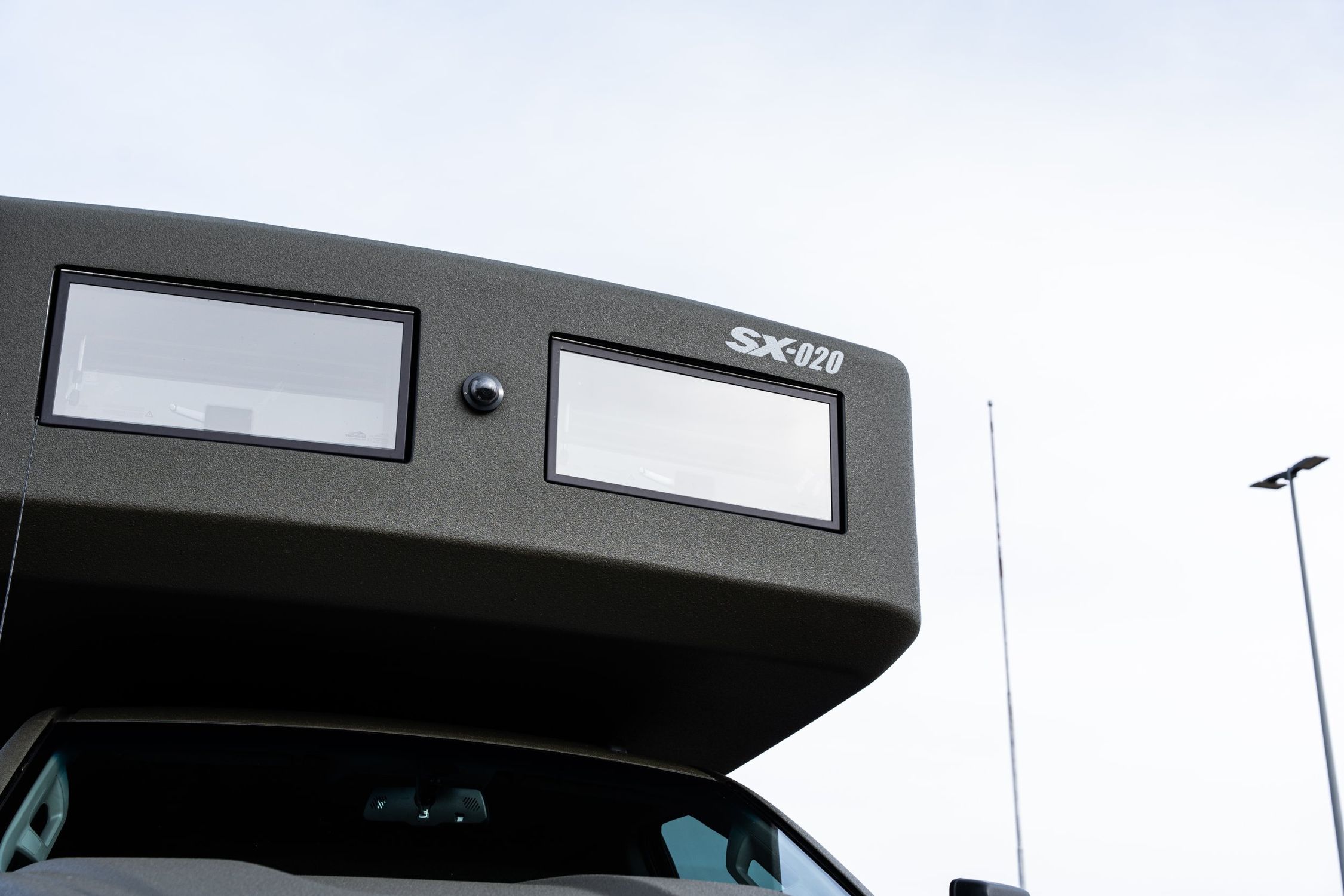

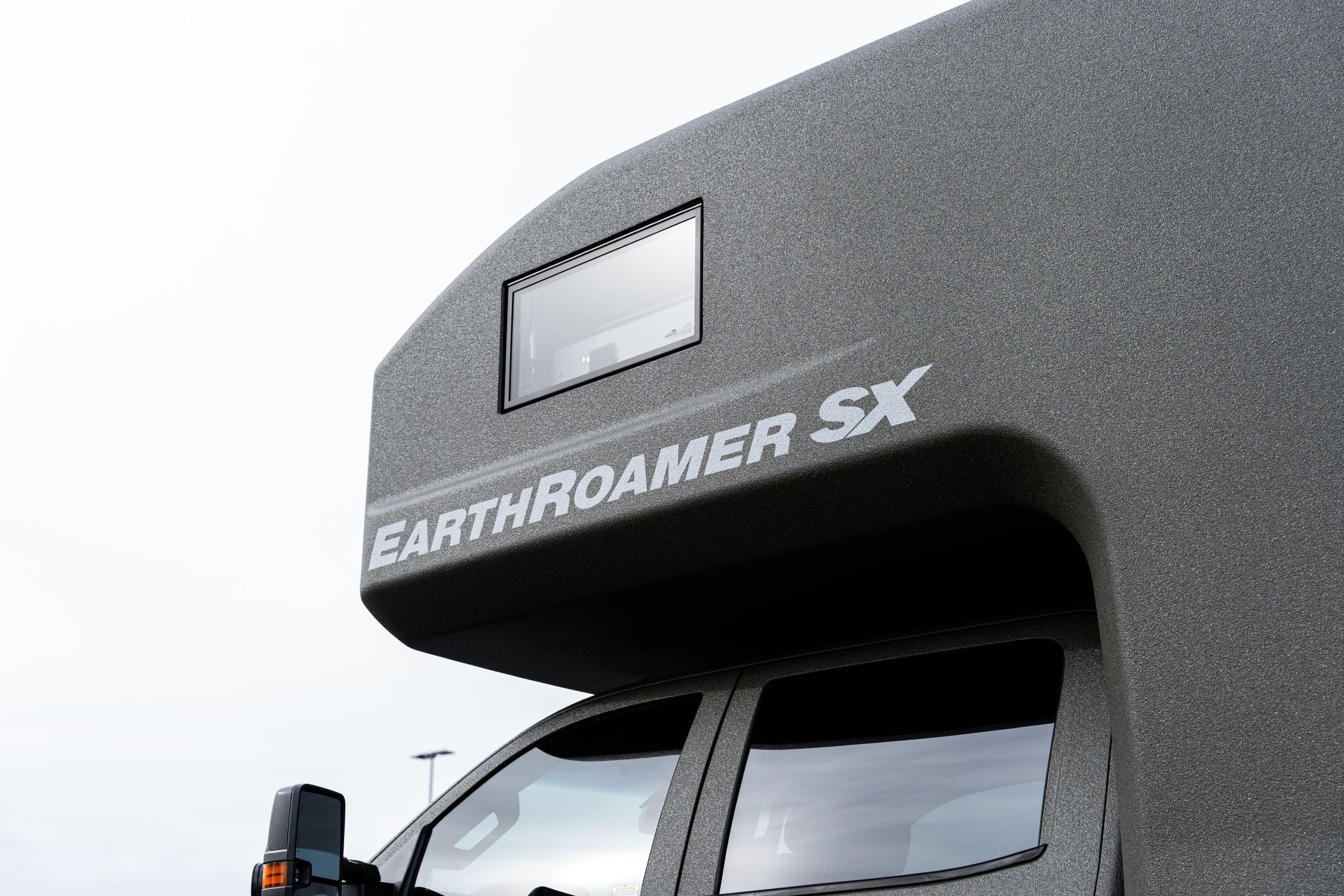

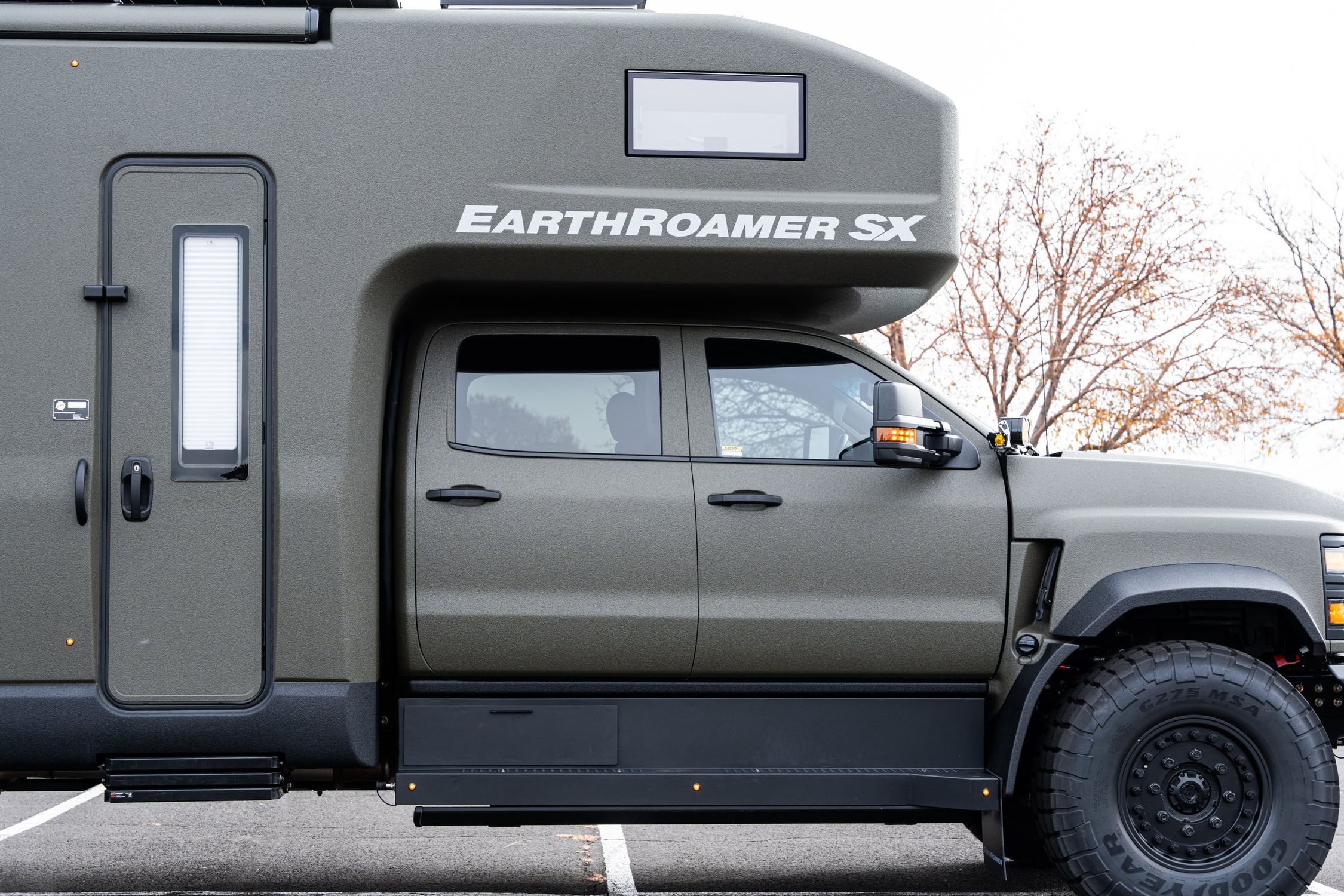

• EarthRoamer designed monocoque, vacuum infused carbon fiber camper body

• Exterior passthrough storage area

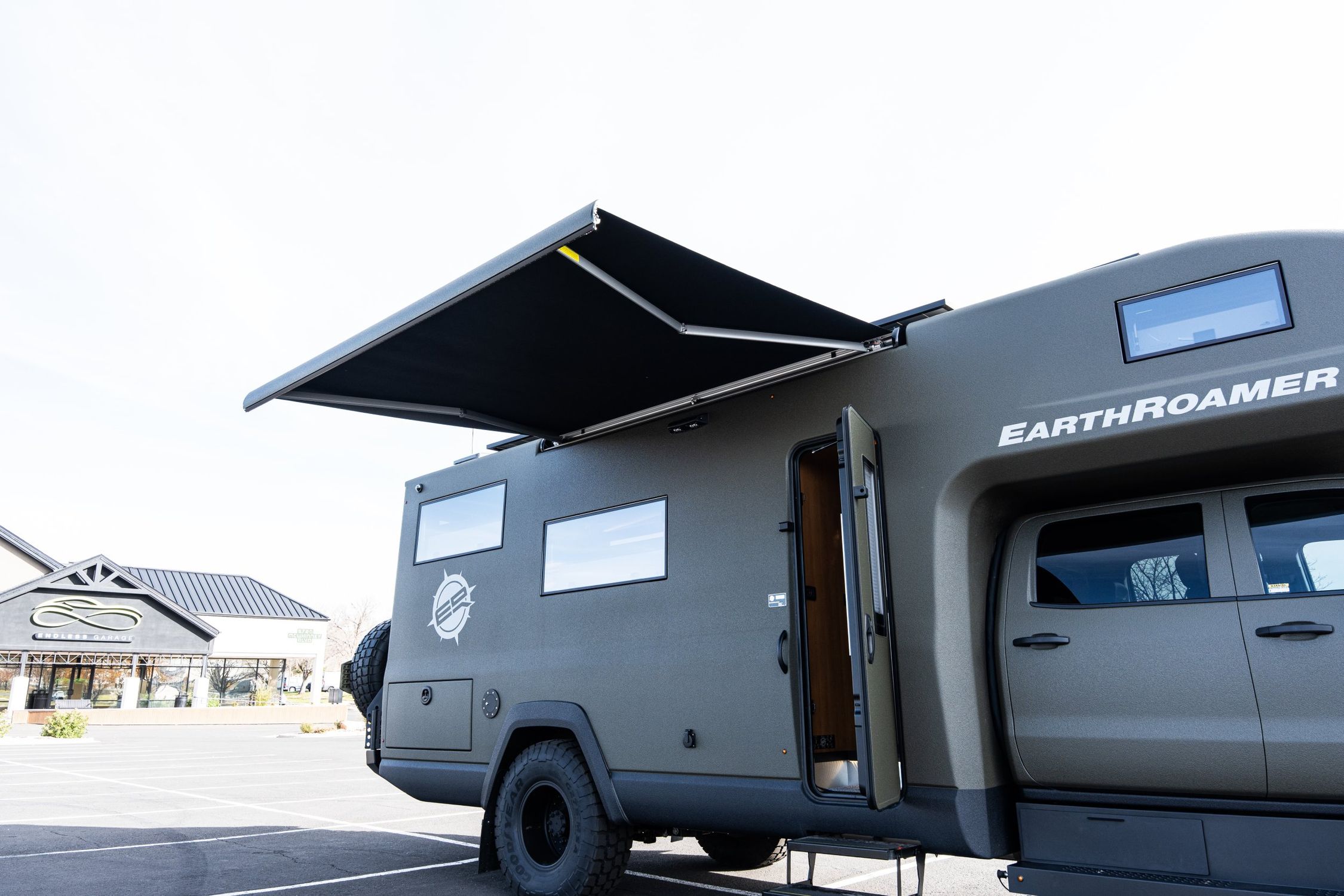

• Electric awning with LED lighting and automatic high wind retraction

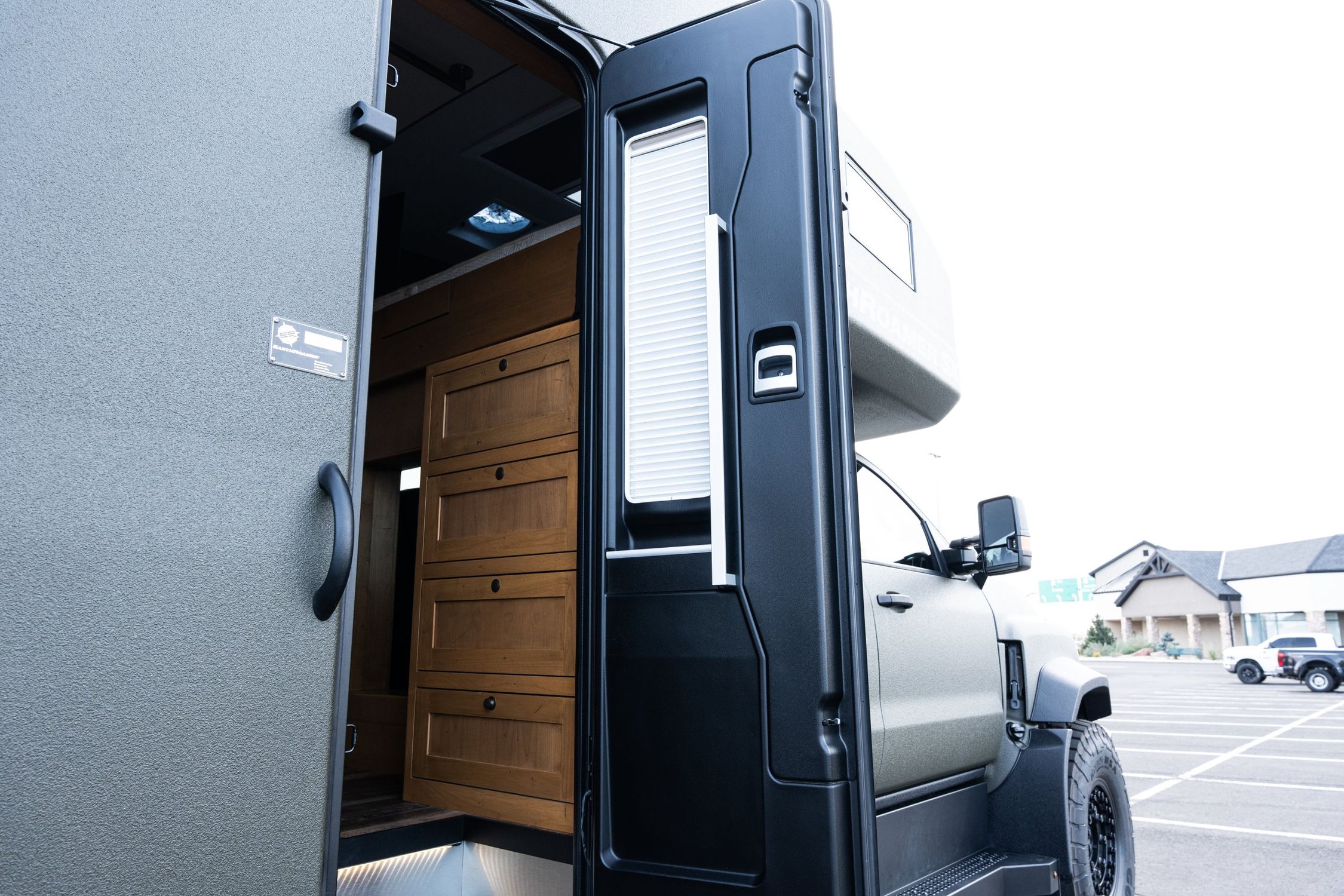

• Camper entry door w/fixed window and integrated shade

• Camper entry door and storage compartment doors integrated w/Chevrolet entry system

• X-Guard Body Protection Package on all painted surfaces of camper body and chassis

• Automatic electric entry steps

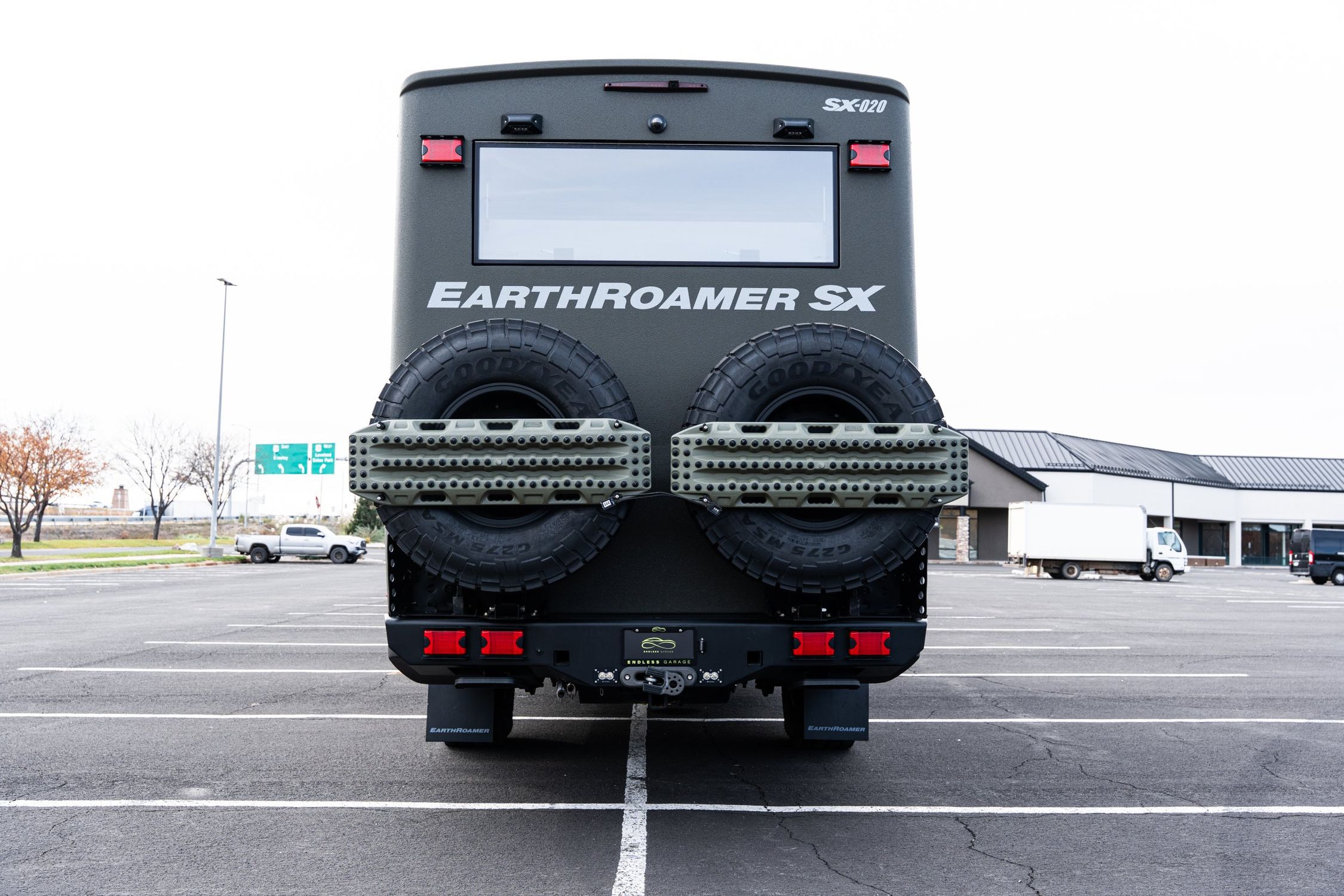

• Full size spare tire

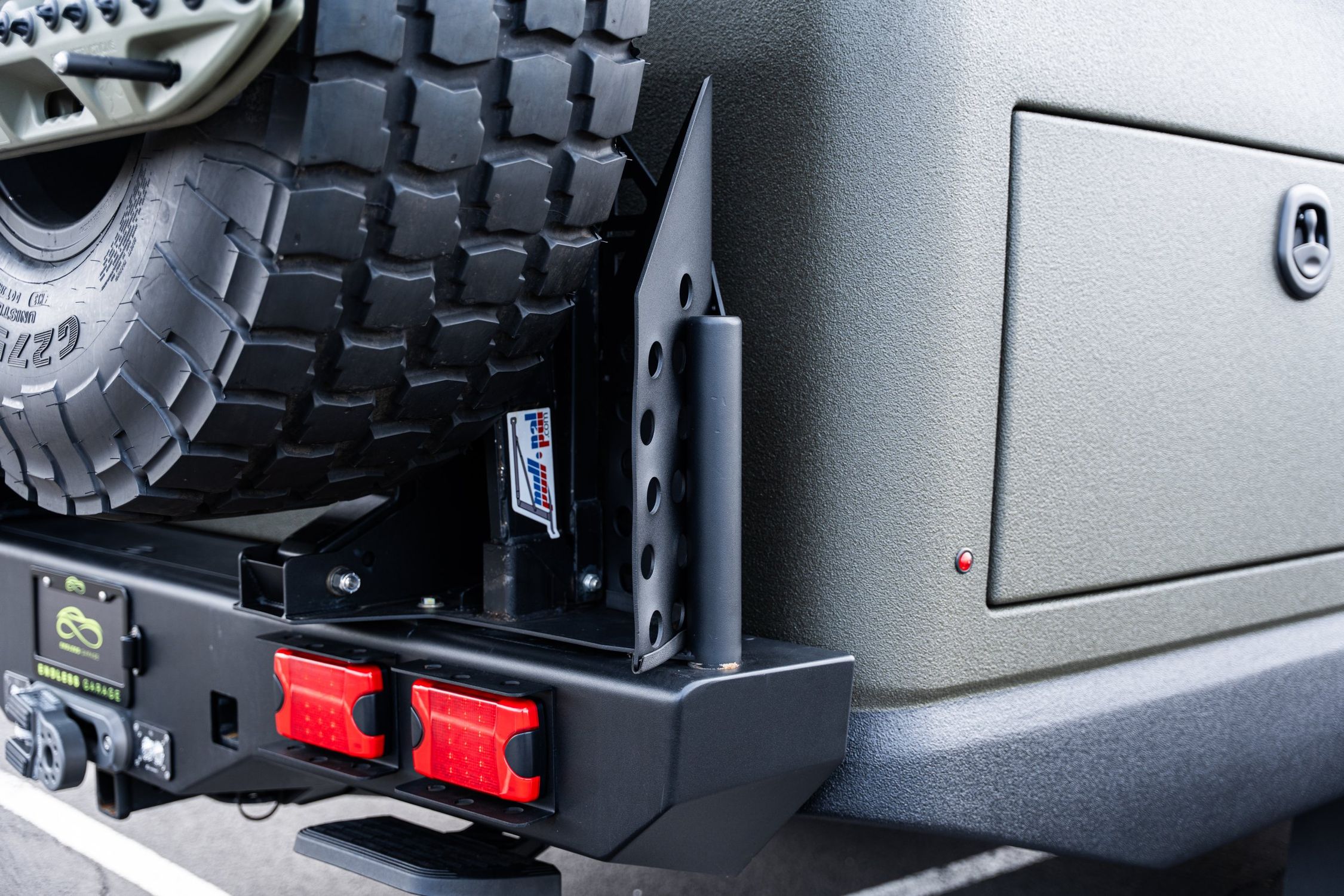

• Spare tire removal system w/electric winch, hoist, jack and tools

• Locking billet fuel and water access doors

• Billet aluminum license plate frames

• Front and rear EarthRoamer logoed mud flaps

• Exterior toilet cassette access door

• Grab handle at entry door

• Exterior Storage Box w/ modular mounting rack and table

Exterior Lighting

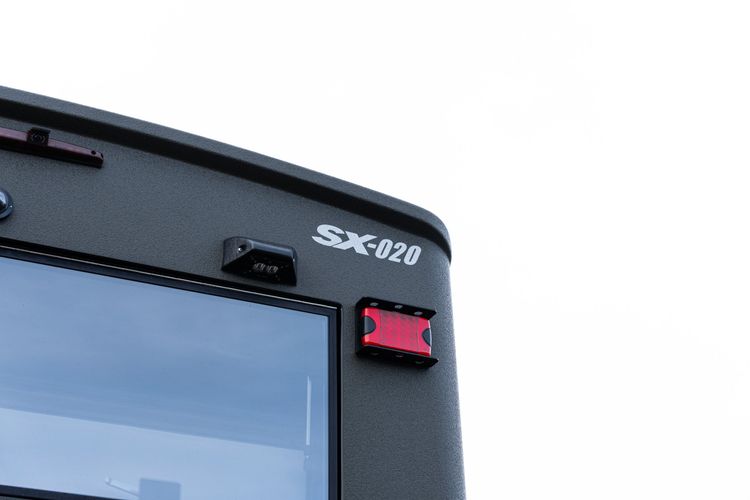

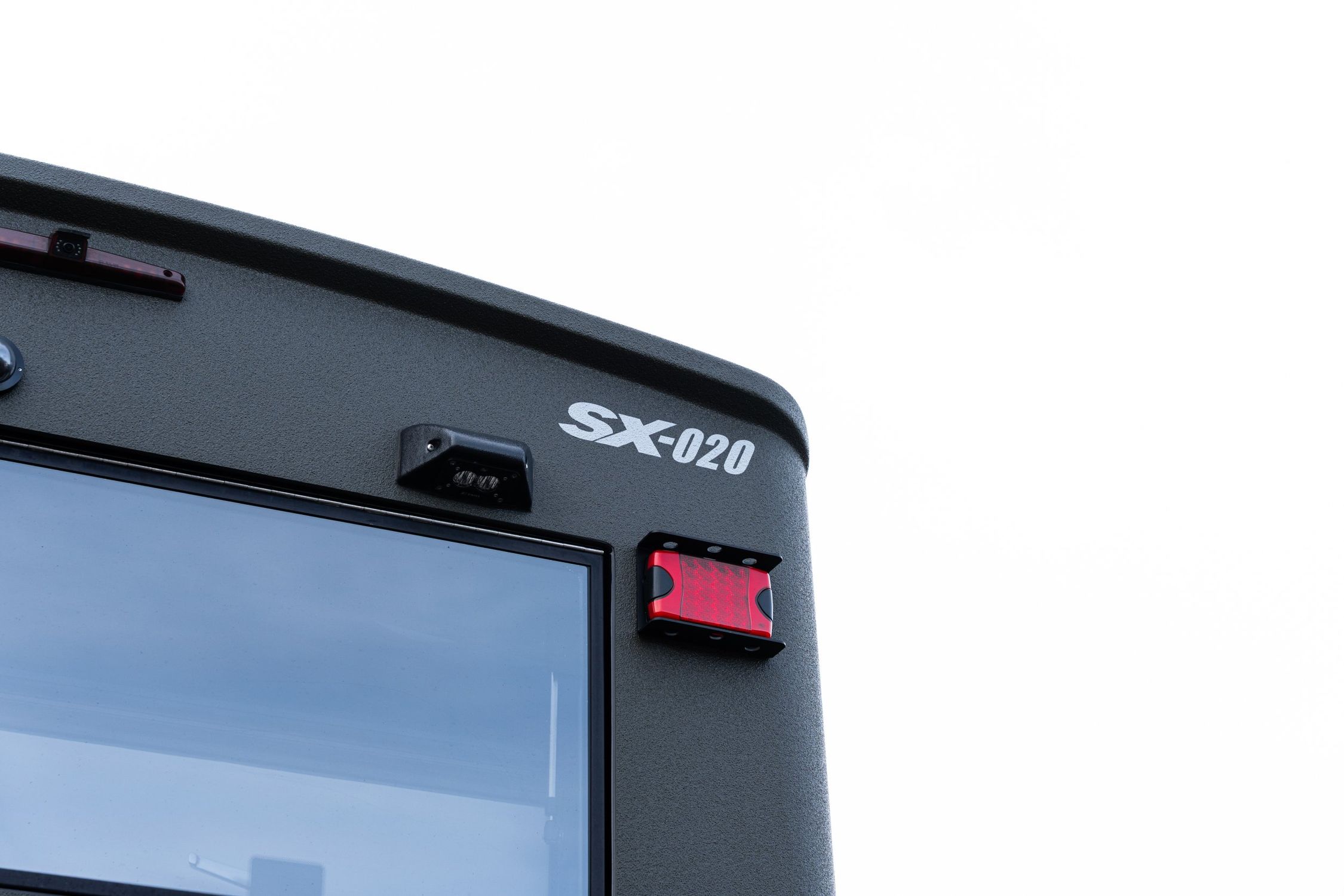

• LED tail and brake lights (upper and lower)

• LED reverse lights

• LED marker lights

• LED rear license plate light

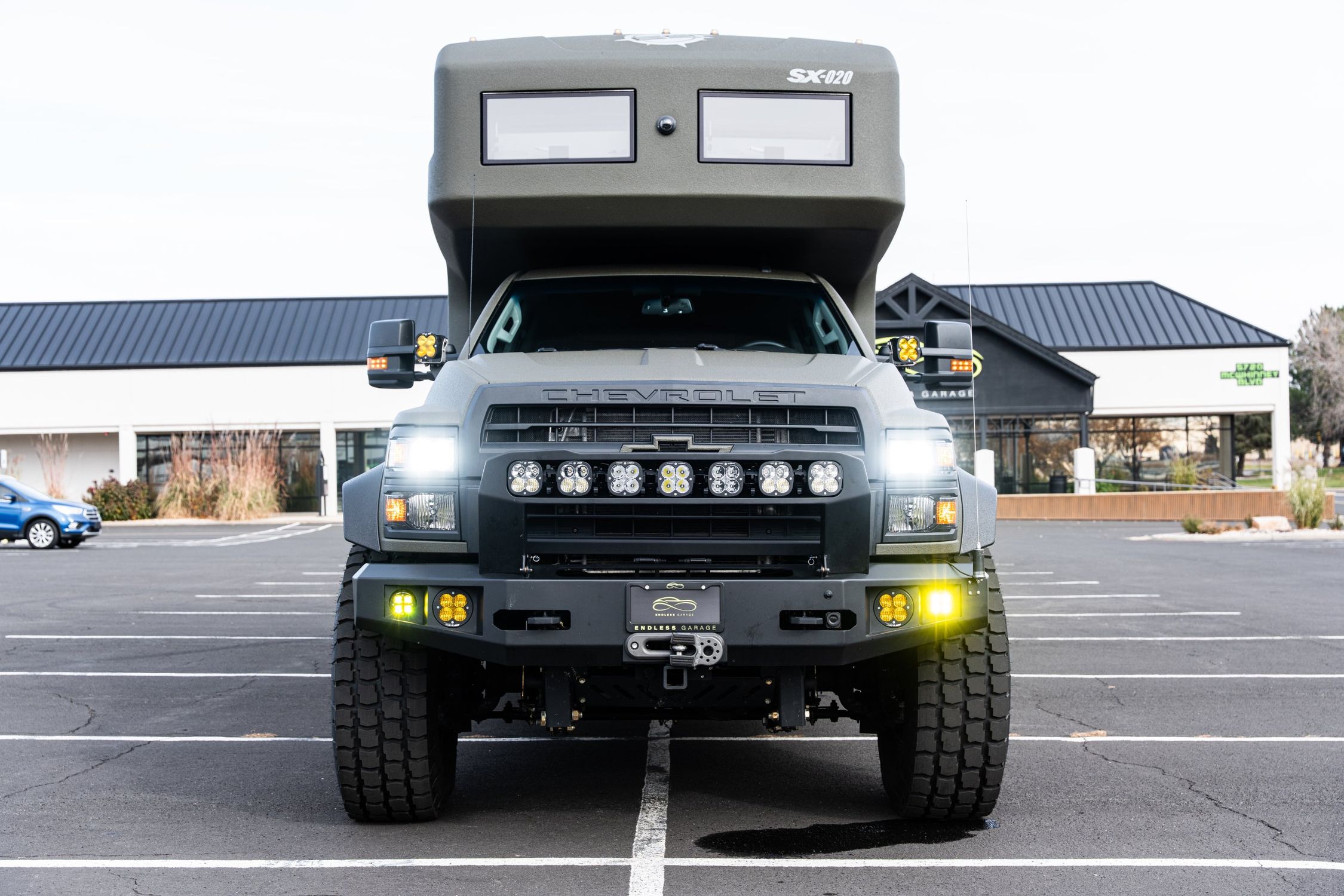

• 7 linked 6” round LED light bar

• 4” round LED fog lights

• 6” round LED driving lights

• Exterior LED lighting with dimmers

• LED lighting in passthrough storage area

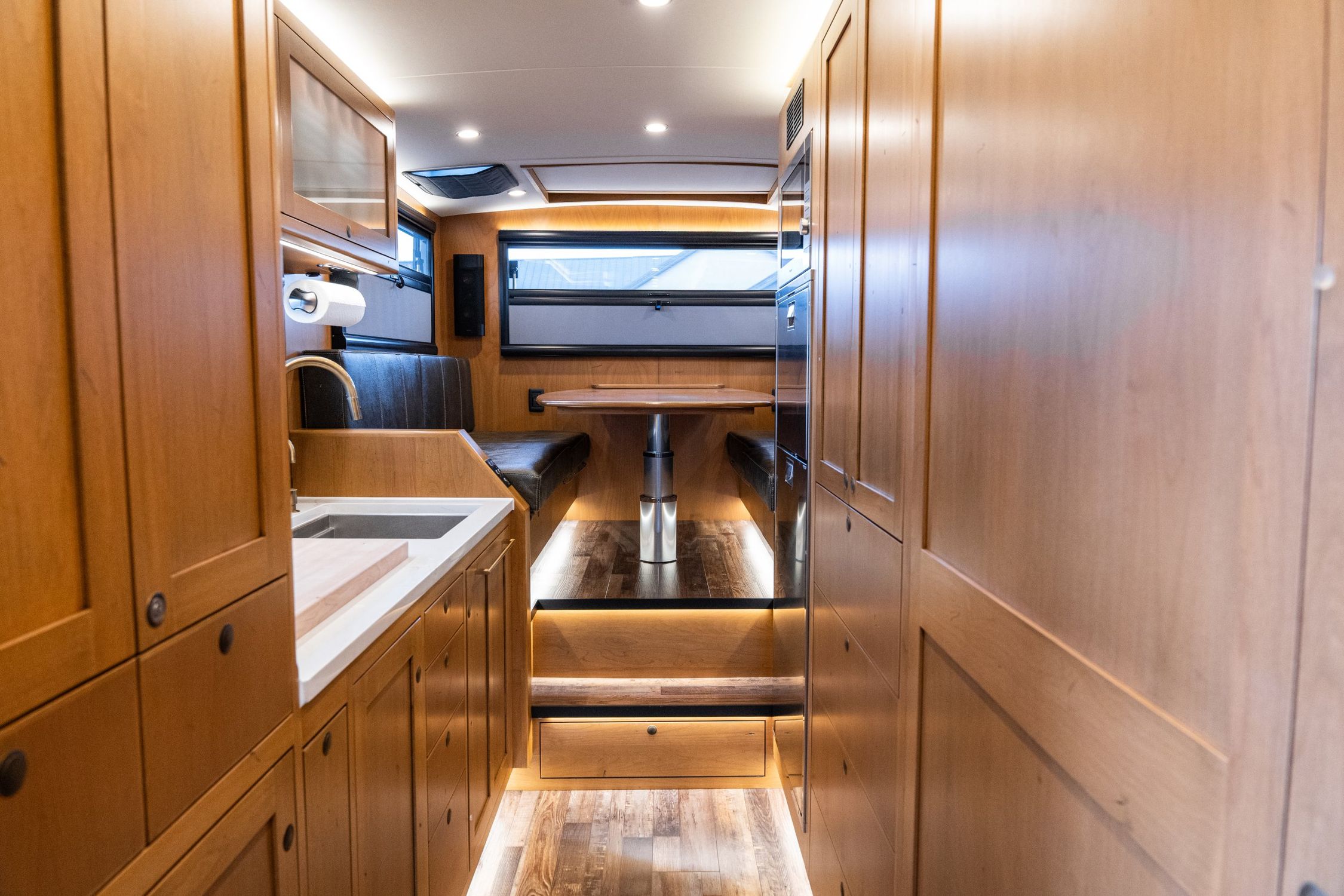

Interior

• Dining Table with seating for 6 that converts to a California King (72” x 84”) sized sleeping area

• Vaulted ceilings w/premium soft touch headliner

• Cedar lined closet w/shelves, hanging rod and full-length mirror

• Stainless Steel Toe Kicks

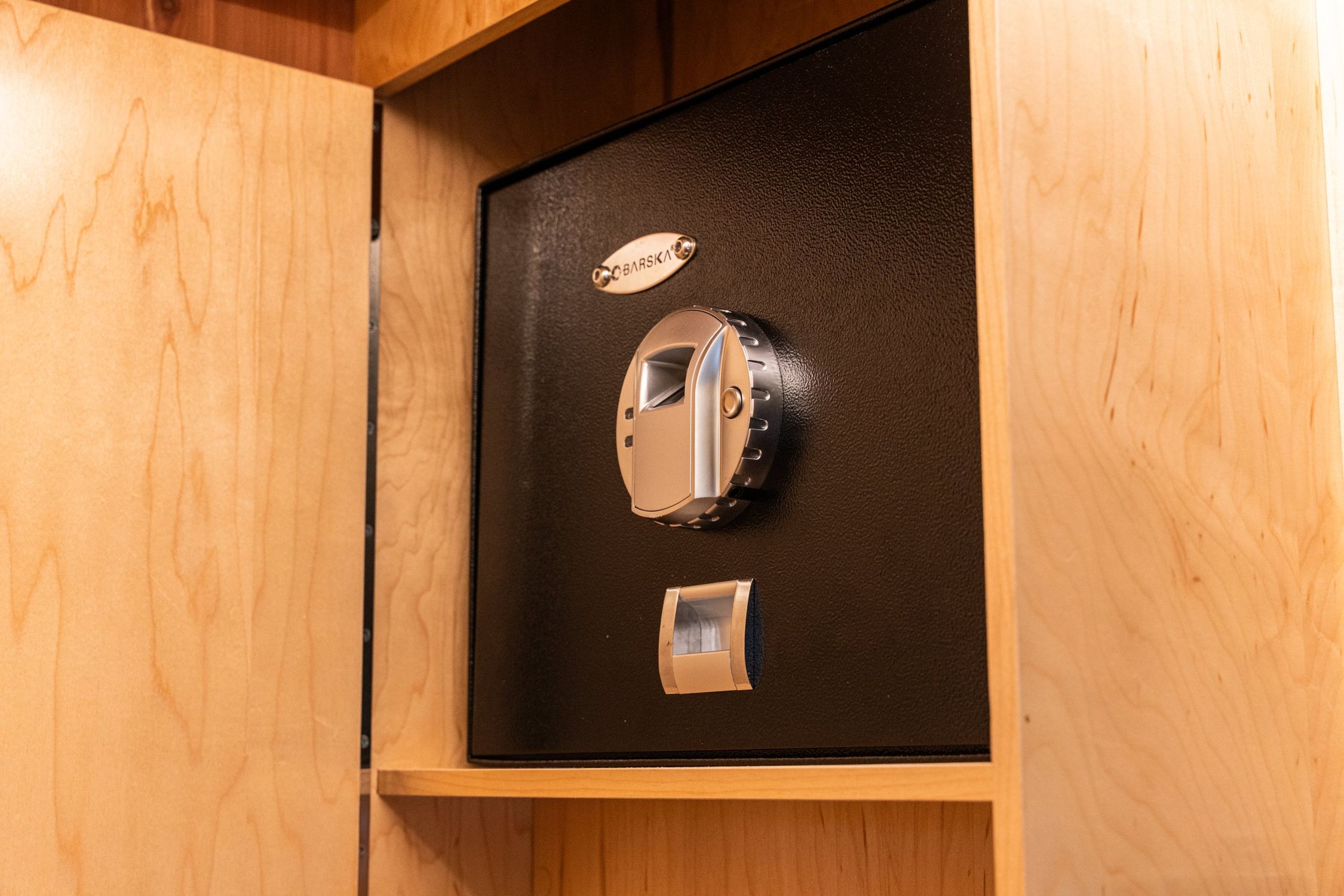

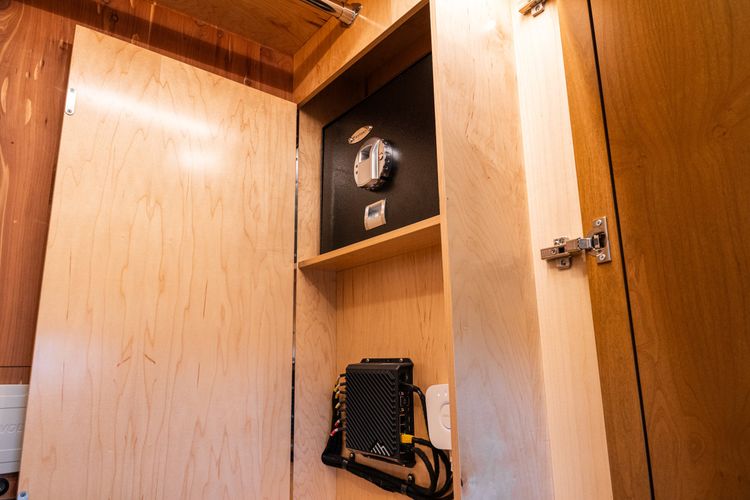

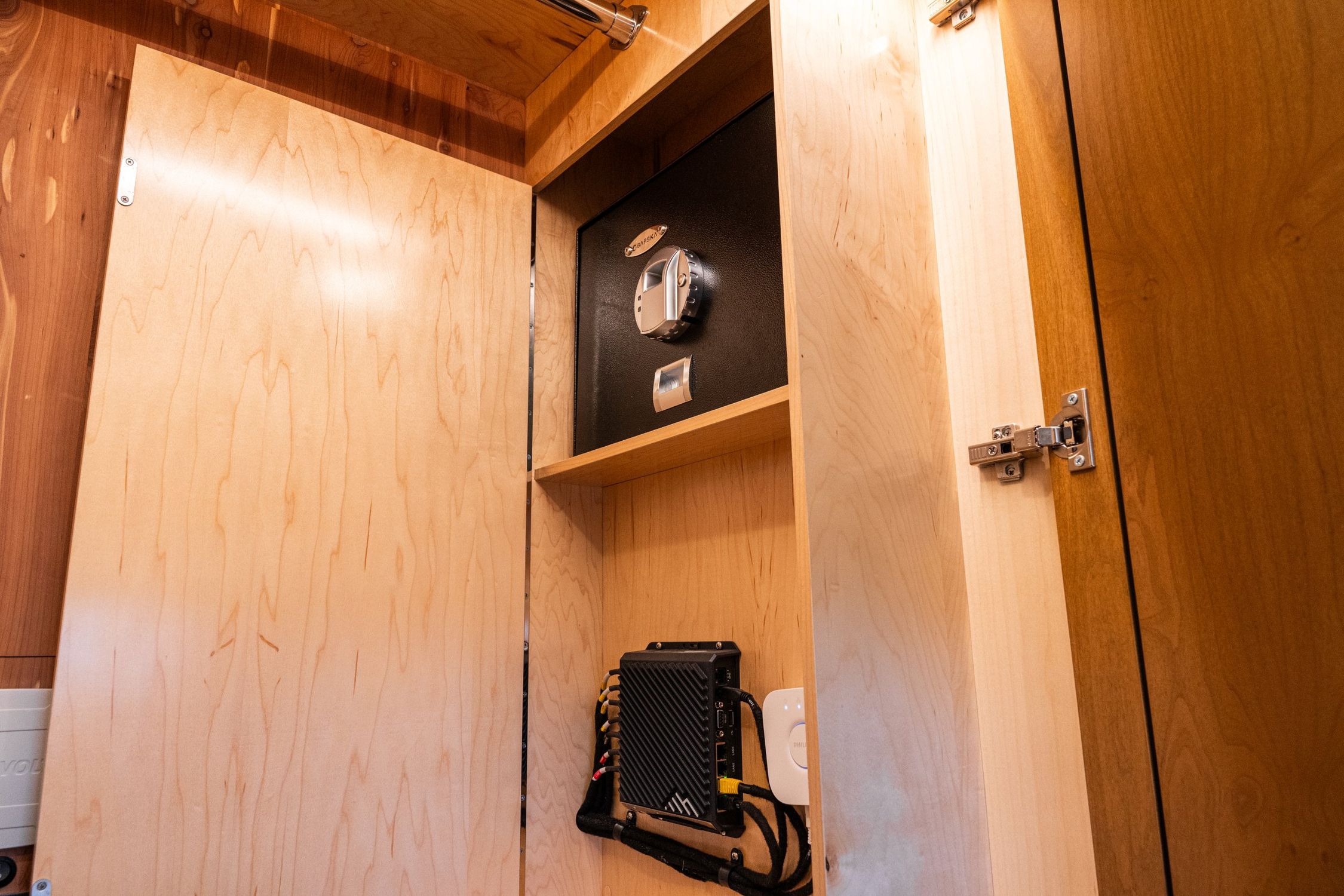

• Biometric hidden safe

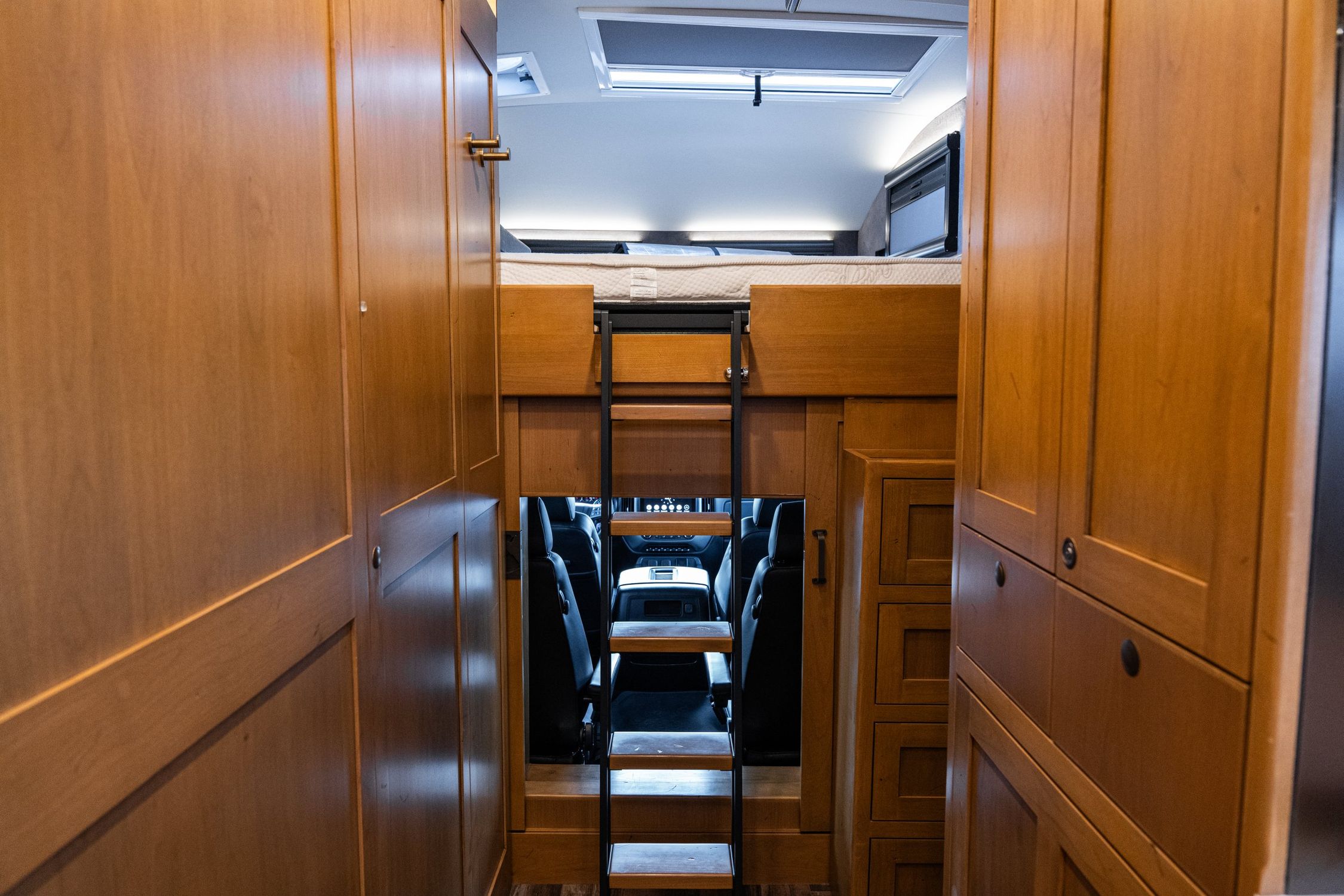

• Assist handle to make bunk access easier and safer

• Chilewich Plynyl or CaliVinyl Pro flooring

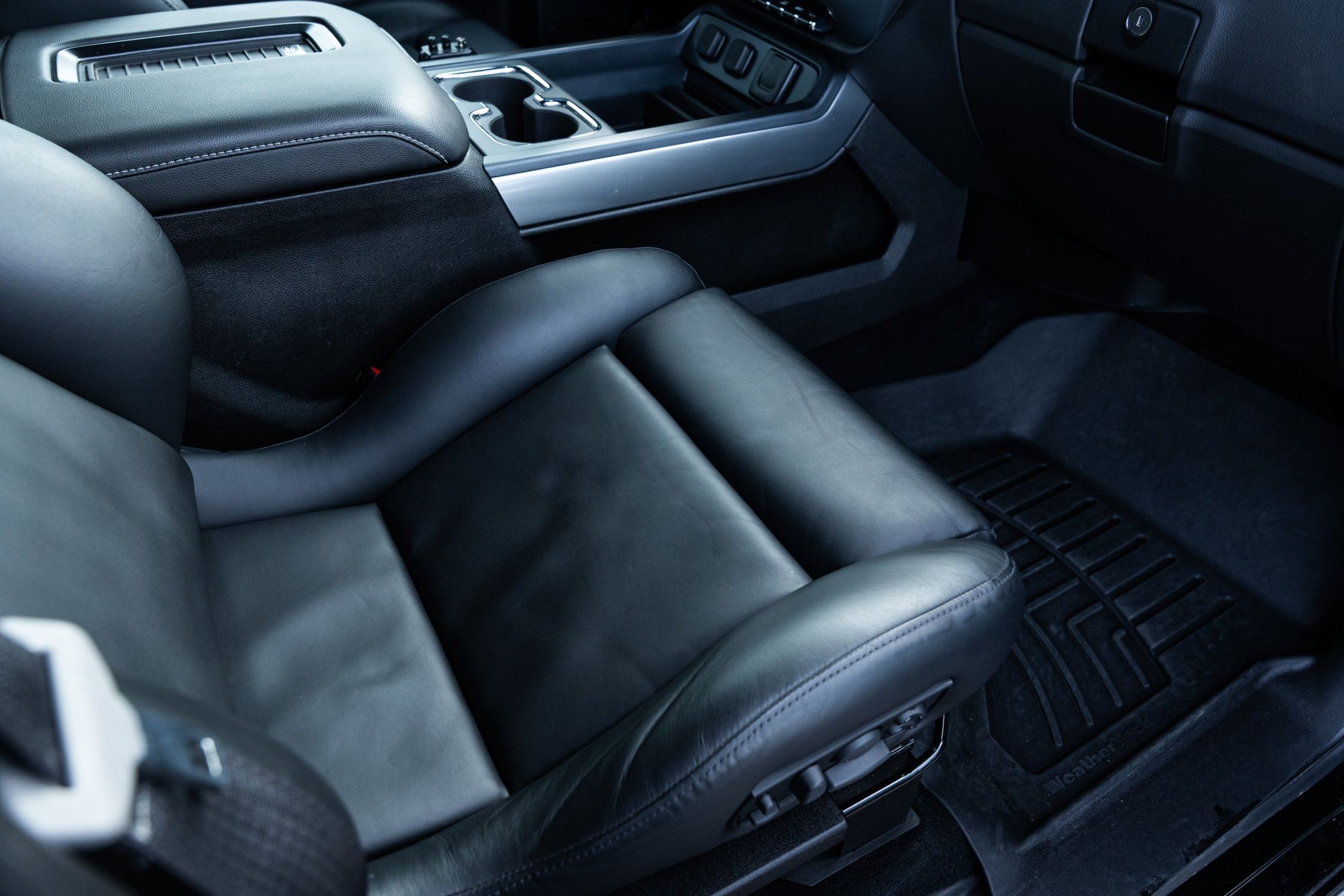

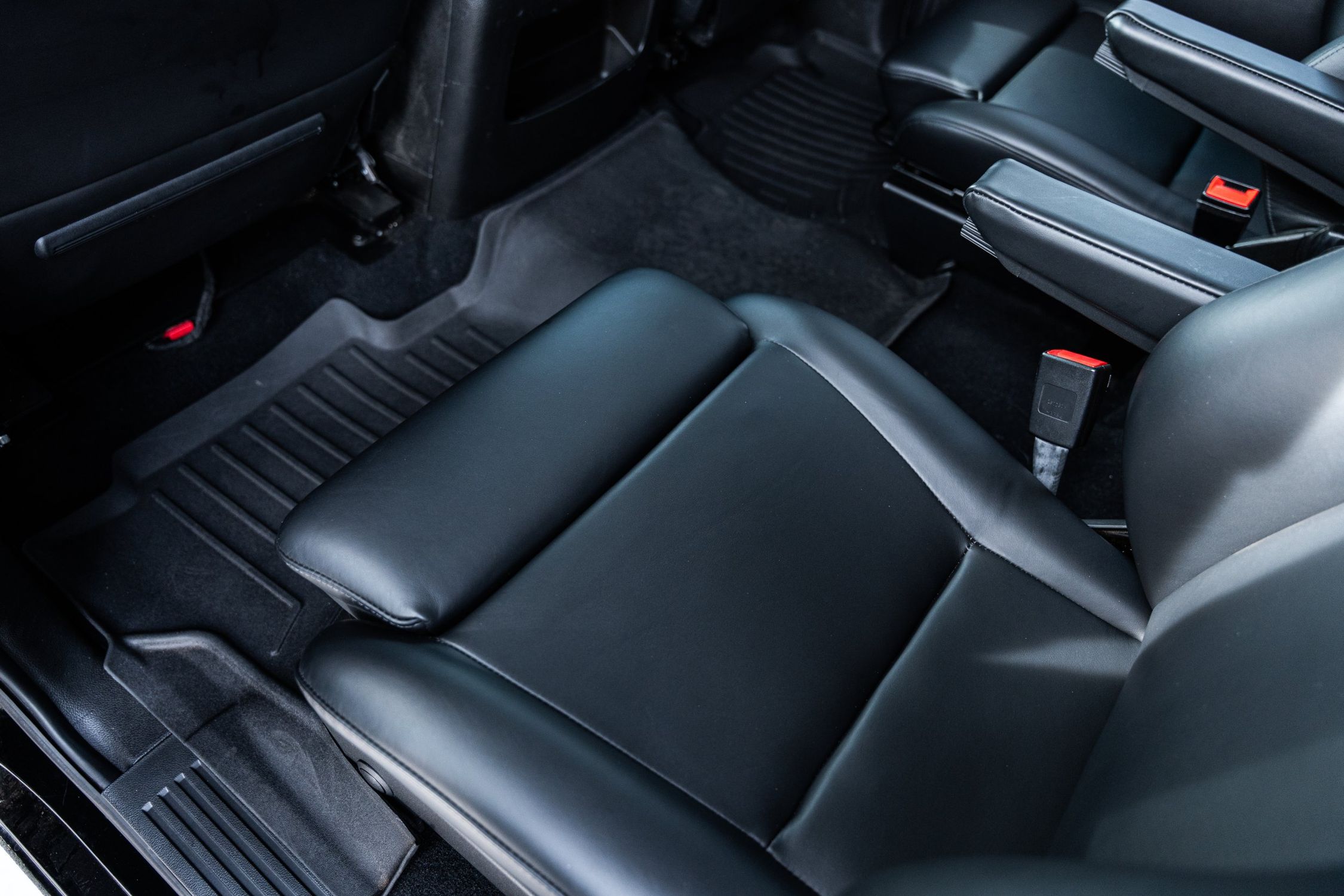

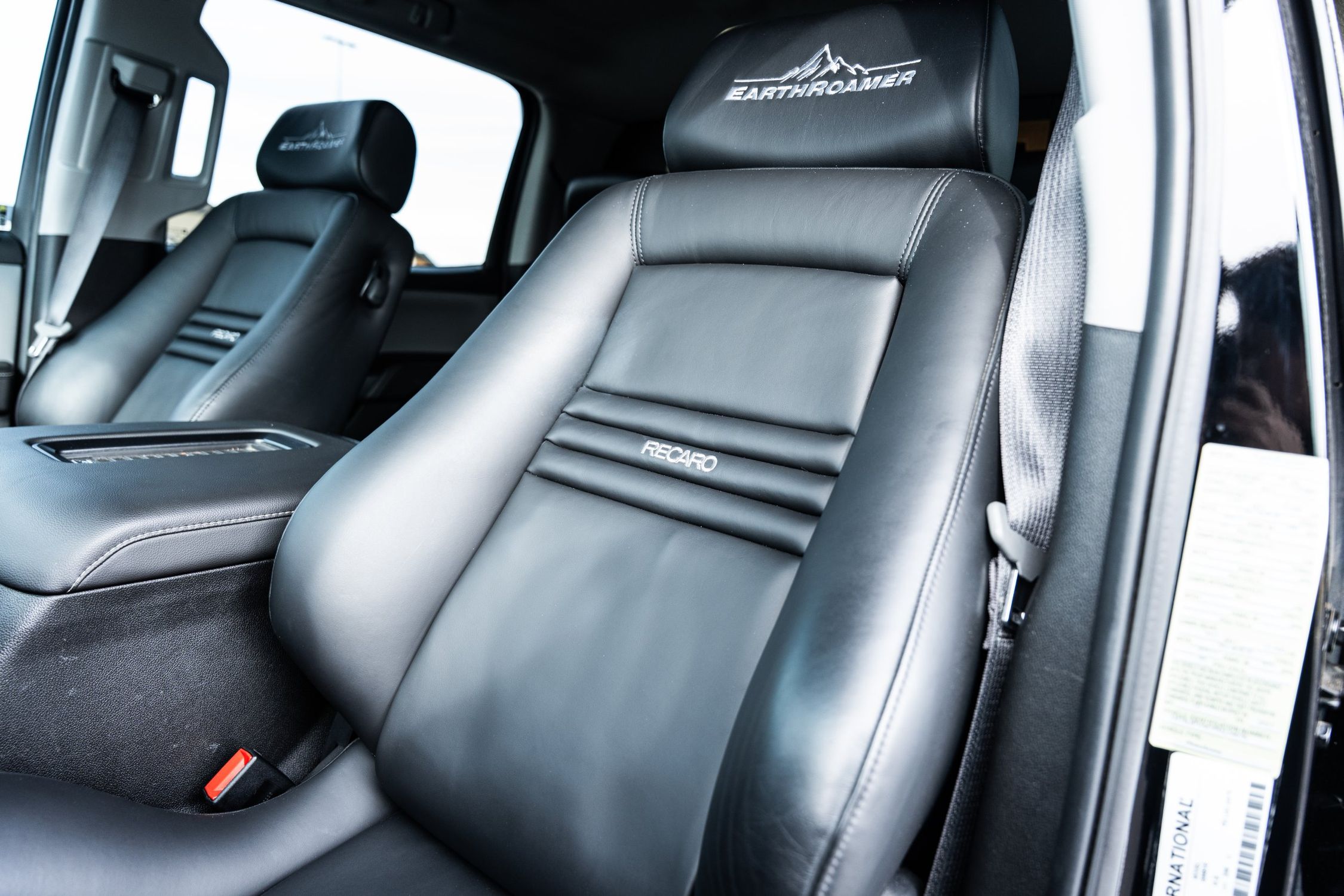

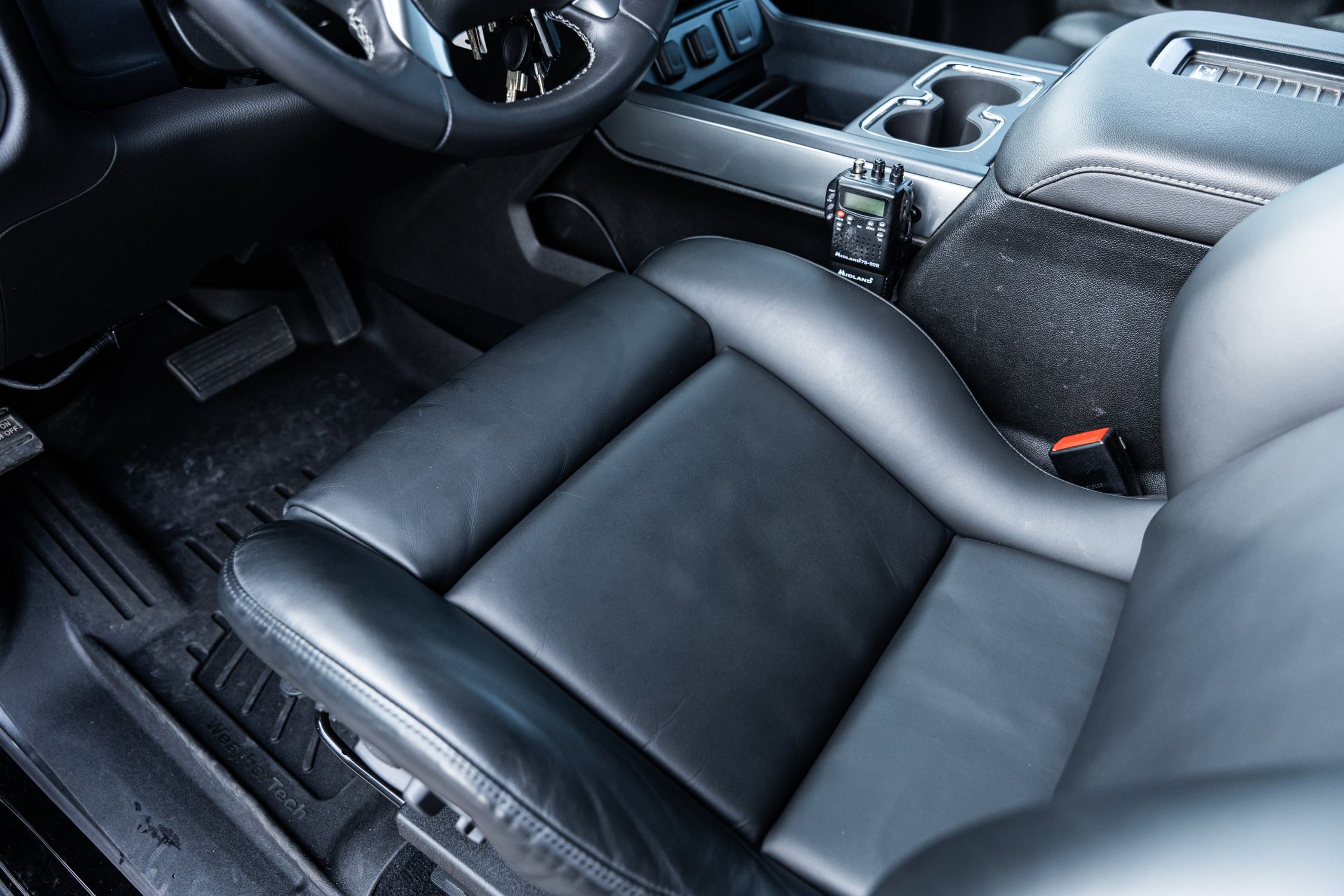

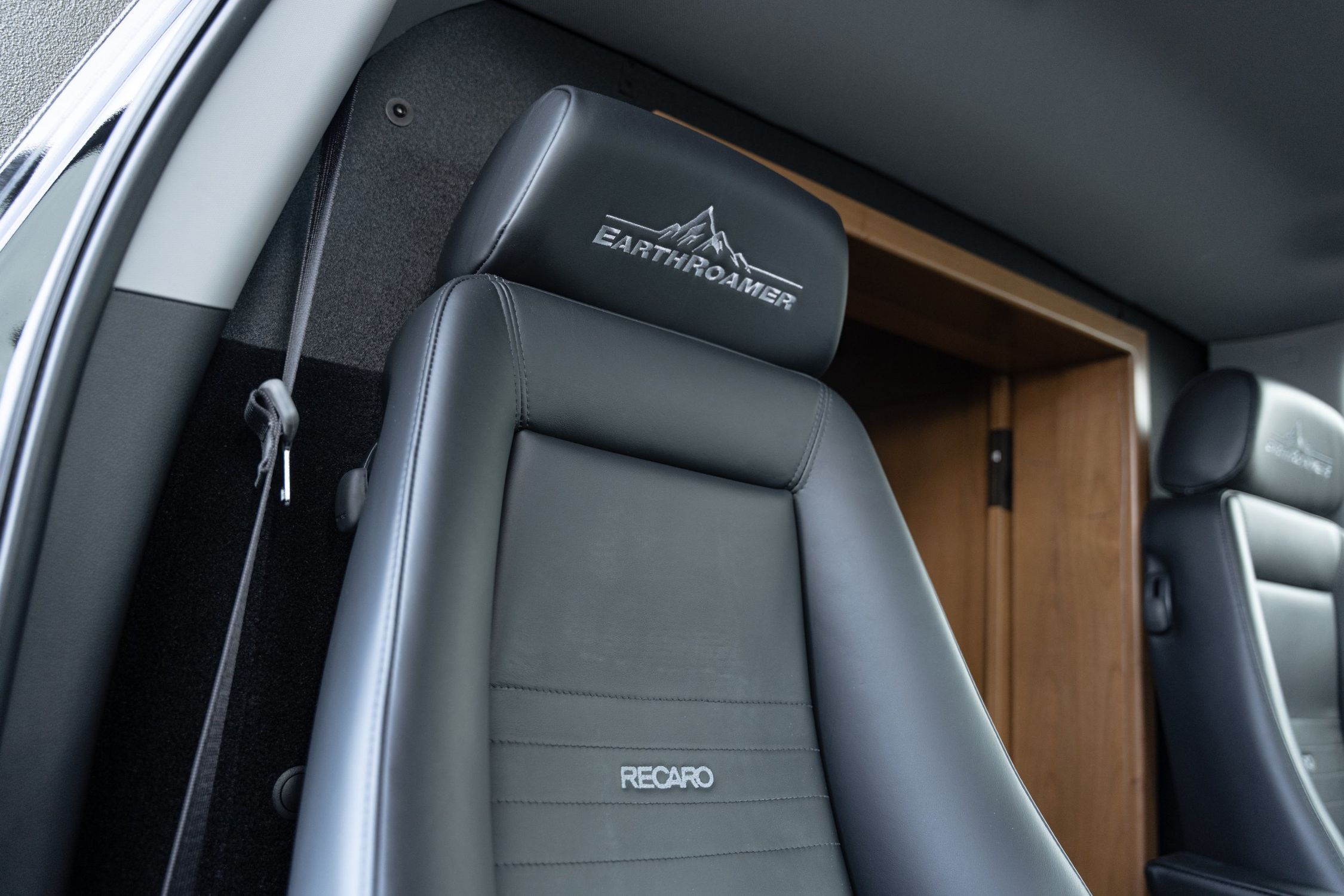

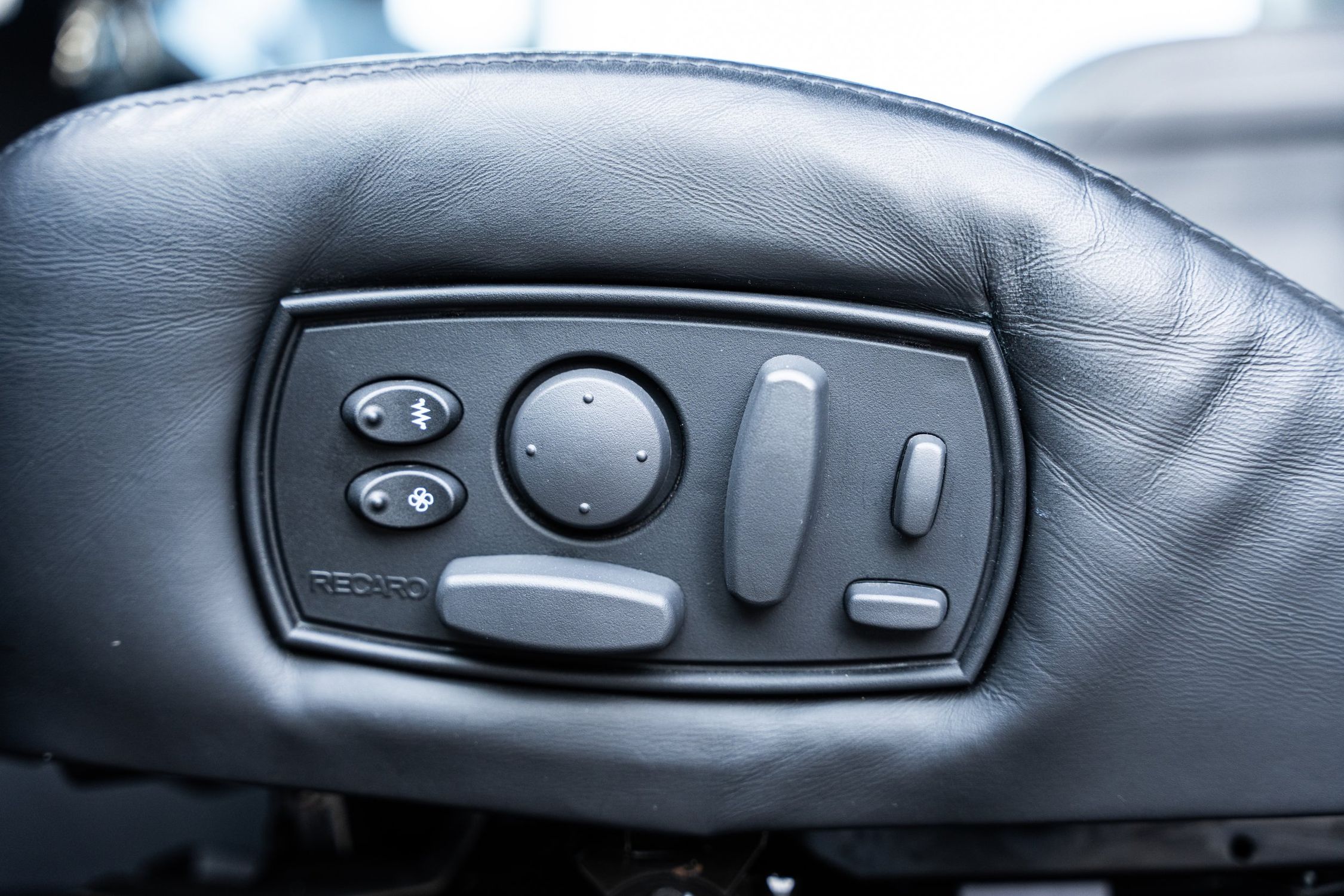

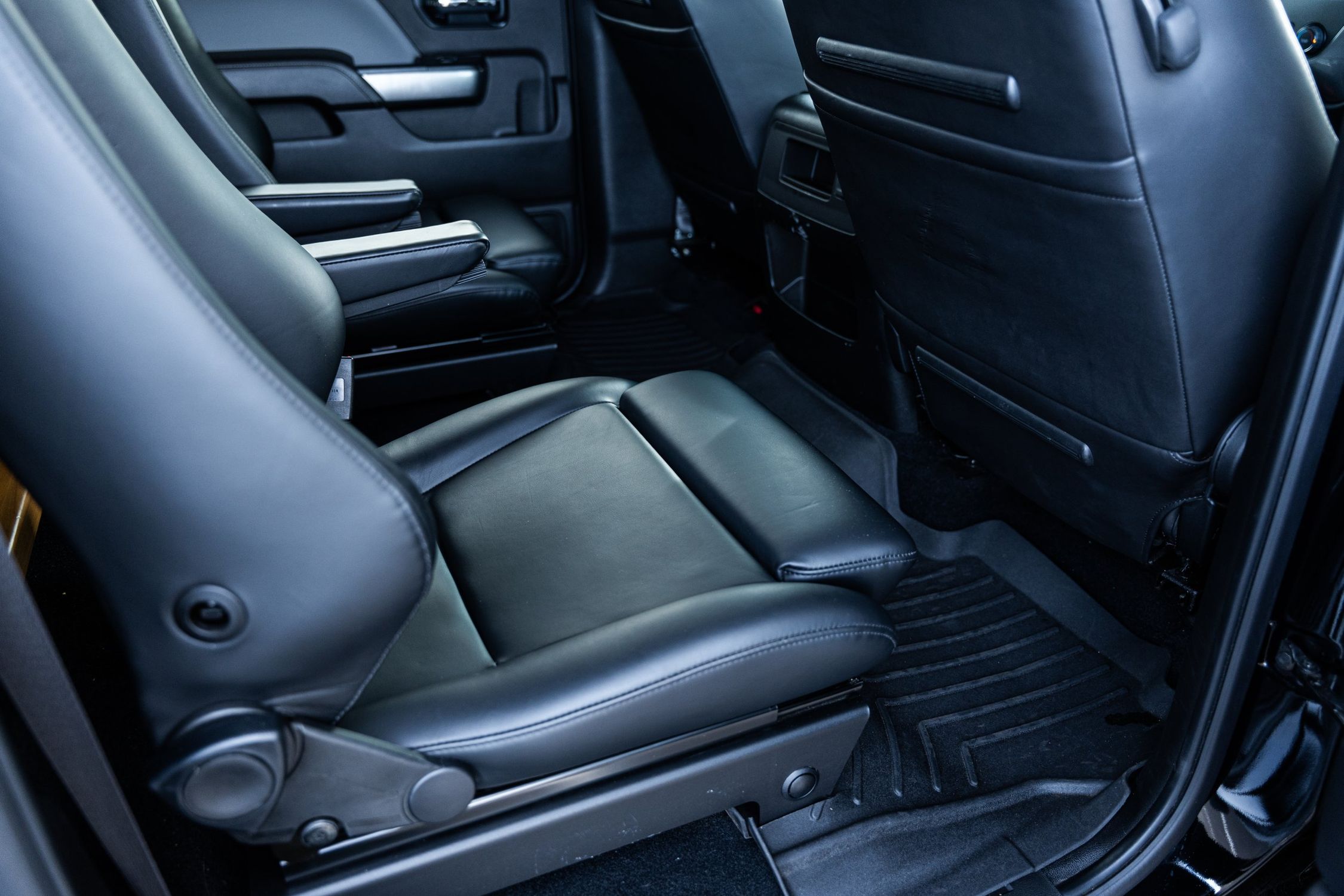

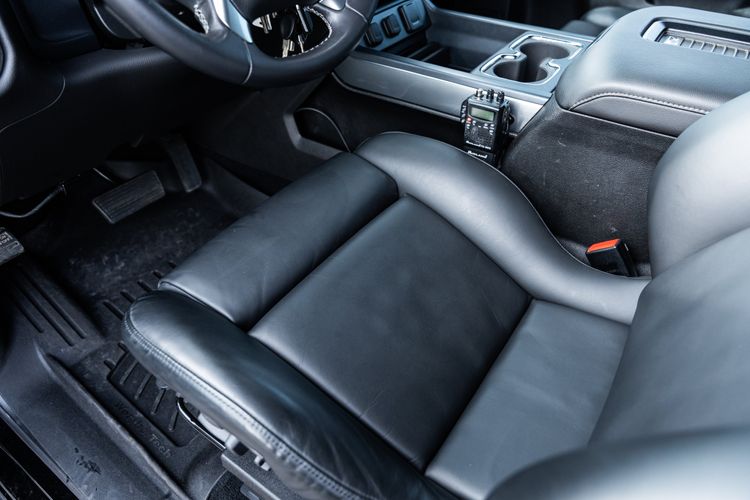

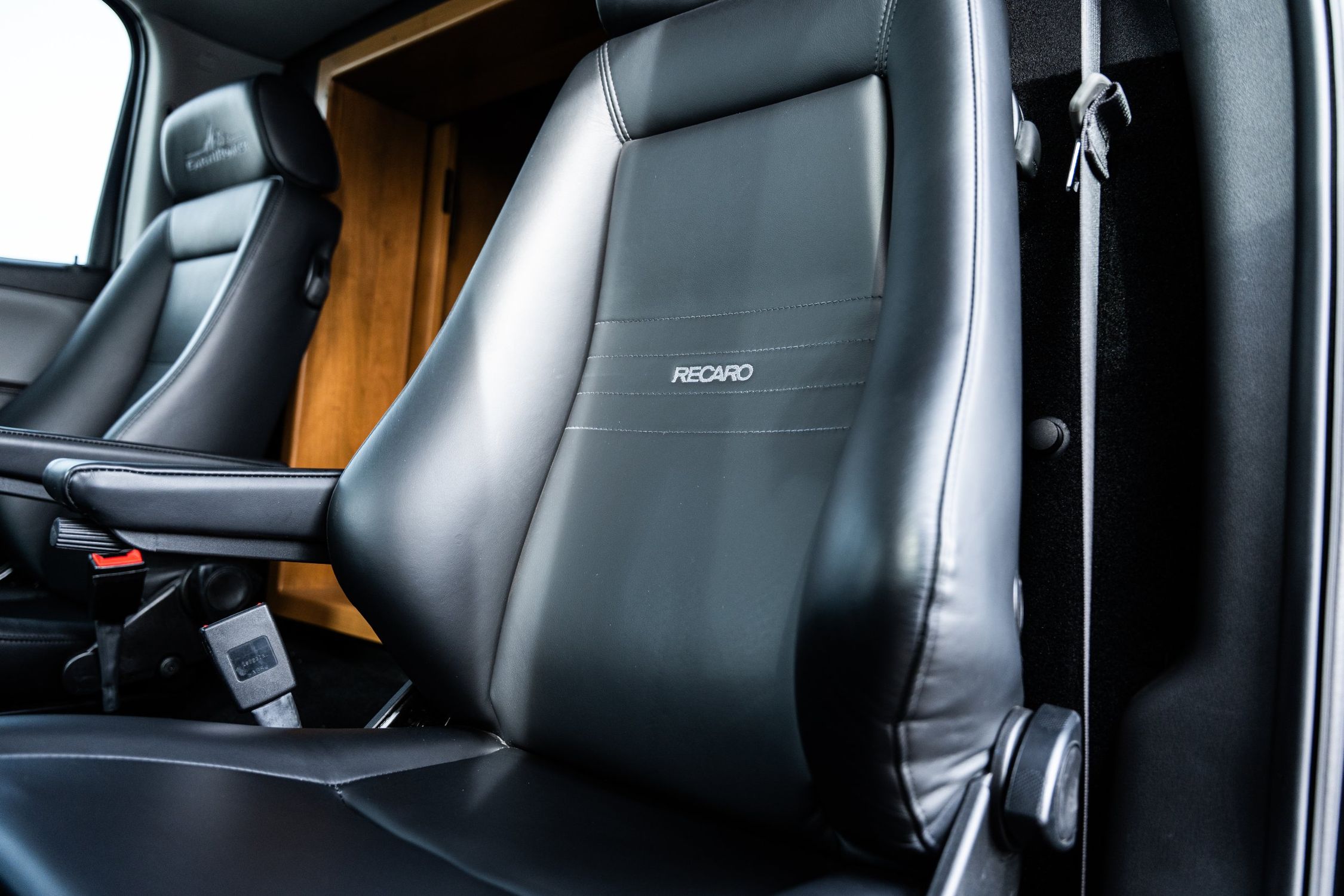

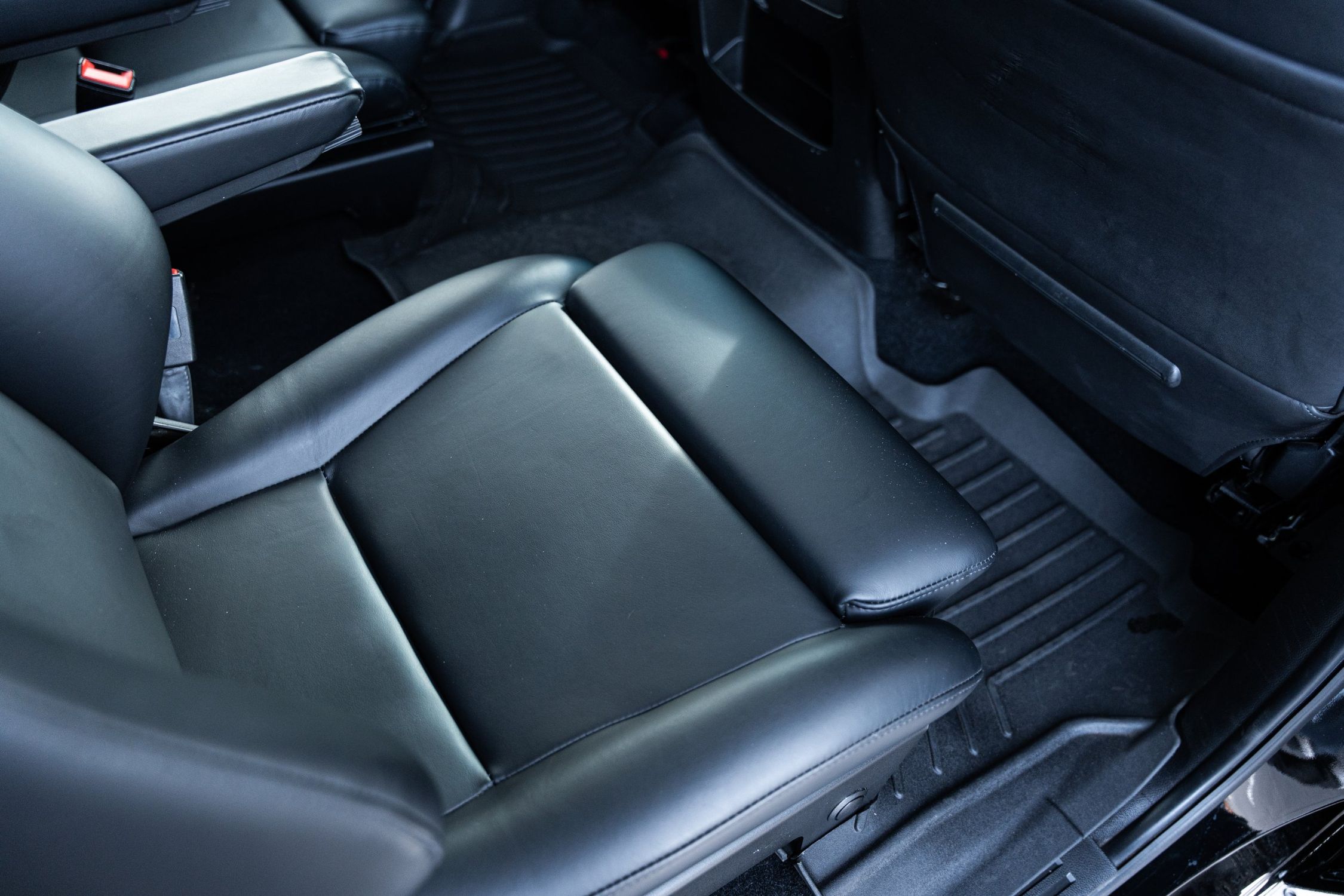

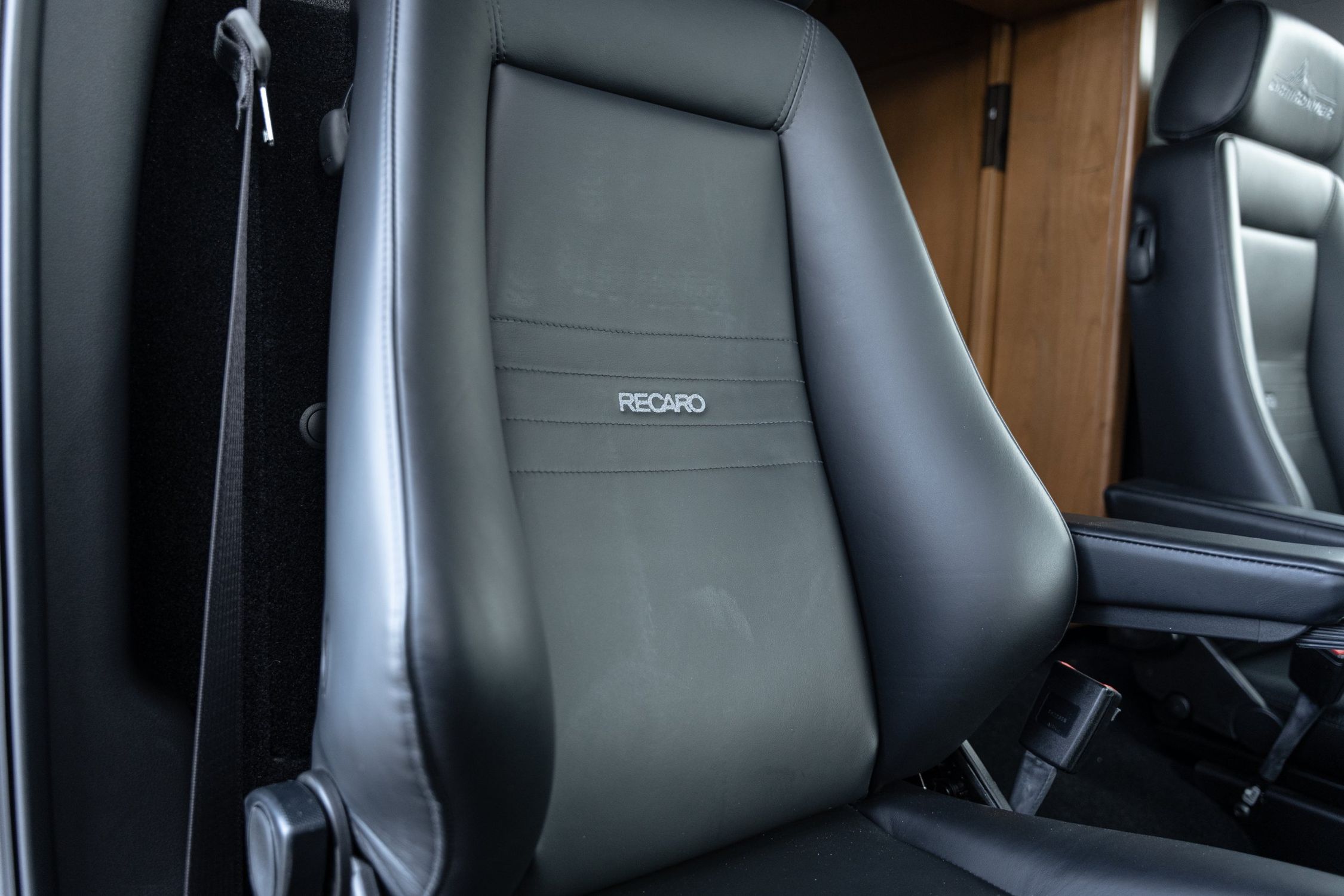

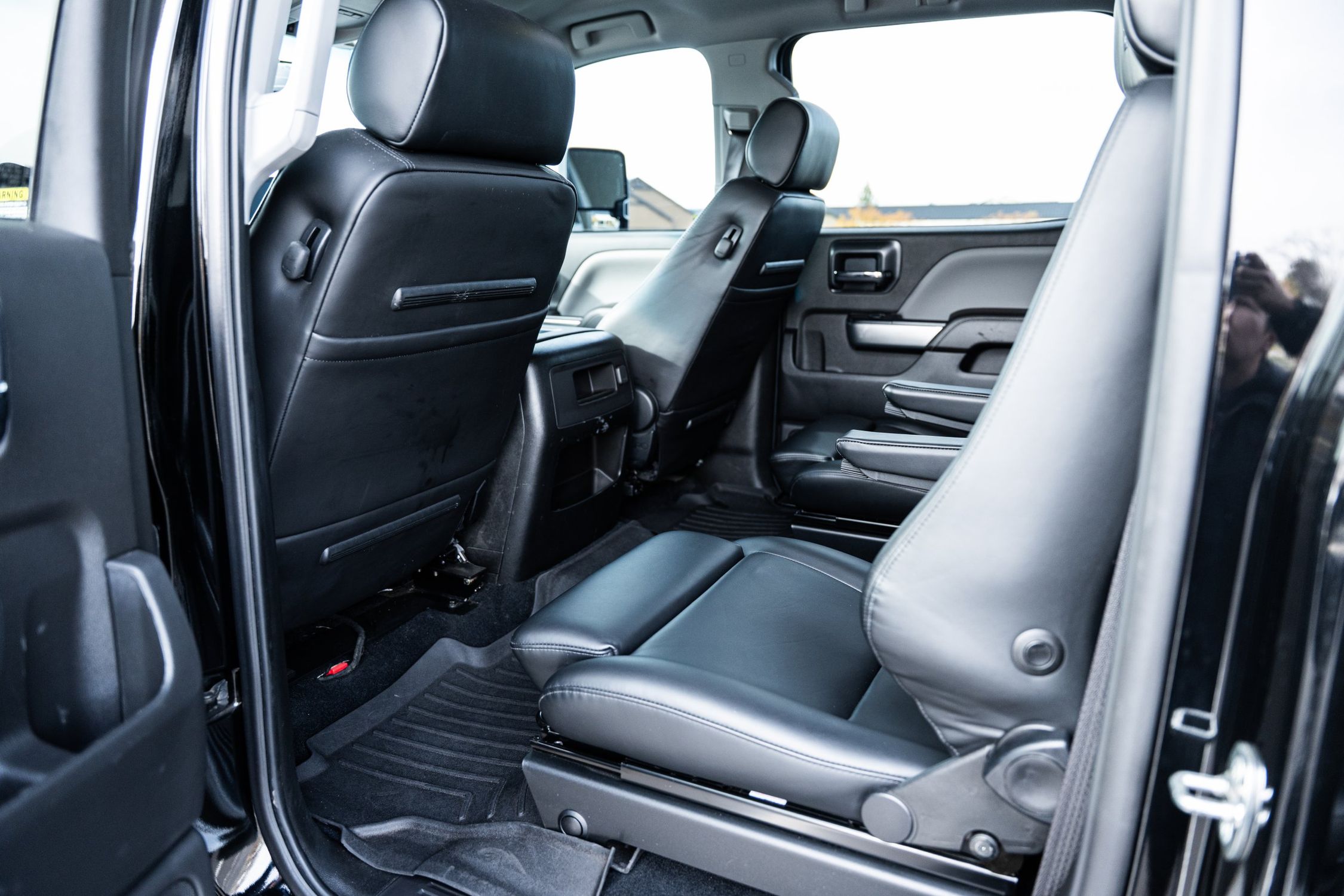

• Premium leather seat covering

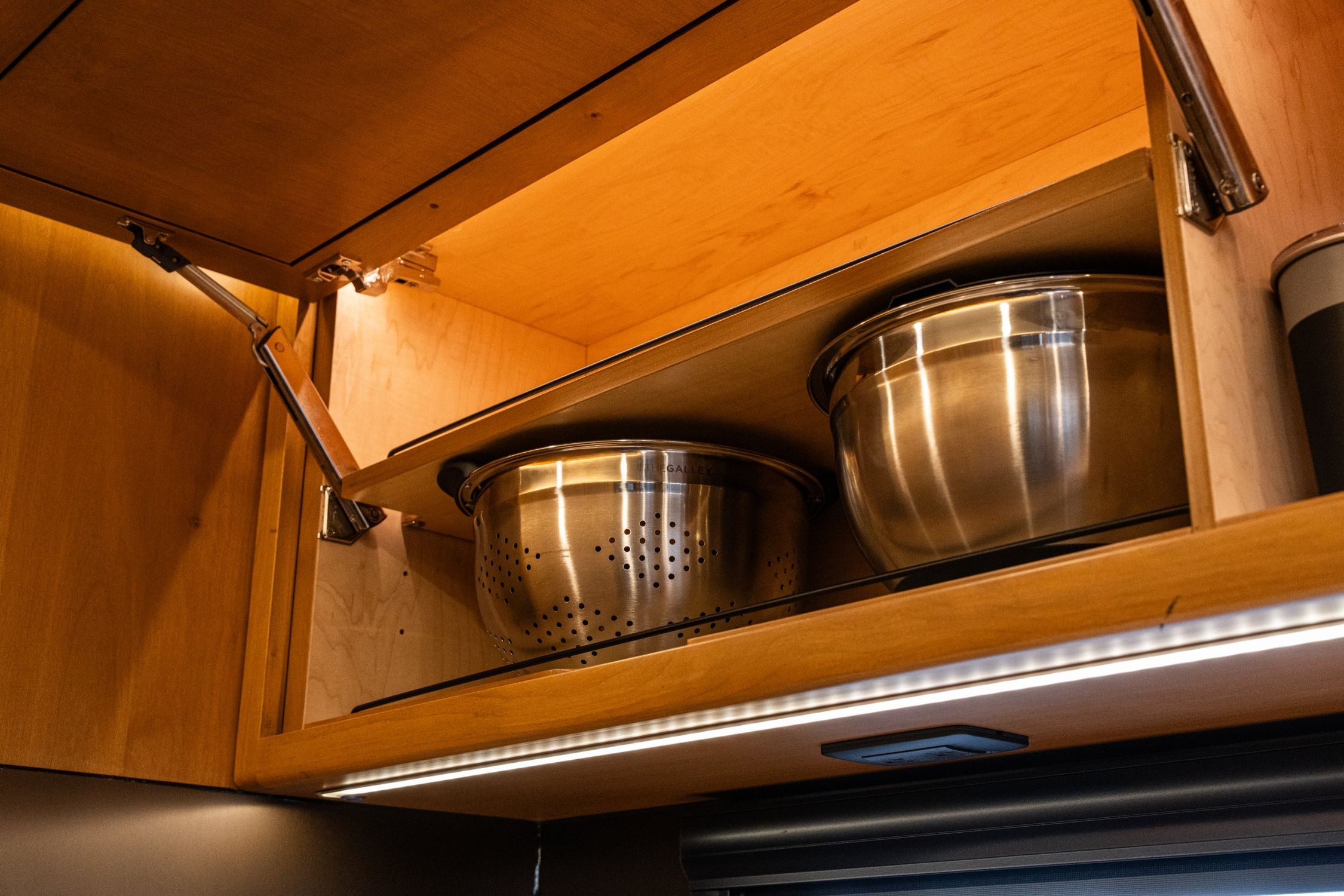

• Maple hardwood cabinetry with premium finish

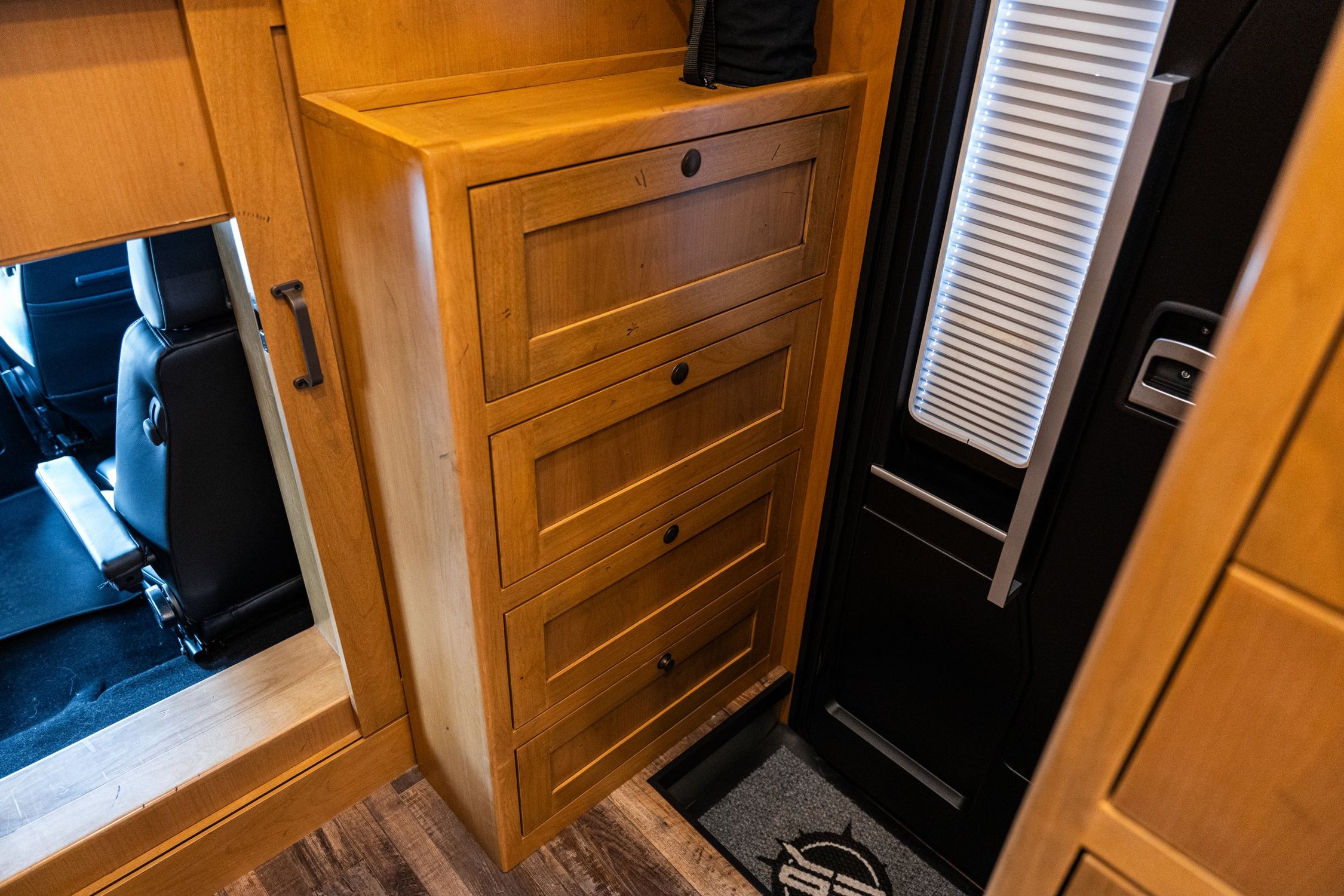

• Hardwood dovetail drawers (rear storage and galley)

• Fully machined, metal push button latches throughout

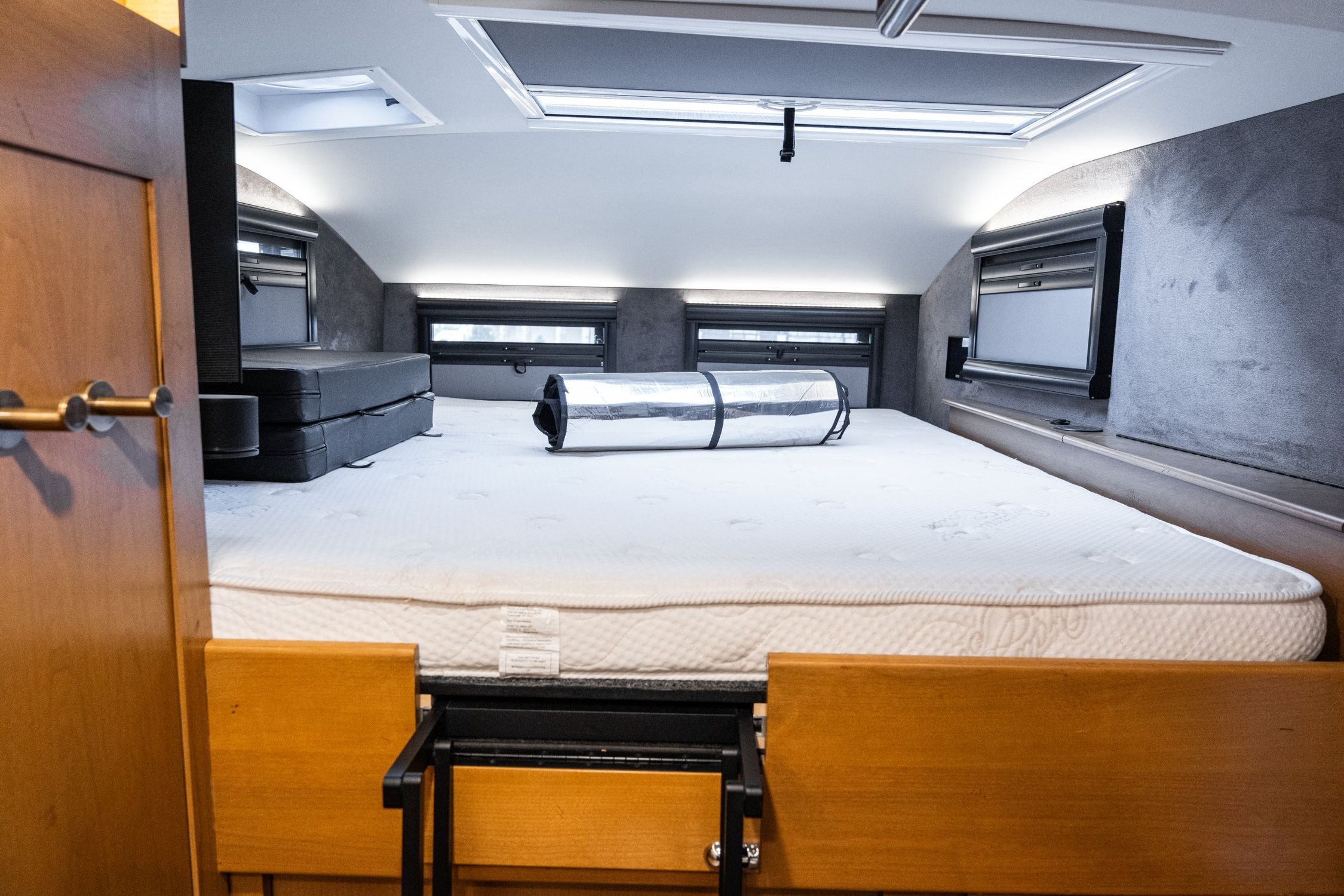

• California King (72” x 84”) memory foam mattress

Interior Lighting

• Dimmable LED overhead lighting in living space

• Dimmable LED task lighting

• Dimmable, color changing indirect floor and ceiling lighting

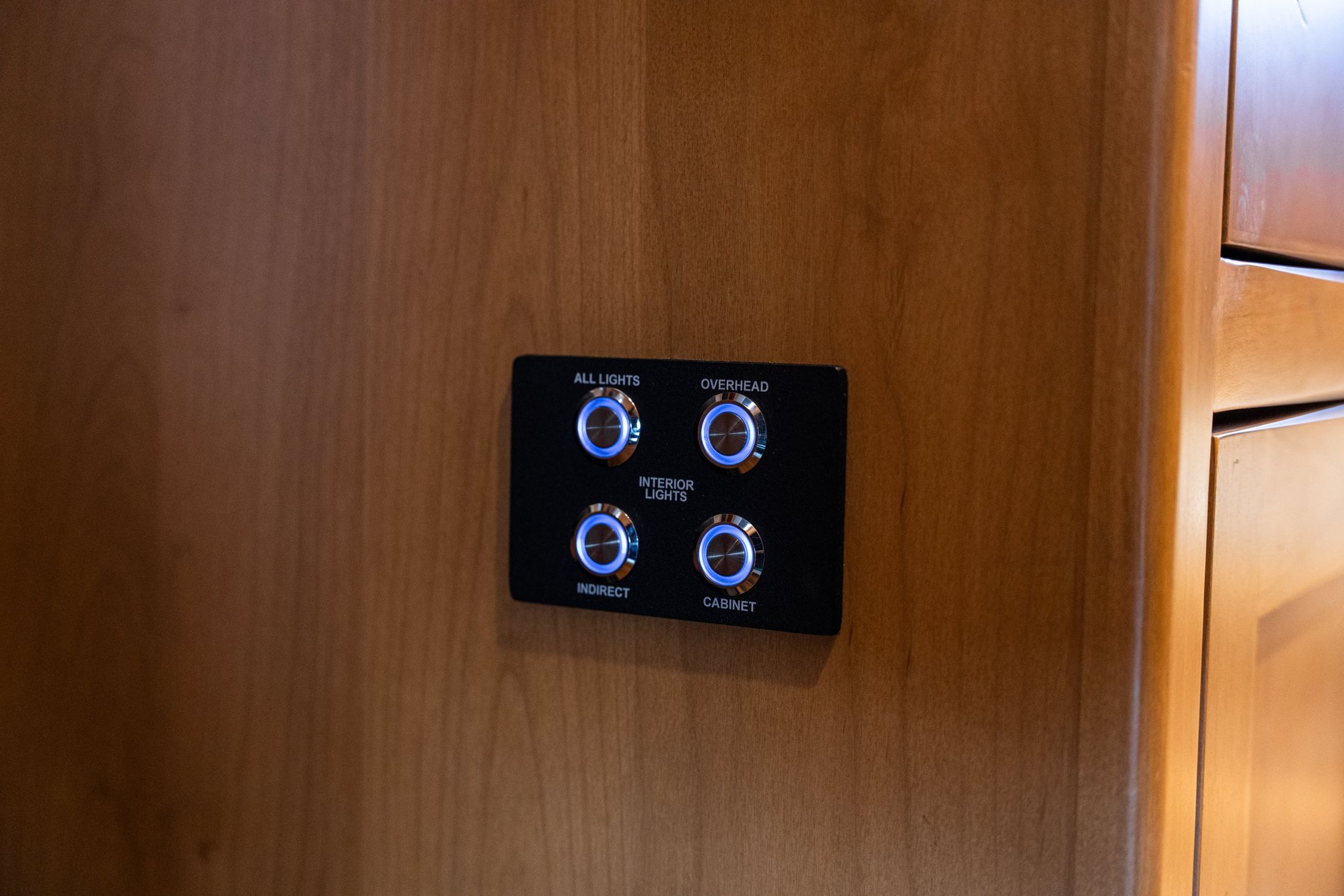

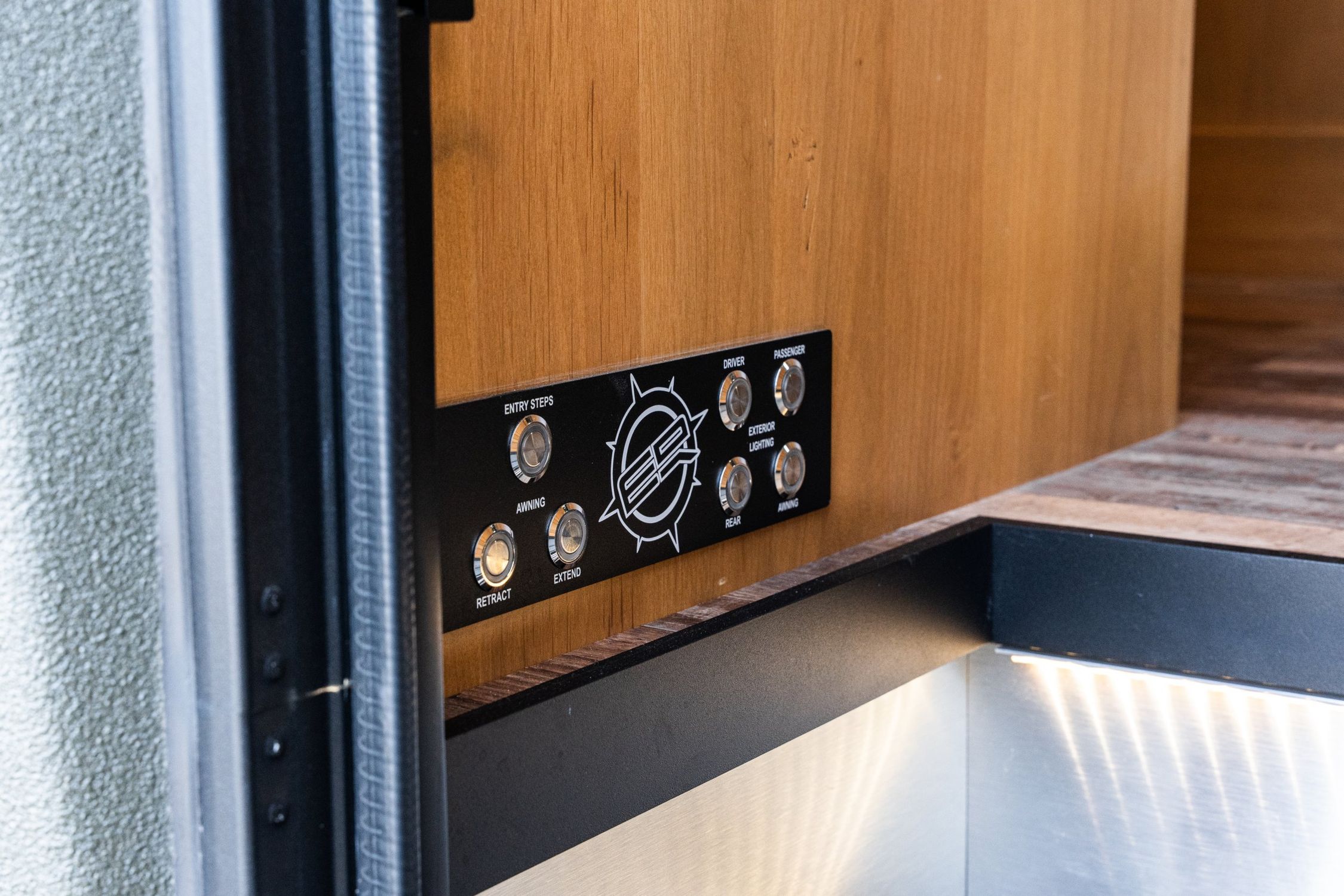

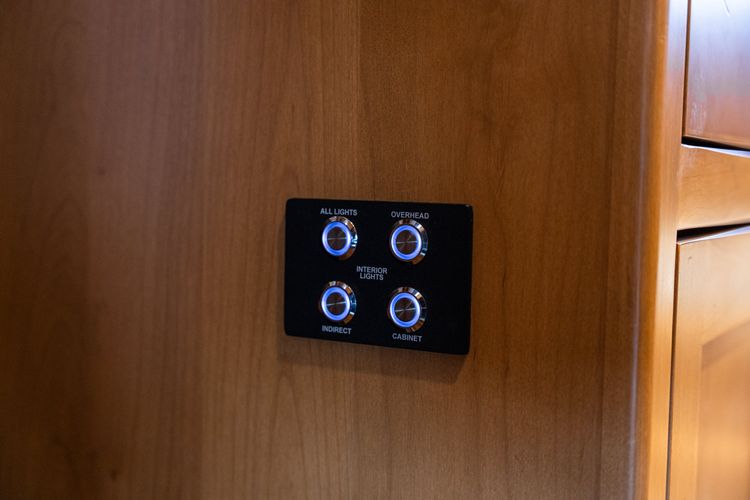

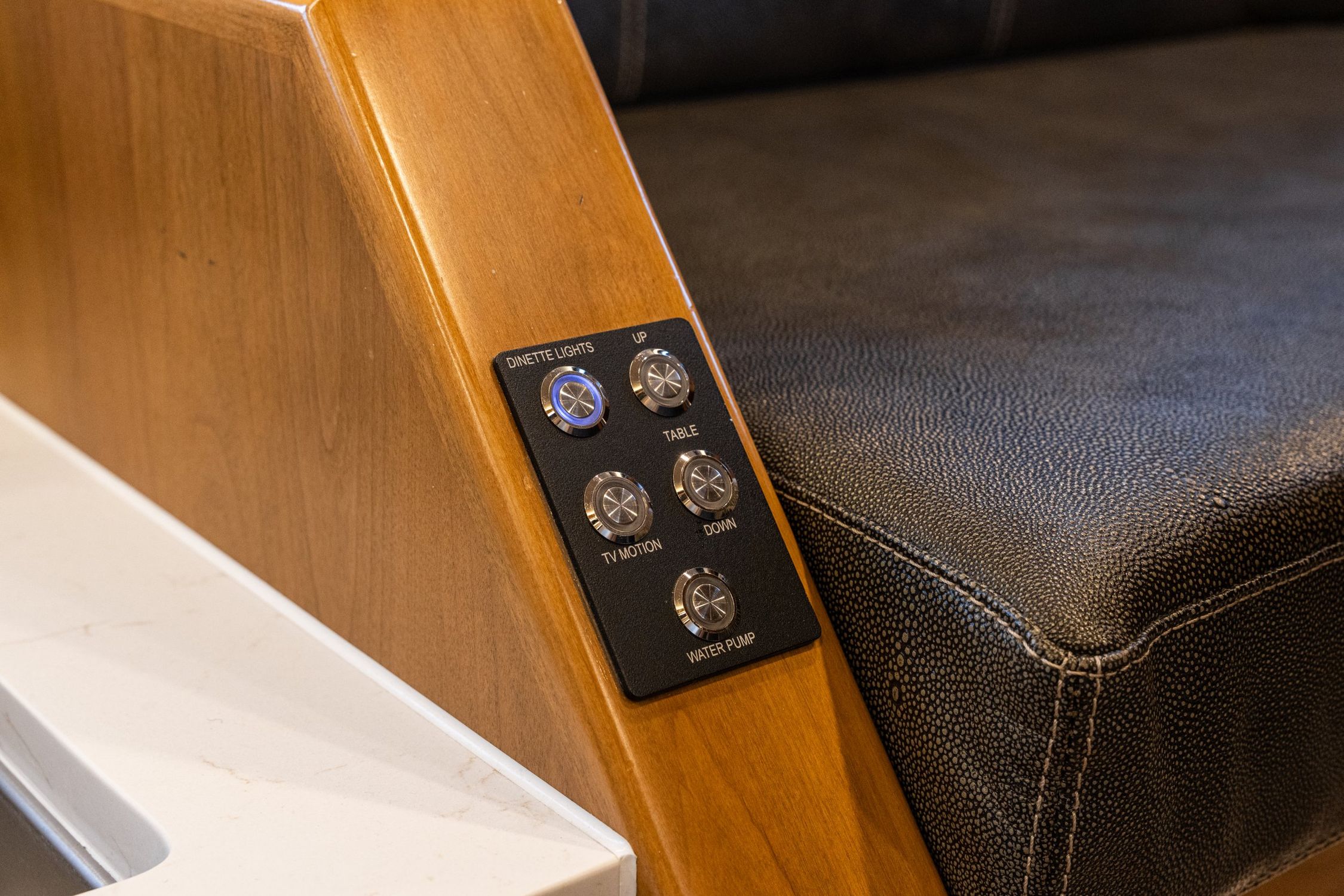

• Switches for above lighting located at entry door, driver seating area and both sides of bunk

• LED reading lights in bunk

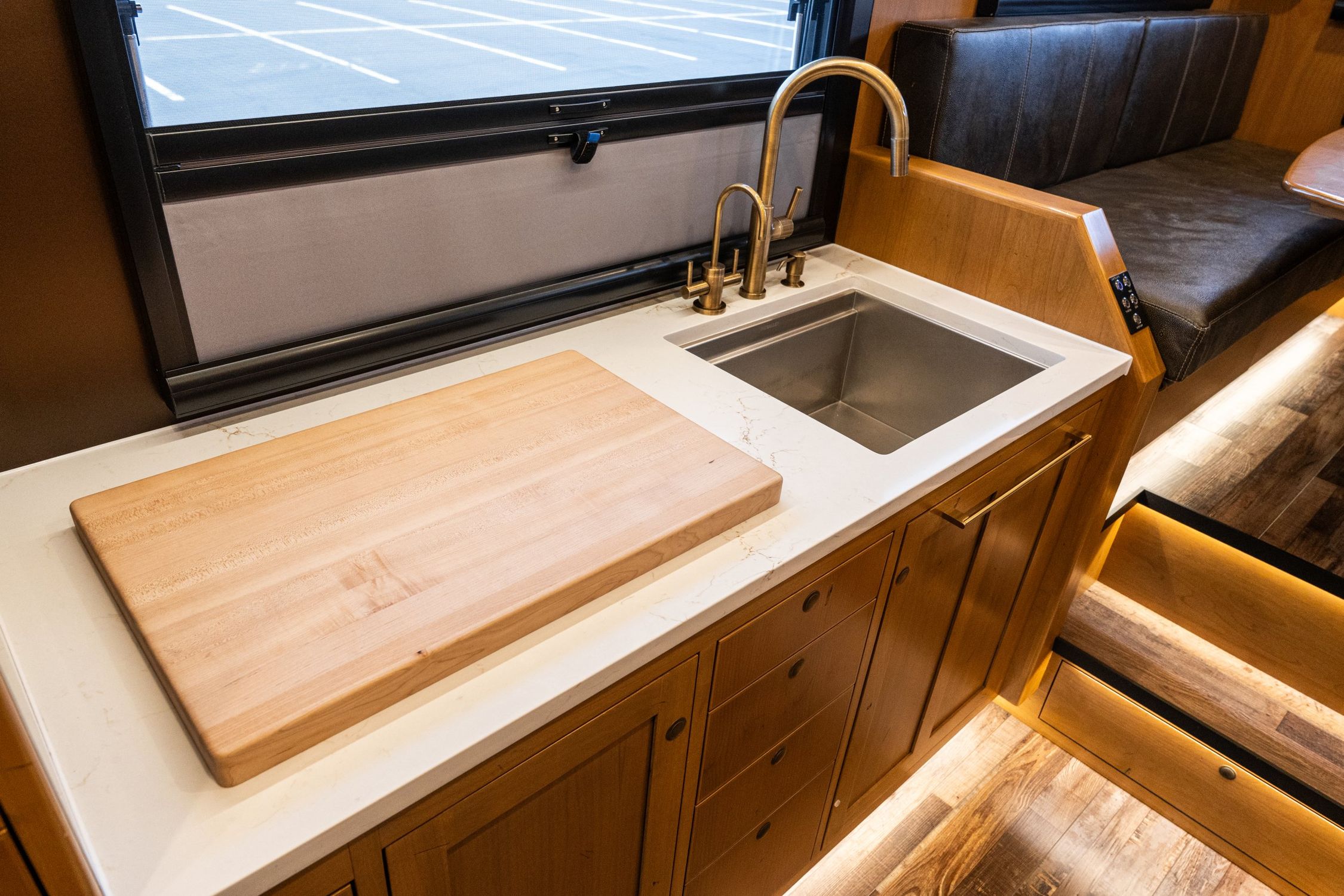

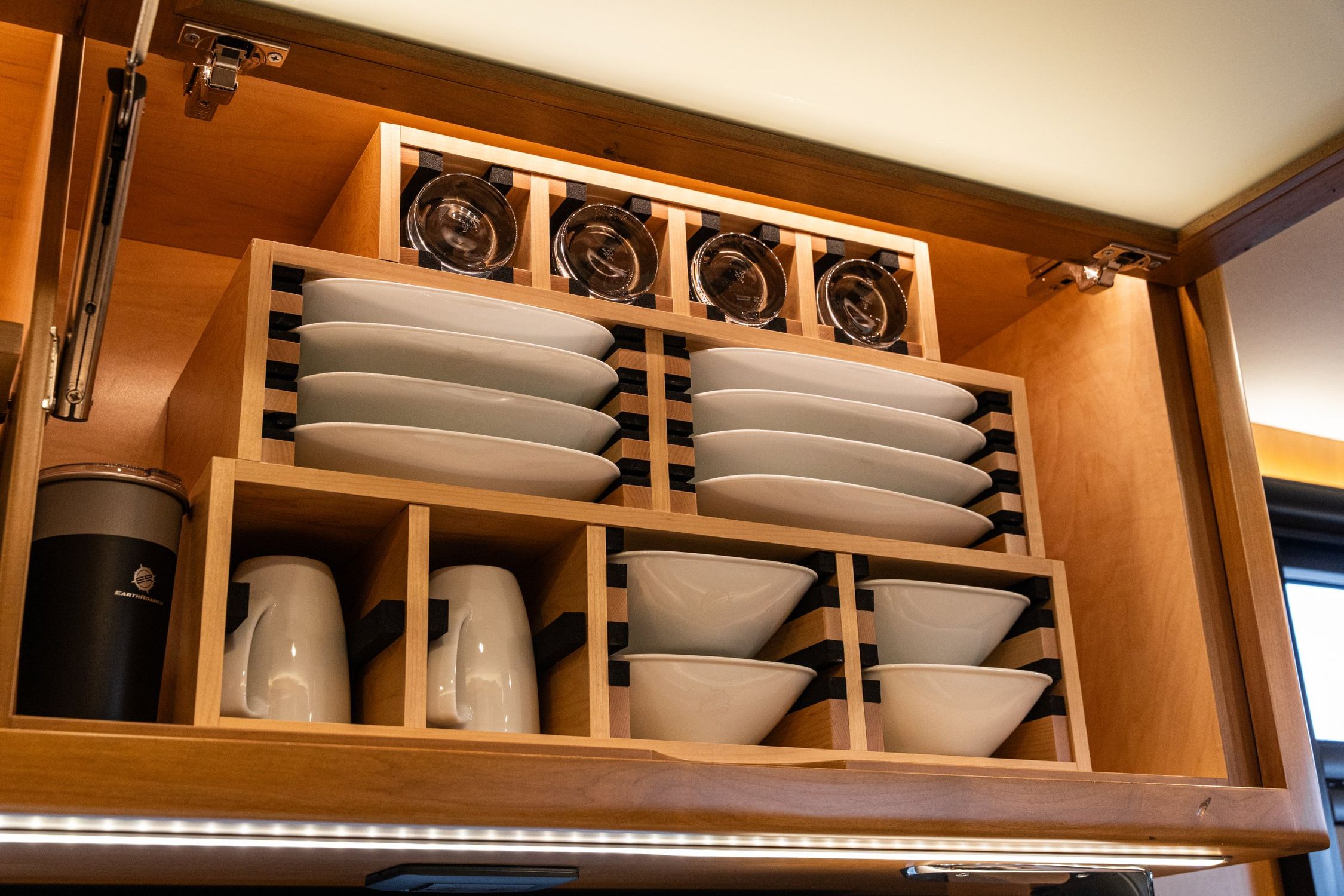

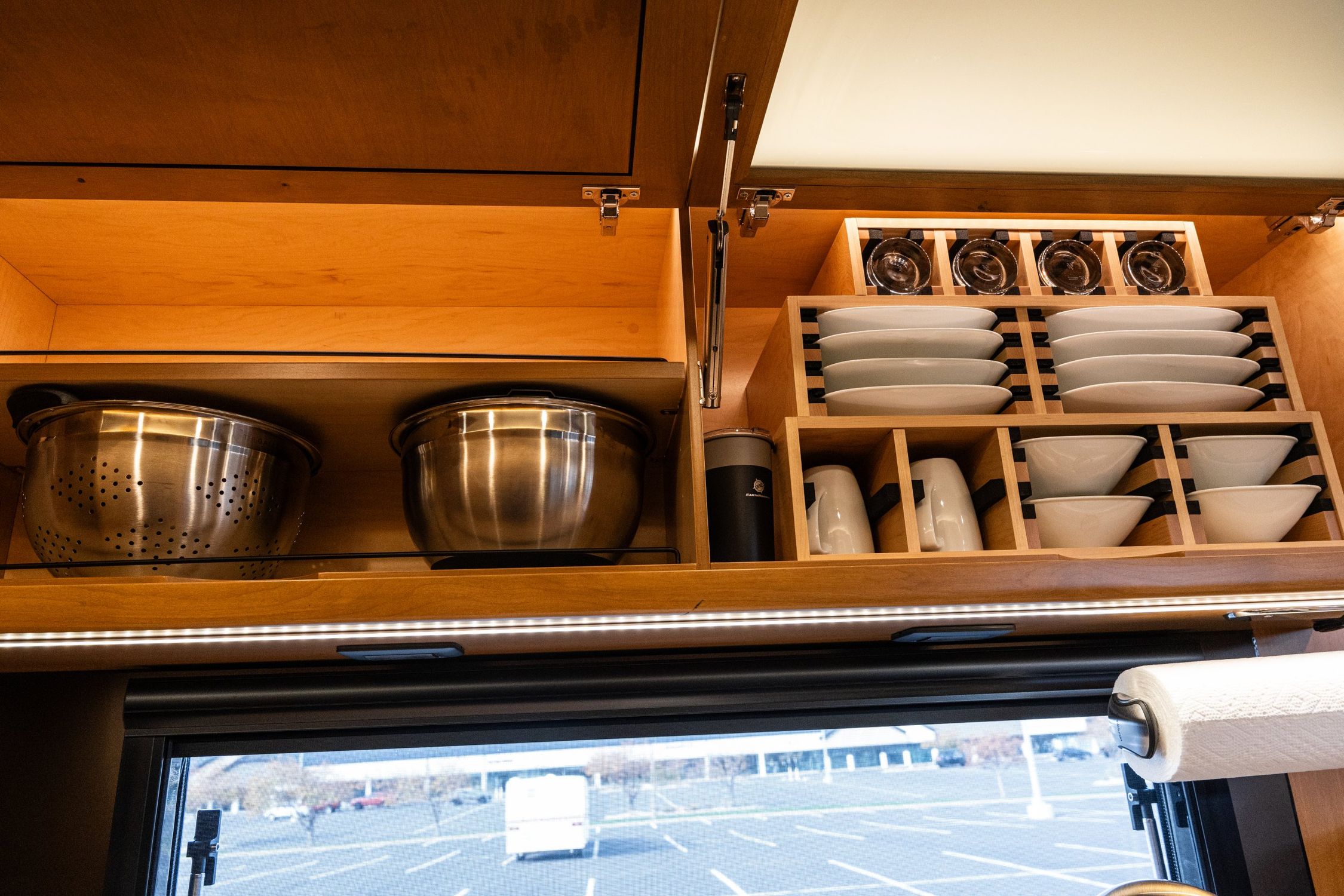

Galley

• Metal or tile backsplash

• >span class="elementor-icon-list-icon">

  Faucet with retractable sprayer

• Soap dispenser

• Slide out trash/storage system

• Collapsible broom with dustpan

• Quartz or granite countertop

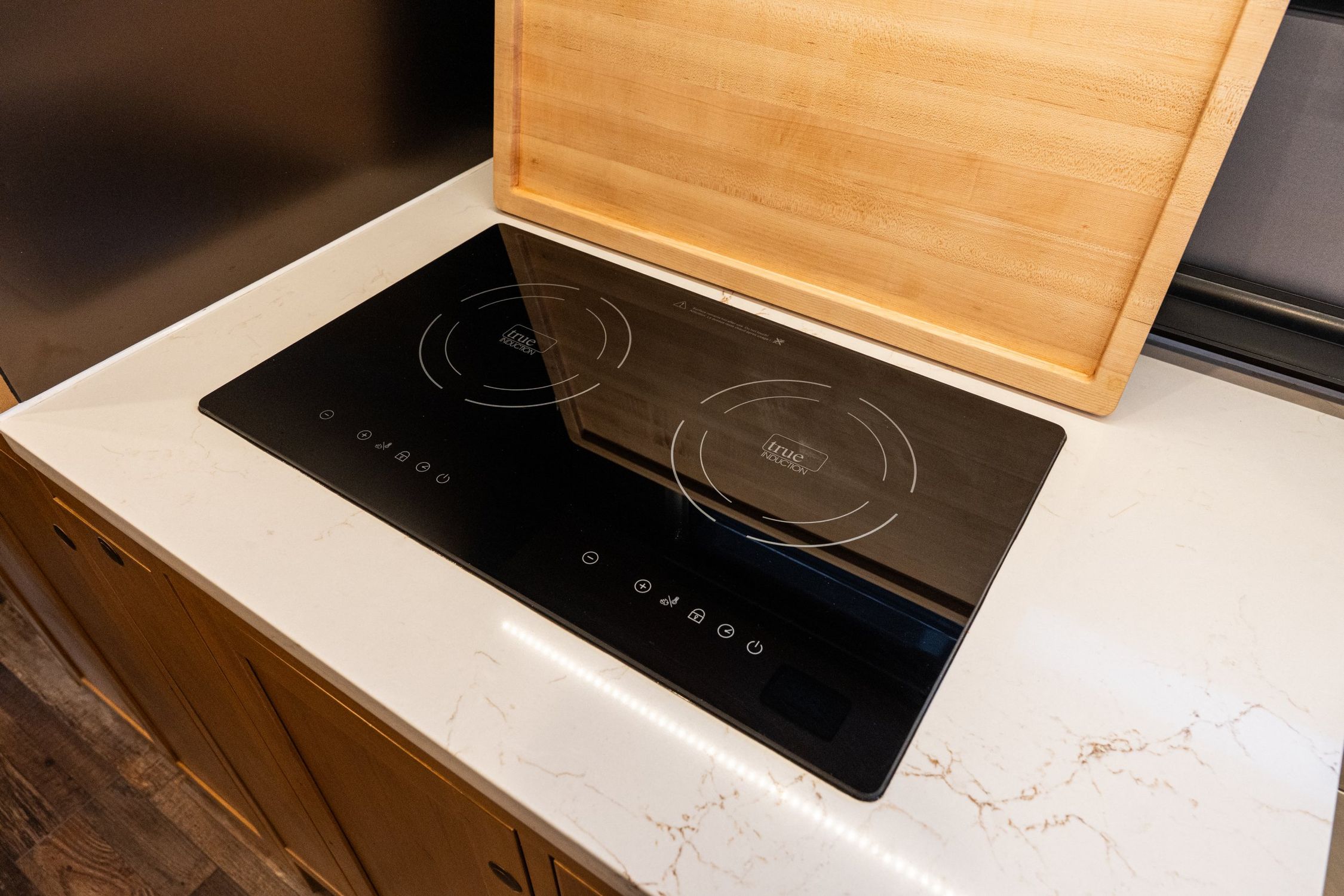

• Double burner induction cooktop

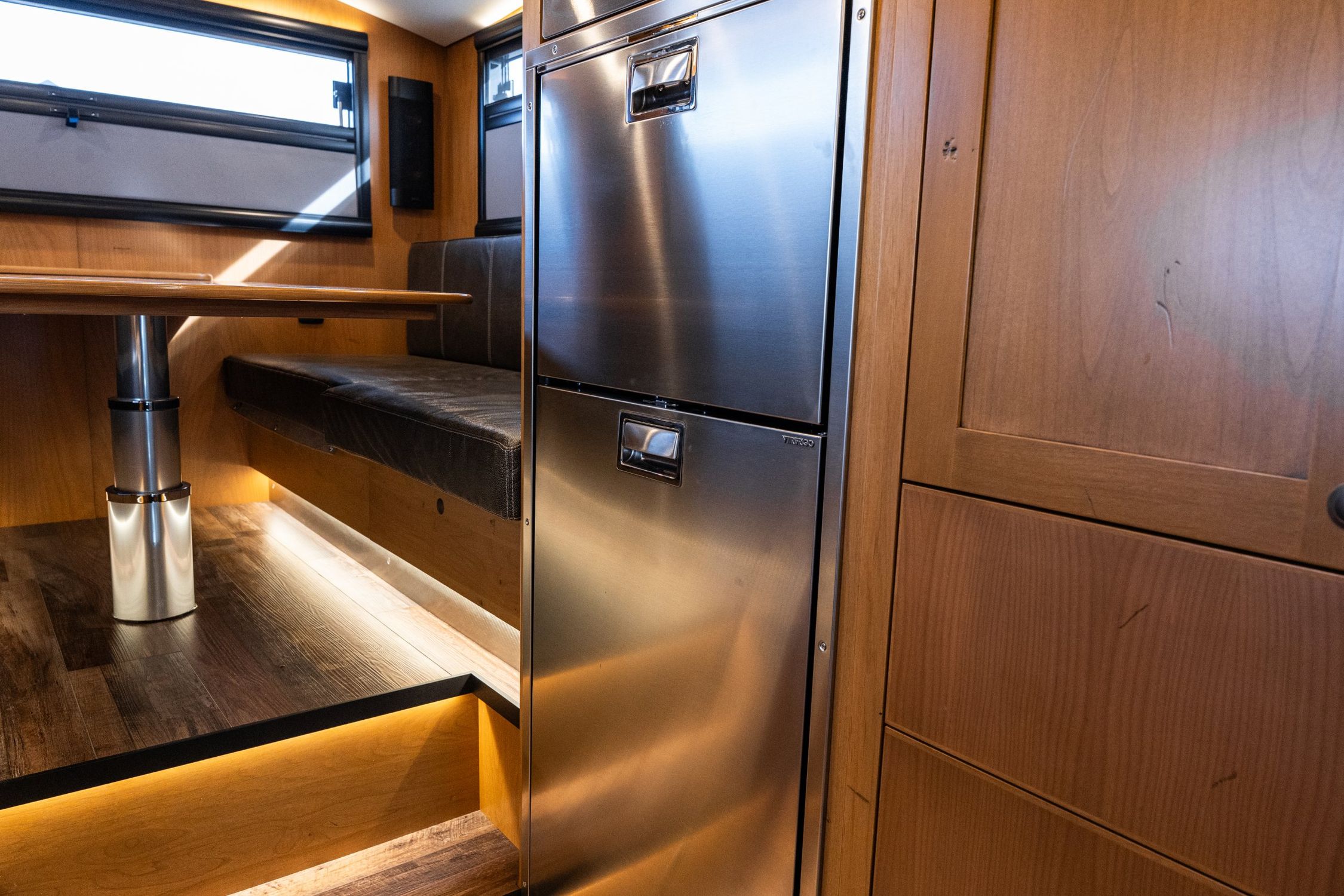

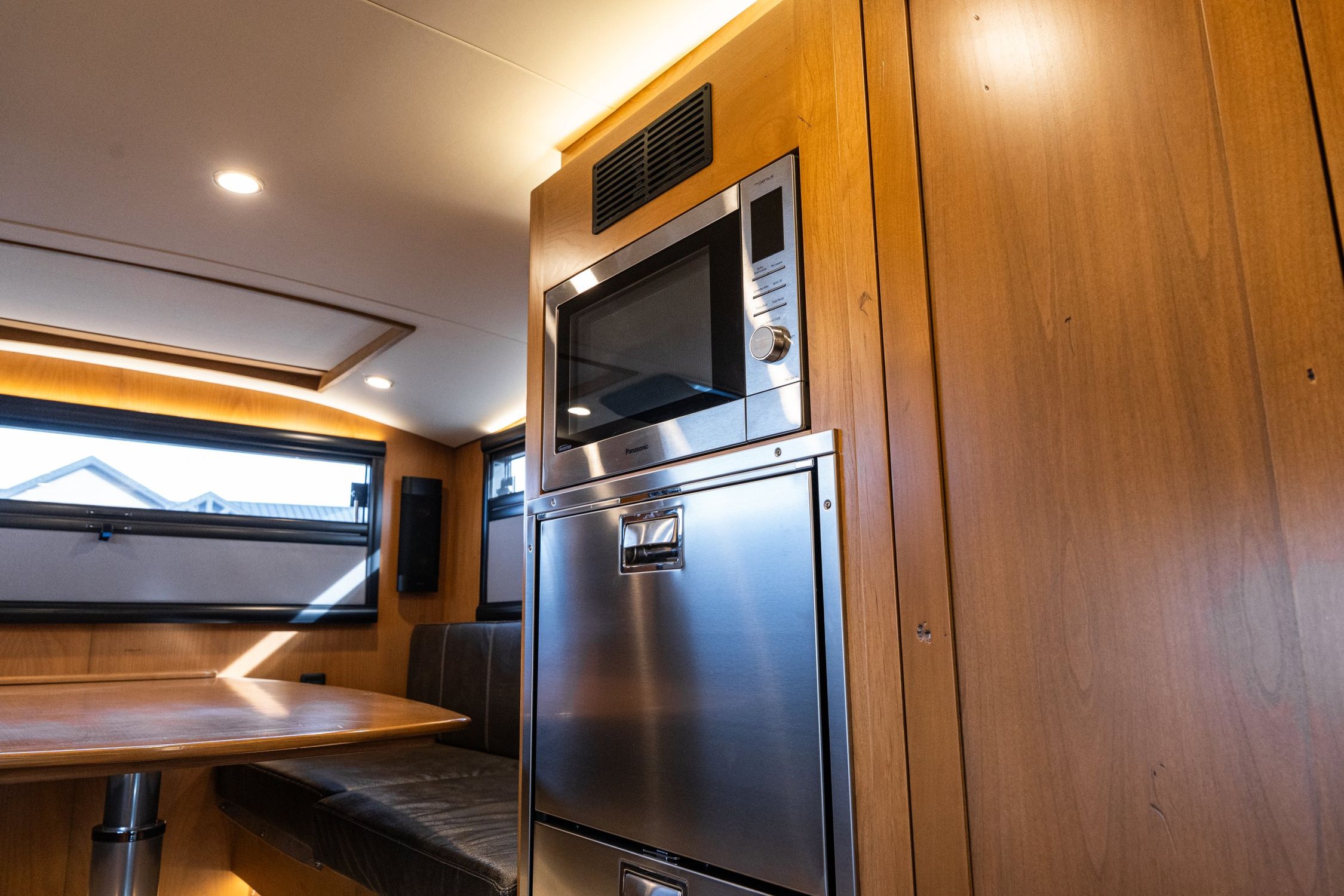

• 6 cubic foot stainless steel DC electric refrigerator w/2 cubic foot upper freezer

• 1.5 cubic foot stainless convection microwave

• Slide-out pantry w/adjustable shelving (dependent on floorplan/options)

• Paper towel holder and dish towel bar

• Instant Hot Water Tap Dispenser

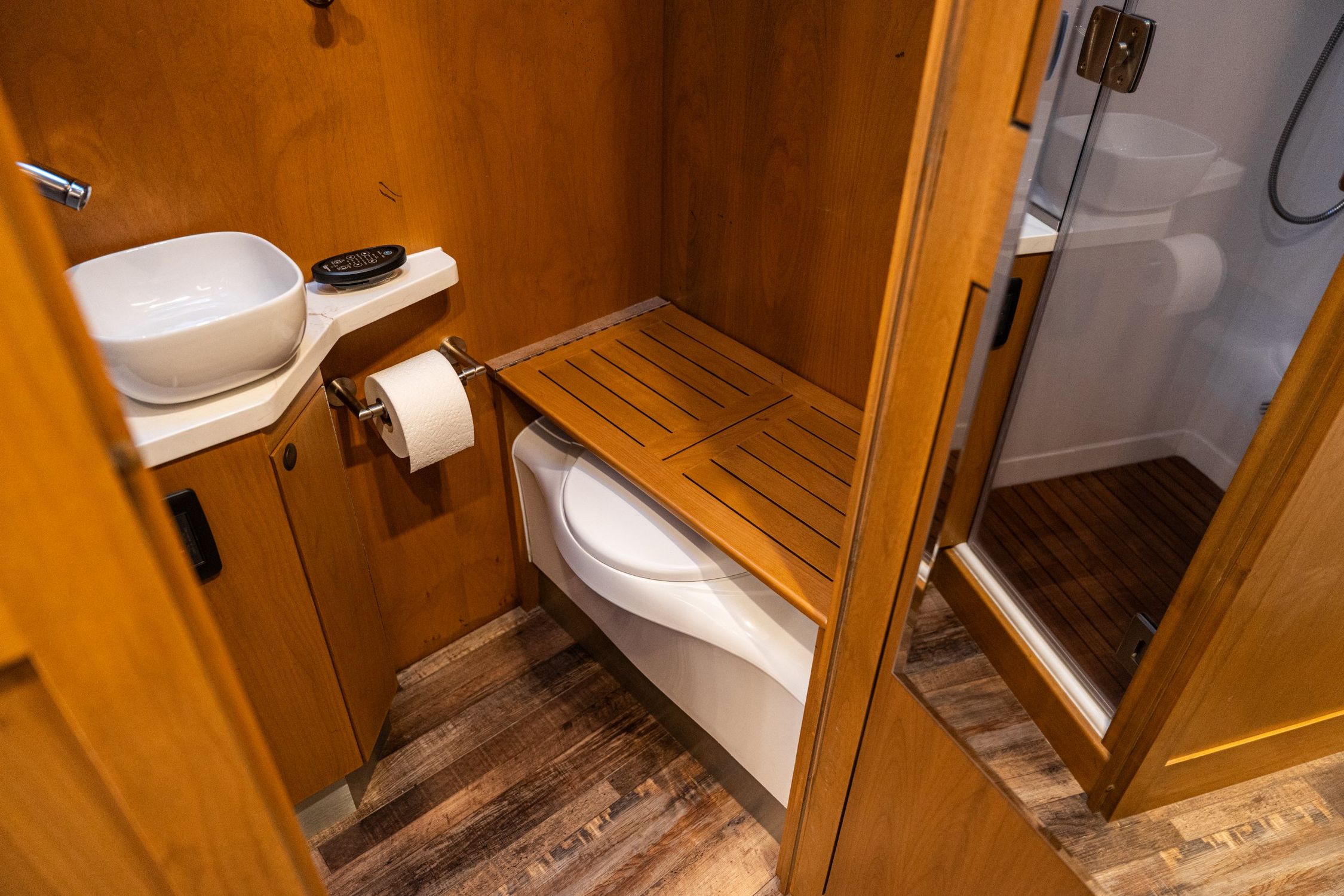

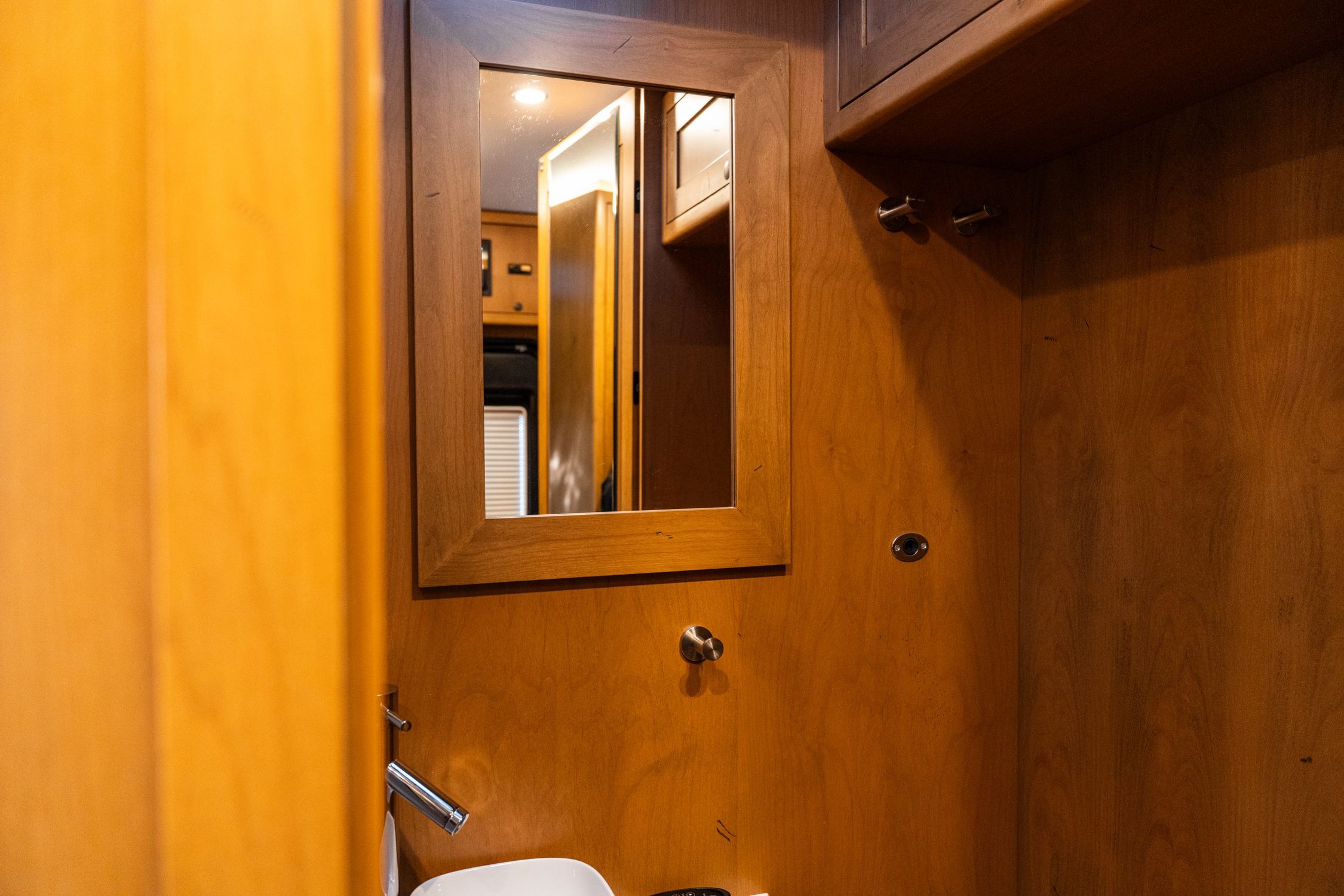

Bathroom

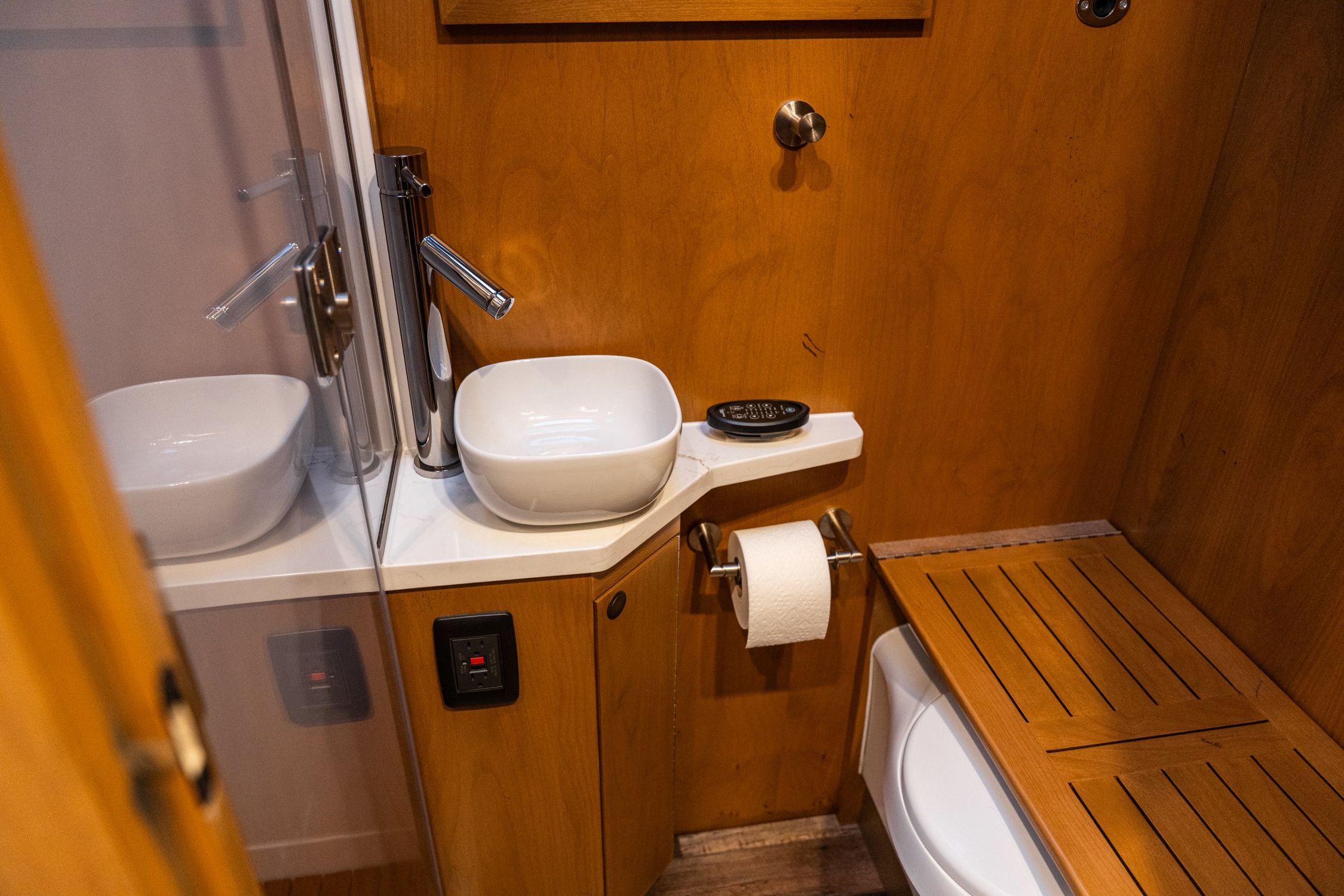

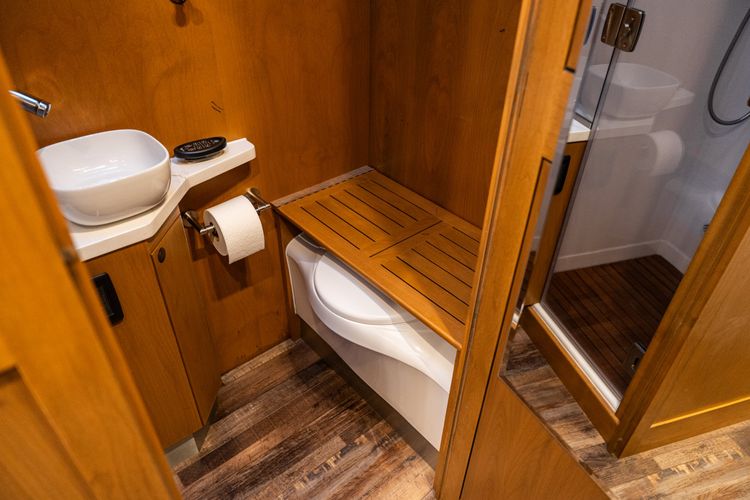

• Fully dry, enclosed bathroom with toilet

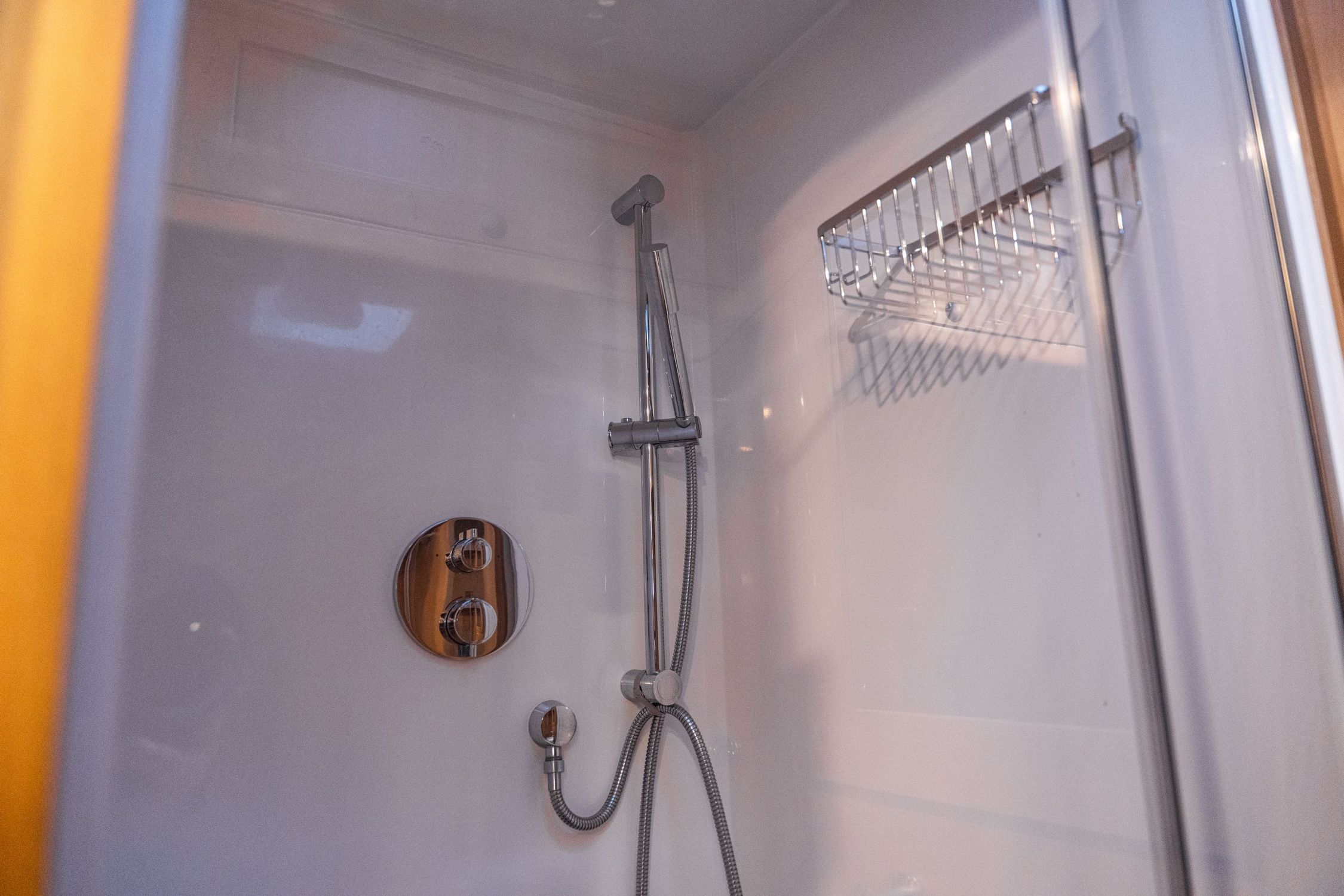

• Walk in Shower

• Vanity mirror

• Full size mirror

• Upper cabinet and vanity cabinet storage in dry bathroom

• Shower door

• Removable shower wand on height adjustable slide bar

• Rain Shower head

• Sink with premium fixtures

• Premium toilet paper holder

• Two (2) 5-gallon cassettes

• Retractable clothesline and towel hooks

• Shower toiletries shelf

• Variable speed exhaust fan

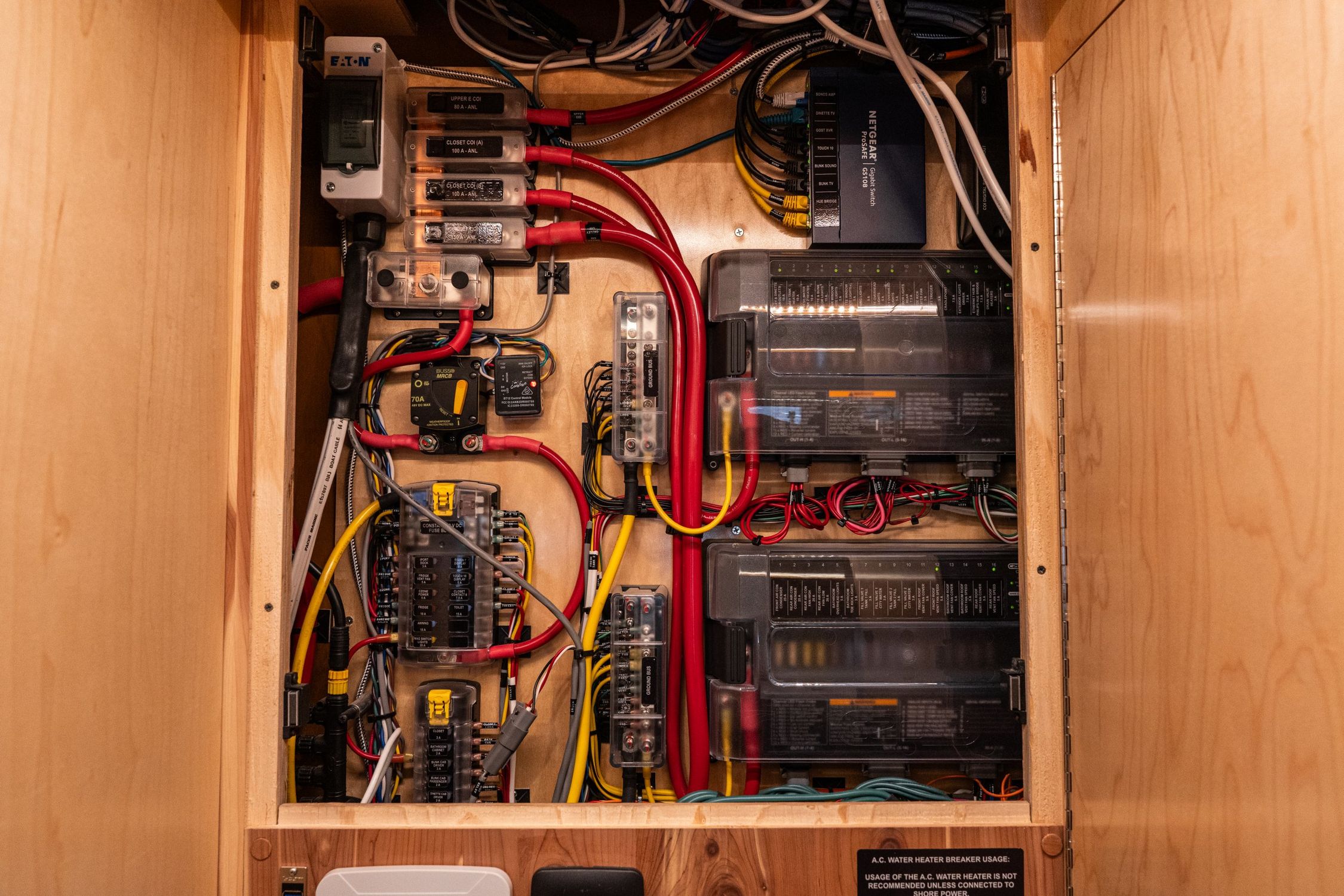

Electrical System

• 24 Kw hour lithium-ion battery bank

• Auto engine start charging system automatically starts engine when batteries are low

• 1,800 watts solar panel array with solar charge controller

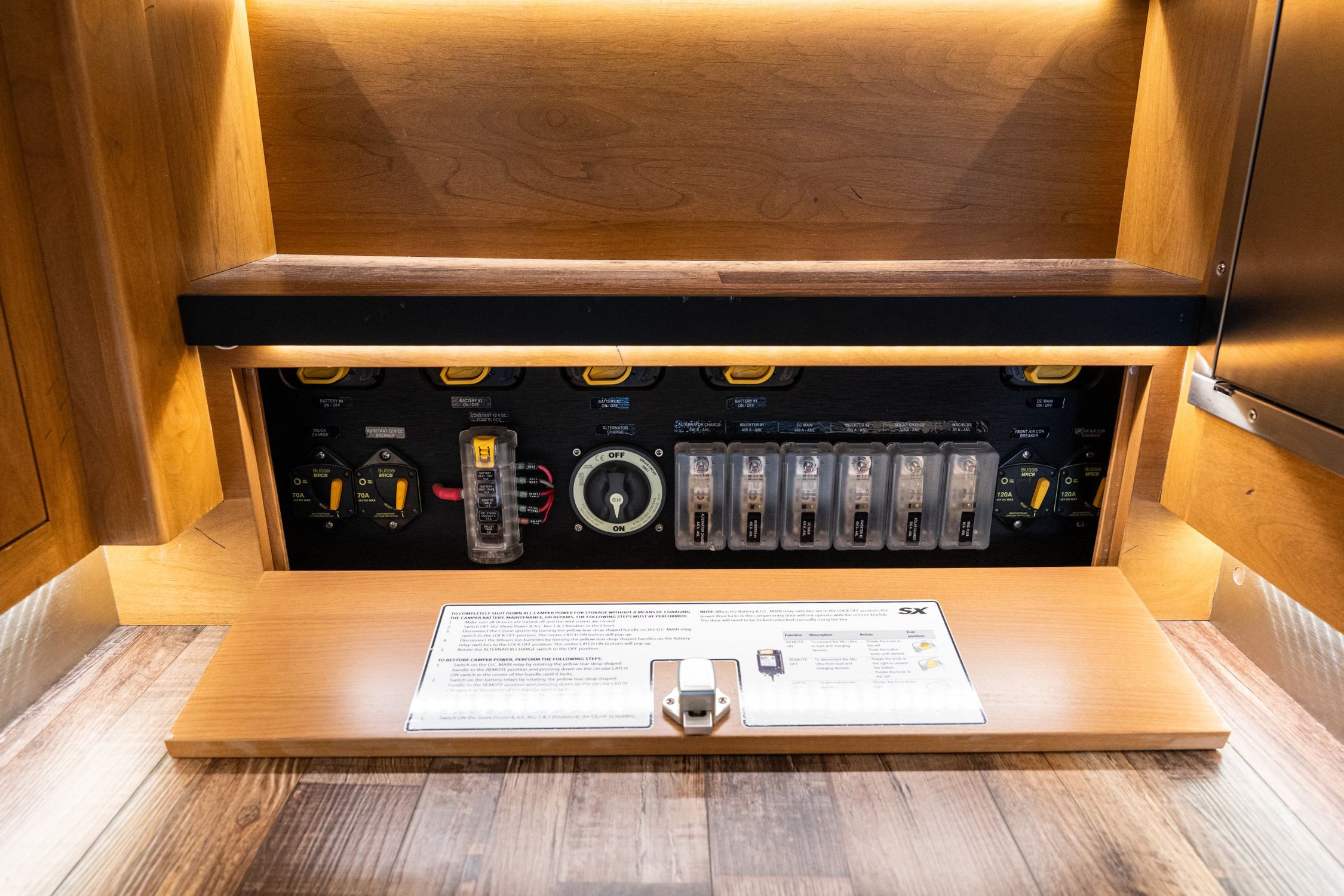

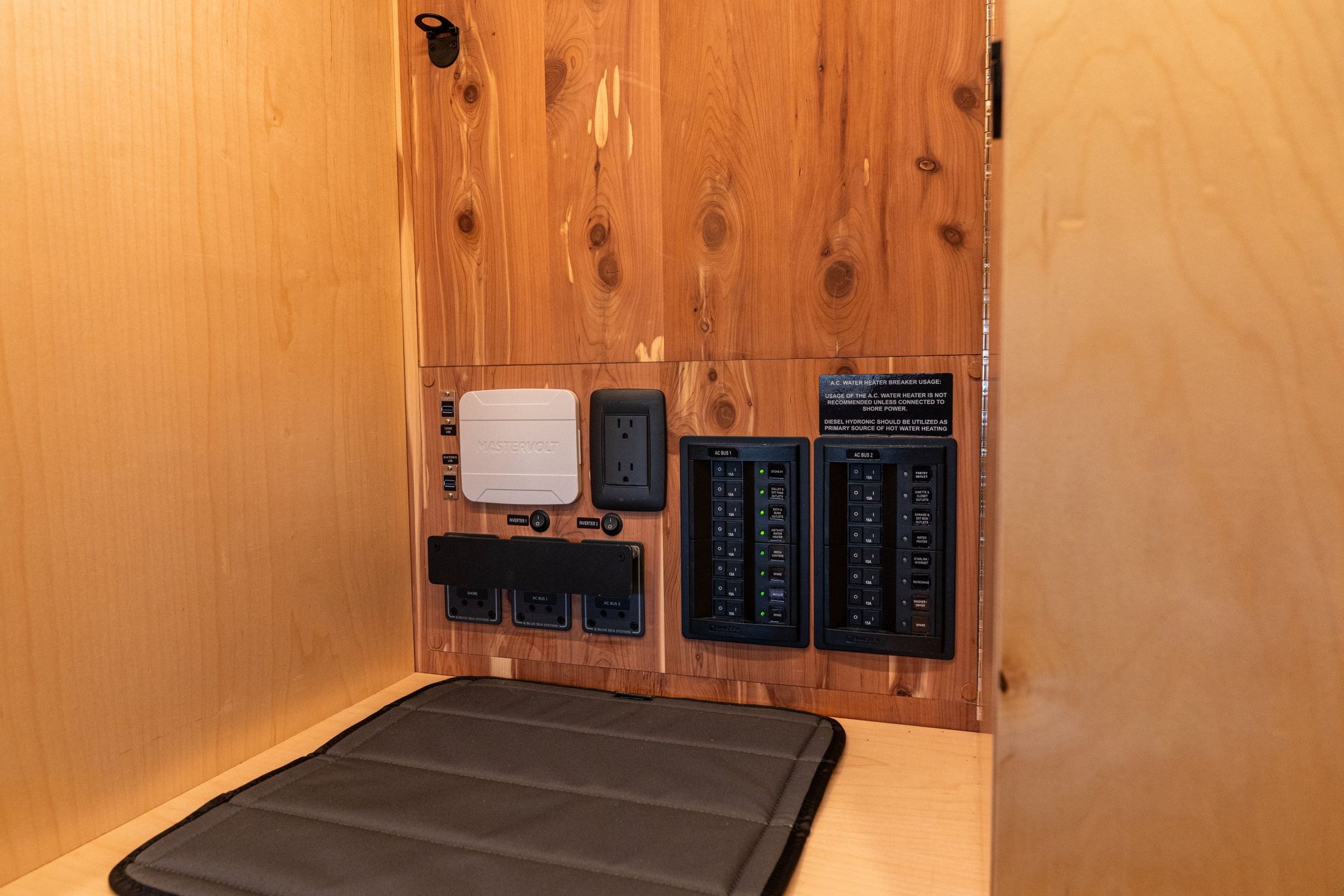

• Advanced digital control & monitoring network provides circuit protection and advanced control and monitoring of systems

• Inverter/charger system provides a total of 9000-watts inverter power and 230-amps battery charging

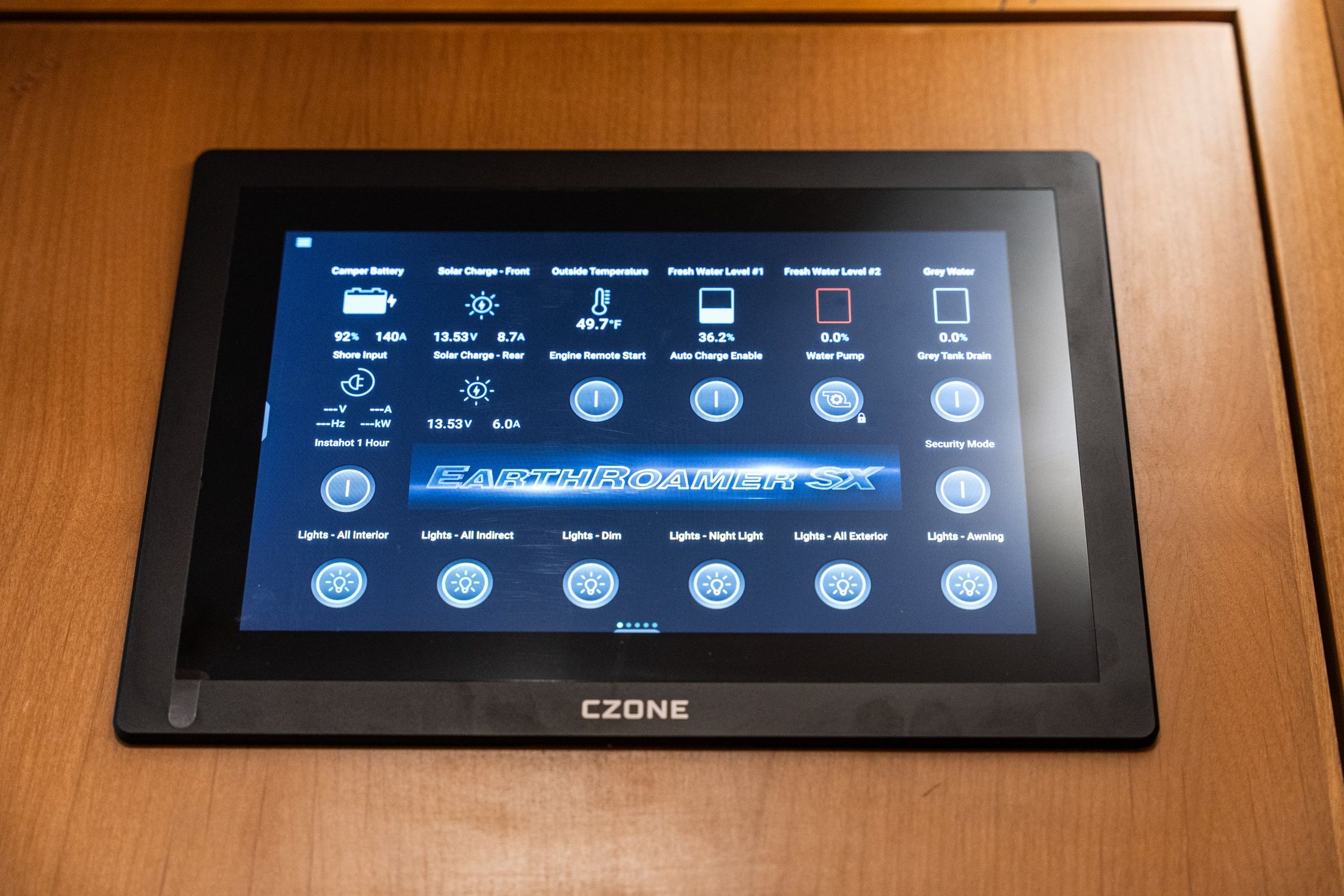

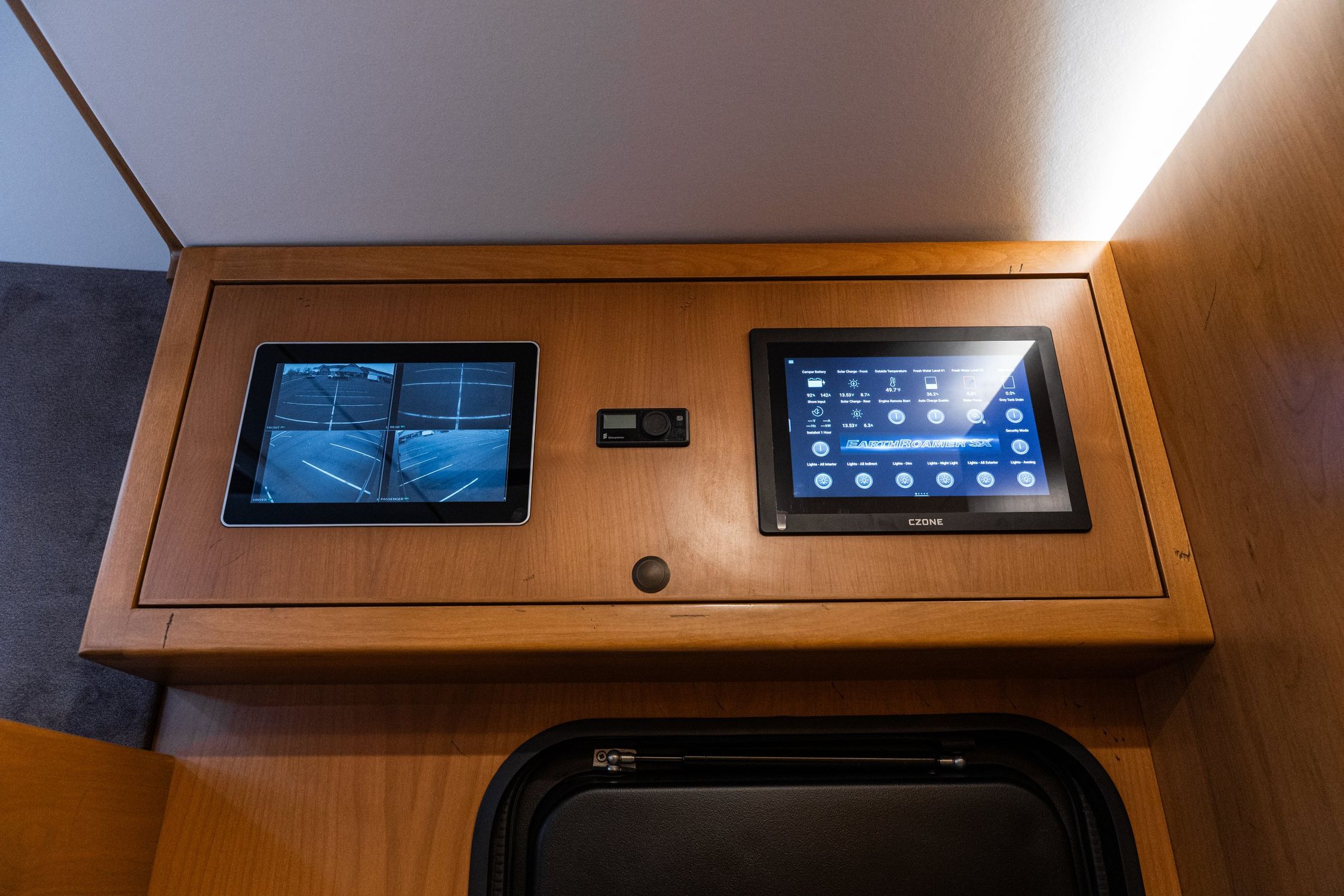

• Touch screen control panels provide system control and monitoring

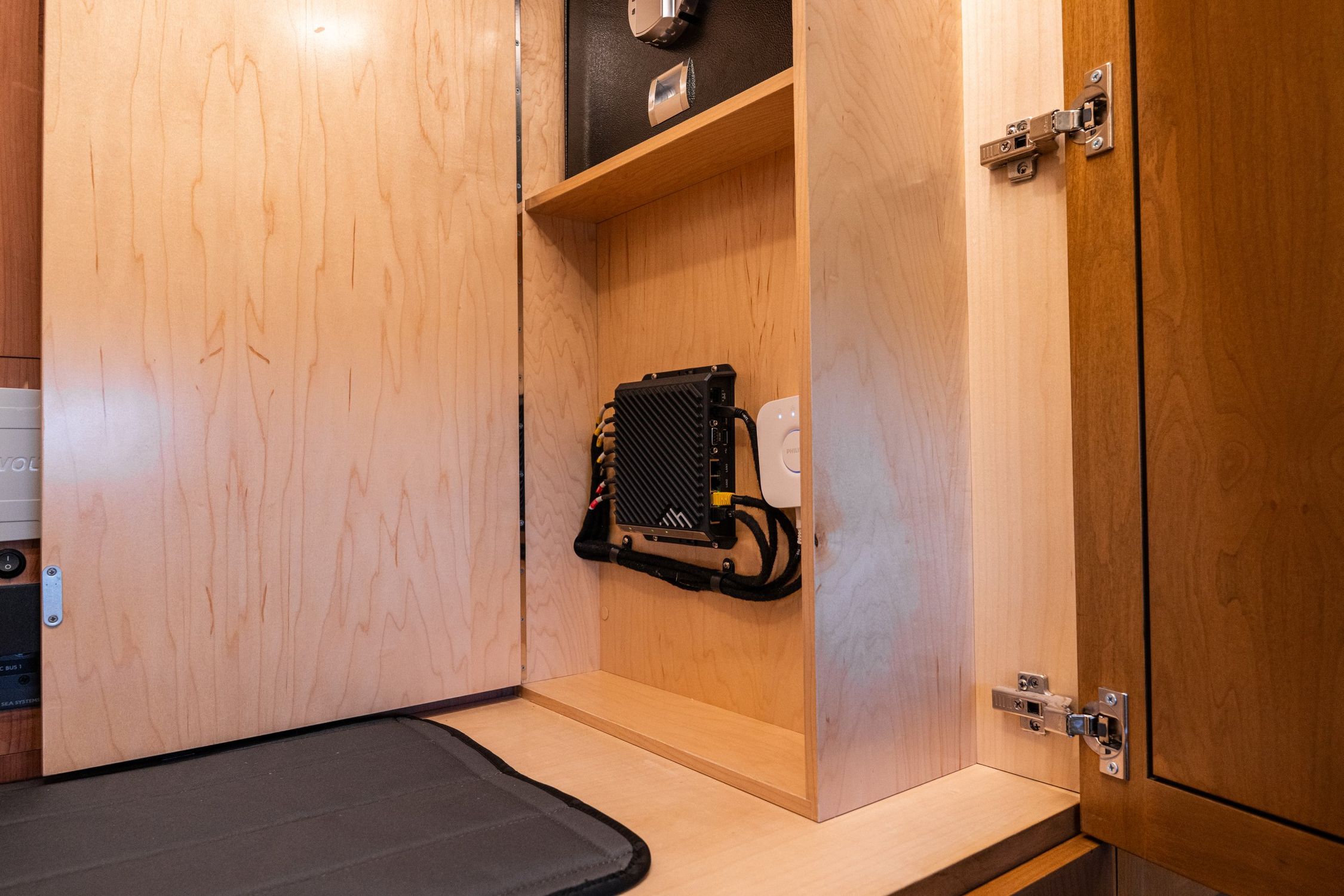

• 5G-ready Cellular WIFI Router with Wireless Hot Spot and Roof Mounted Antenna

• Integrated Starlink satellite internet

• Marine grade electrical components used throughout

• Marine grade wiring used throughout

• 120V AC outlets located in closet, lower galley, under galley upper cabinets, dinette living area, bathroom, and bunk (both sides)

• 12V DC outlets located at bunk, under galley upper cabinet, and in dinette living area

• 5V DC USB outlets located at bunk and dinette living area

• Wireless charging pad located at bunk

• 30 Amp AC shore power inlet

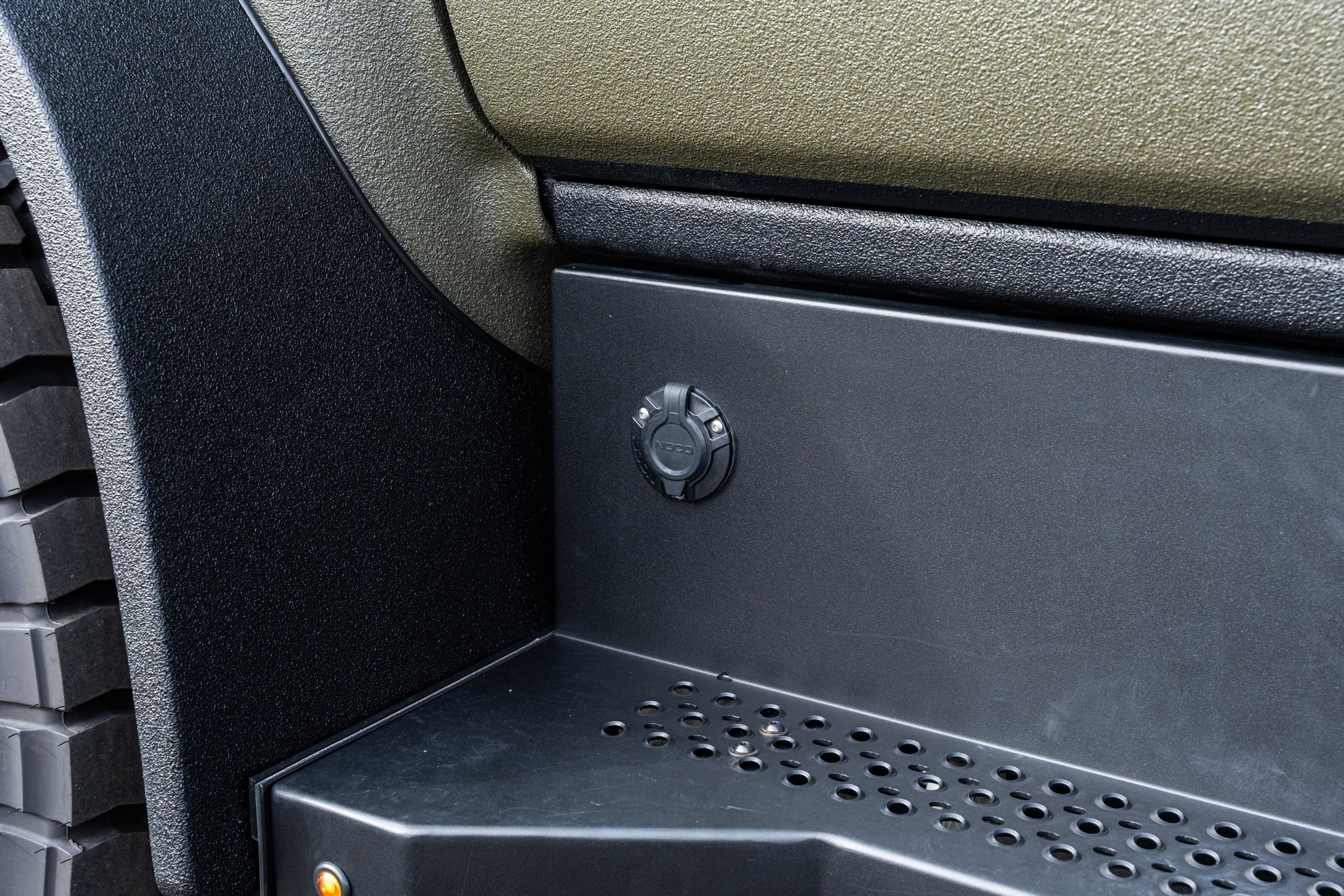

• 15 Amp AC exterior outlet

Heating, Ventilation, and Air Conditioning

• 13,500 BTU high efficiency air conditioner ducted to living area

• 13,500 BTU high efficiency air conditioner ducted to bunk area

• 7,500 BTU diesel air heater with digital thermostat ducted to living area

• Additional forced air heater

• Diesel Hydronic heater with digital timer and manual over-ride mode

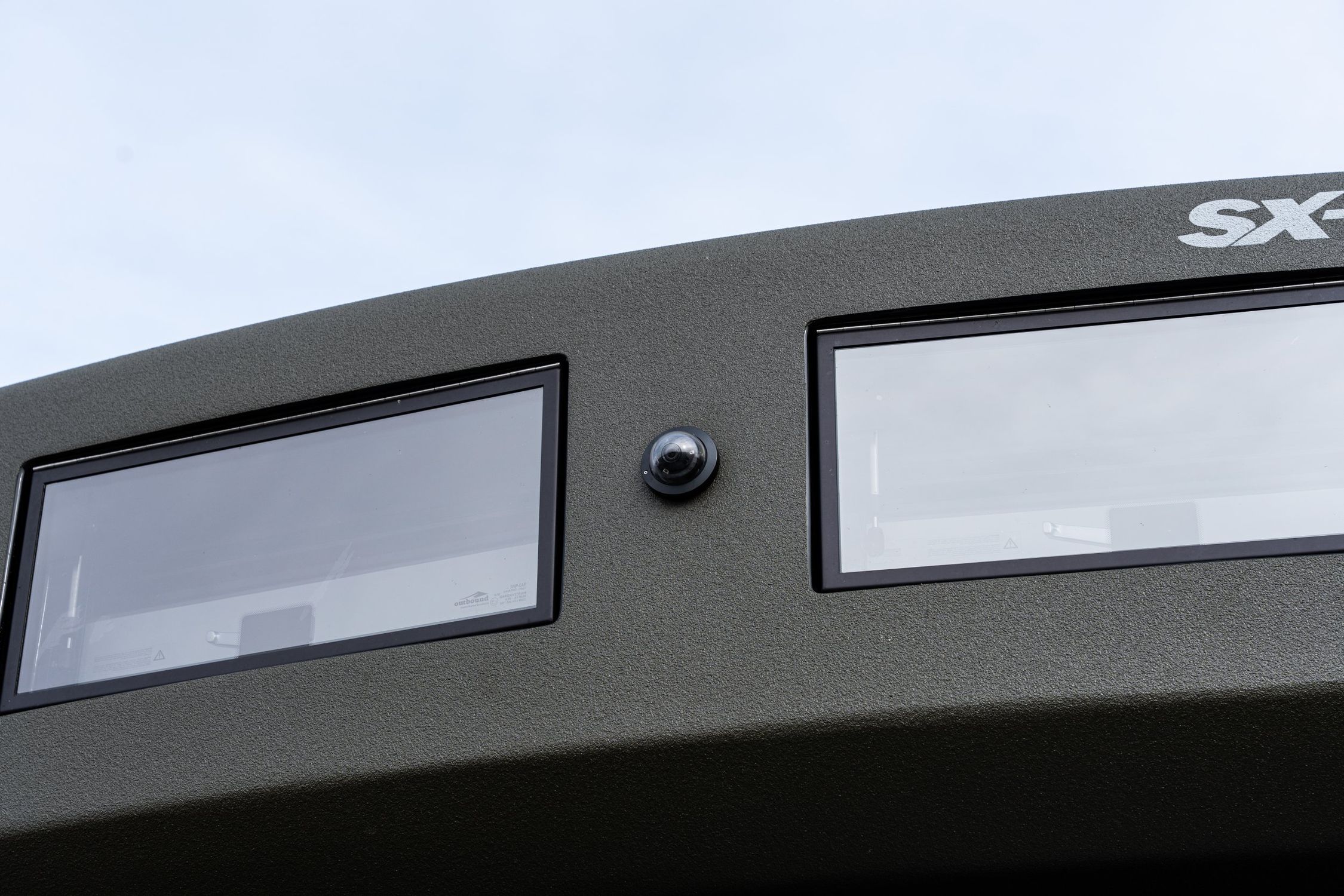

• Dual pane, flush mounted, fully opening, frameless glass windows with built in shades and bug screens

• Dual pane glass roof hatch with built in shades and bug screens, (provides access to roof)

• Three (3) thermostatically controlled, variable speed, rain-sensing, reversible fans

Plumbing

• 120 gallon insulated and heated fresh water holding tanks w/manual drain valve

• 55 gallon insulated grey water holding tank

• Electric fresh and grey tank drain system with remote access

• Fresh and grey tank monitoring system

• UV and particulate freshwater filtration system

• High-capacity water pump with intake screen

• Diesel Hydronic and electric heated 6-gallon hot water tank

• Exterior shower with hot and cold water and winterization valves

• Integrated Air pressure water blow-out system for easy winterization

Safety

• Carbon monoxide detector

• Smoke detector

• Fire extinguisher

• First Aid Kit

• Roadside safety kit

Accessories

• Flashlight mounted near entry door

• Tool bag with select spare parts and tools

• Fresh water hose

• Grey water hose

• Axe and shovel mounted in rear storage area

• 15-amp exterior AC outlet adapter

• 30-amp shore power cord and 15 Amp shore power adapter

• Soft and hard recovery shackles
